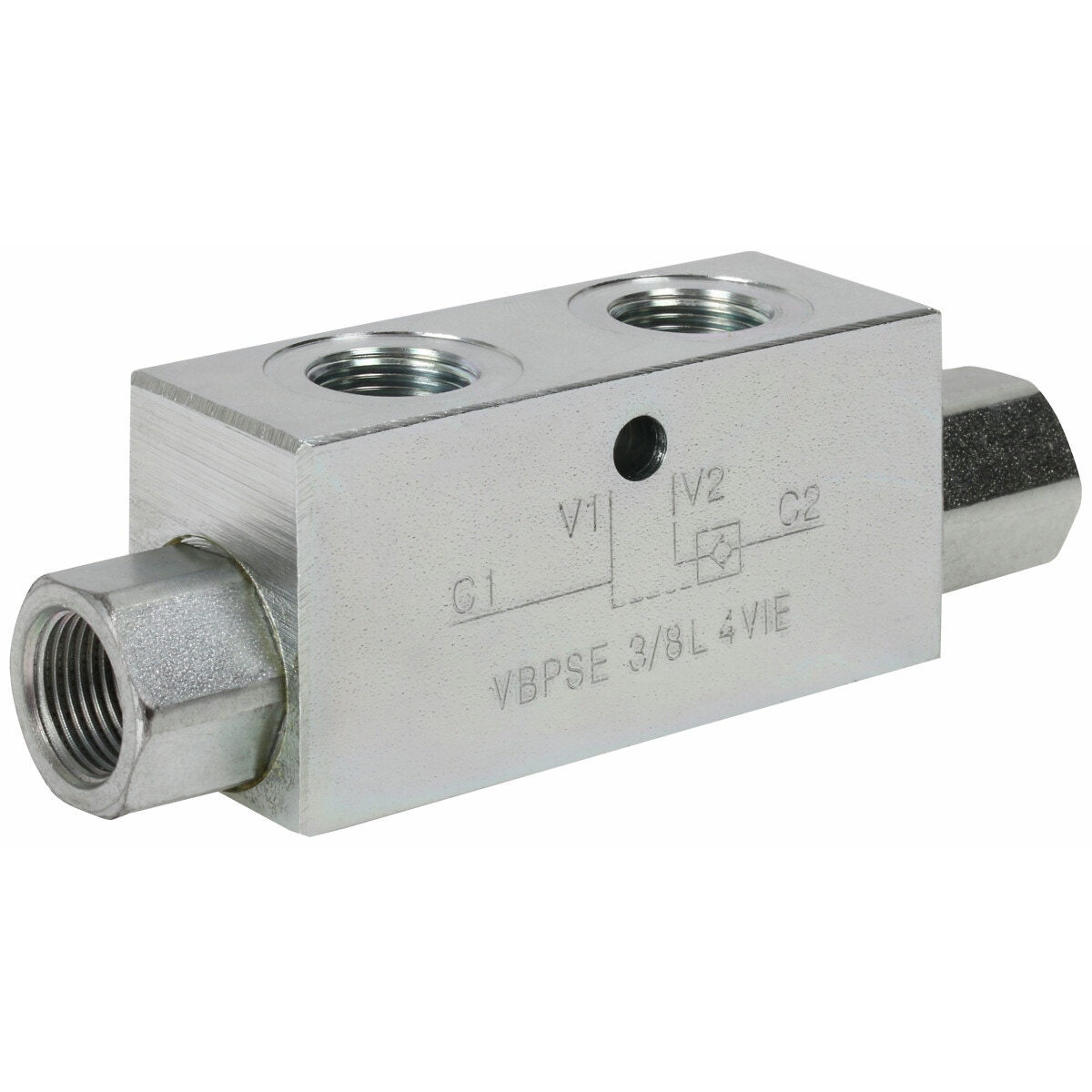

Atslēgvārsts ar pilota vadību 3/8

Description

type VBPSE L | single pilot operated check valves are used to block the cylinder in one direction | the flow is free in one direction and blocked in the reverse direction until pilot pressure is applied | material zinc plated steel | BunaN sealing | connection V1 V2: G 3/8" | connection C1 C2: G 3/8" | max. flow 35 l/min | max. pressure 350 bar | cracking pressure 3 bar | A 80 | B 120 | C 38 | D 16 | E 8 | H 40 | S 30

Attributes

Thread: G 3/8" -19 | Package length (cm): 12.1 | Package width (cm): 3 | Package height (cm): 4 | Gross weight (kg): 0.704000 | EAN: 6418914927995
