Plūsmas regulēšanas vārsts ar check 1 150l 350bar

Description

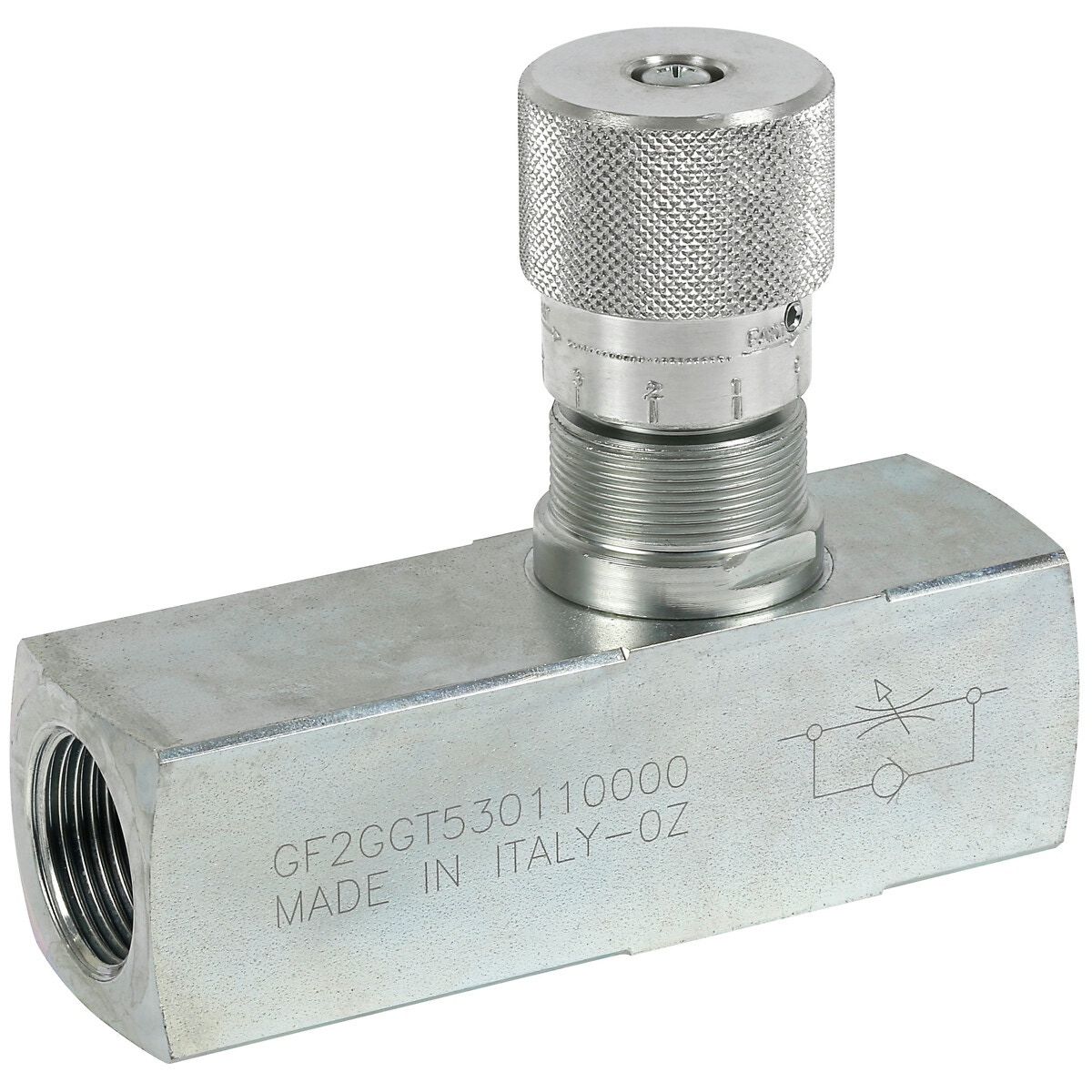

type RF | DIN ISO 228 BSP | flow regulator valve is used to adjust flow speed of actuators in one direction; flow is free in the reverse one | flow adjustment is made by rotating the hand knob after loosening the side locking screw | material carbon steel | hose DN 25 | connection G 1" | max. flow 150 l/min | max. pressure 350 bar | weight 2,1 kg | A 45 | B 22,5 | C 141 | G 45 | ØH 42 | I 115 | L 24 | ØM G 1" | ØN M35x1,5

Attributes

Thread: G 1" -11 | Package length (cm): 14.2 | Package width (cm): 4.4 | Package height (cm): 11.5 | Gross weight (kg): 1.983000 | EAN: 6418914961685
