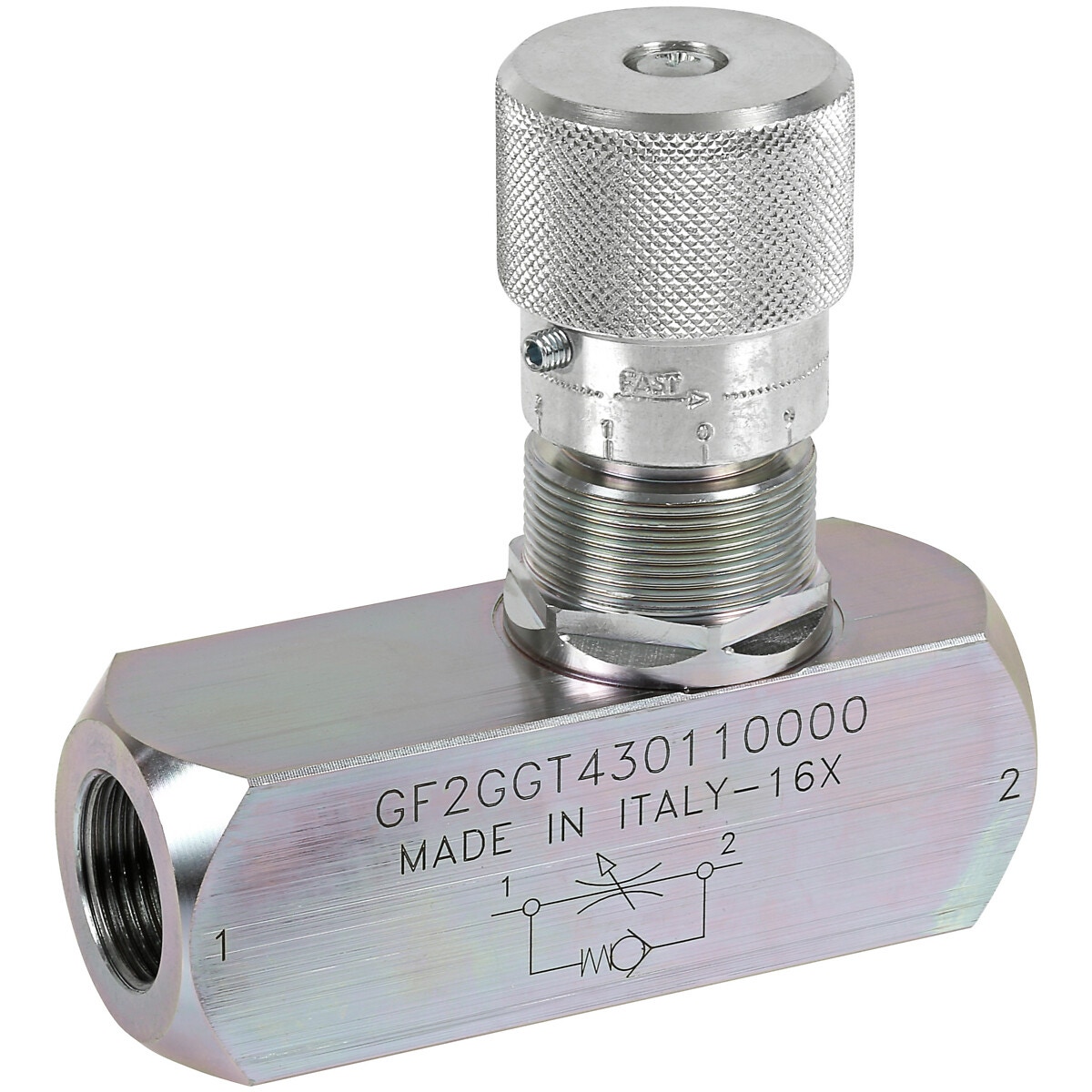

Plūsmas regulēšanas vārsts ar check 3/4 80l 350bar

Description

type RF | DIN ISO 228 BSP | flow regulator valve is used to adjust flow speed of actuators in one direction; flow is free in the reverse one | flow adjustment is made by rotating the hand knob after loosening the side locking screw | material carbon steel | hose DN 20 | connection G 3/4" | max. flow 80 l/min | max. pressure 350 bar | weight 1,5 kg | A 40 | B 20 | C 112,5 | G 40 | ØH 42 | I 110 | L 21 | ØM G 3/4" | ØN M25x1,5

Attributes

Thread: G 3/4" -14 | Package length (cm): 11.1 | Package width (cm): 4 | Package height (cm): 11 | Gross weight (kg): 1.405000 | EAN: 6418914961678
