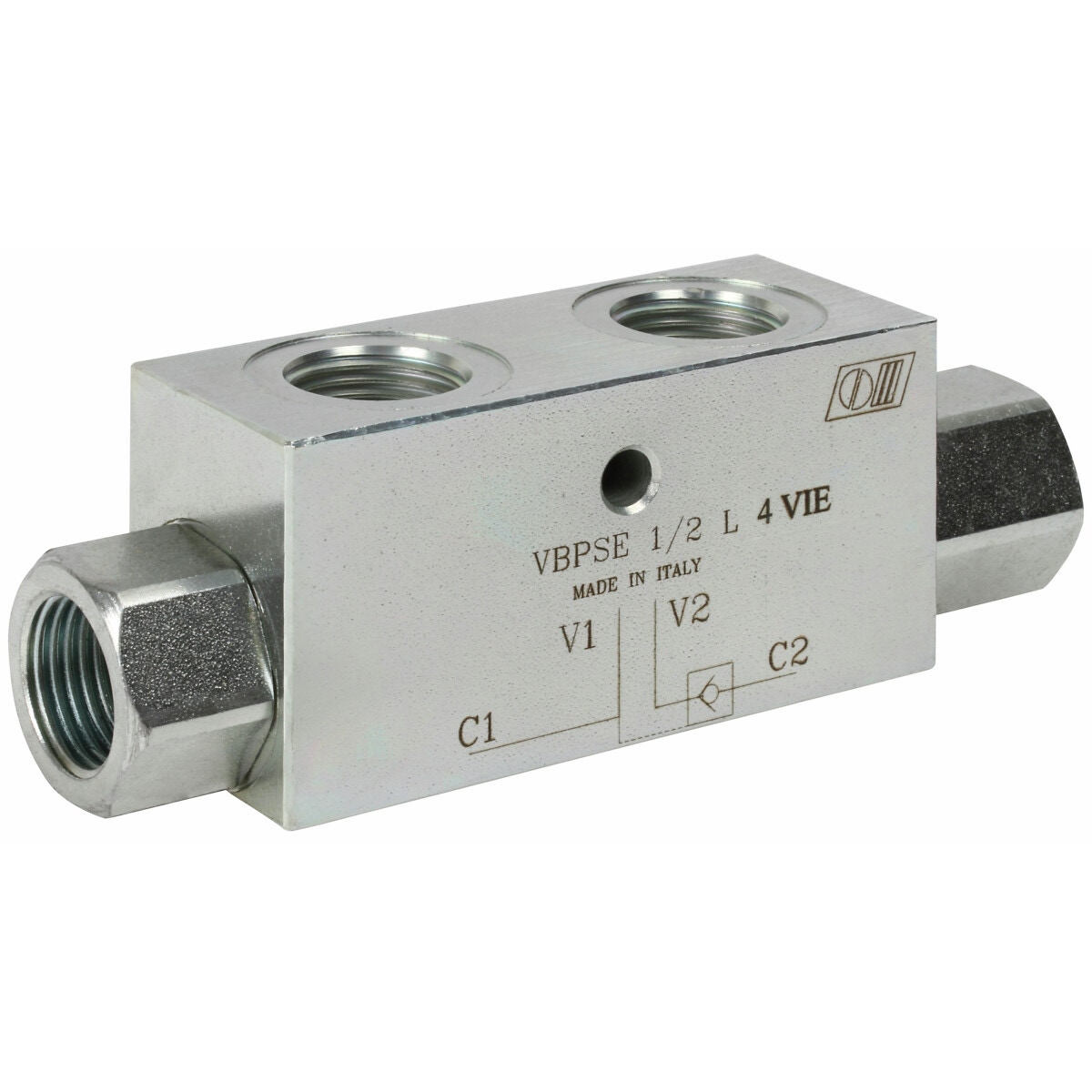

Atslēgvārsts ar pilota vadību 1/2

Description

type VBPSE L | single pilot operated check valves are used to block the cylinder in one direction | the flow is free in one direction and blocked in the reverse direction until pilot pressure is applied | material zinc plated steel | BunaN sealing | connection V1 V2: G 1/2" | connection C1 C2: G 1/2" | max. flow 50 l/min | max. pressure 350 bar | cracking pressure 6 bar | A 90 | B 133 | C 45 | D 17 | E 12,5 | H 40 | S 35

Attributes

Thread: G 1/2" -14 | Package length (cm): 13.4 | Package width (cm): 3.5 | Package height (cm): 4.5 | Gross weight (kg): 1.014000 | EAN: 6418914928008
