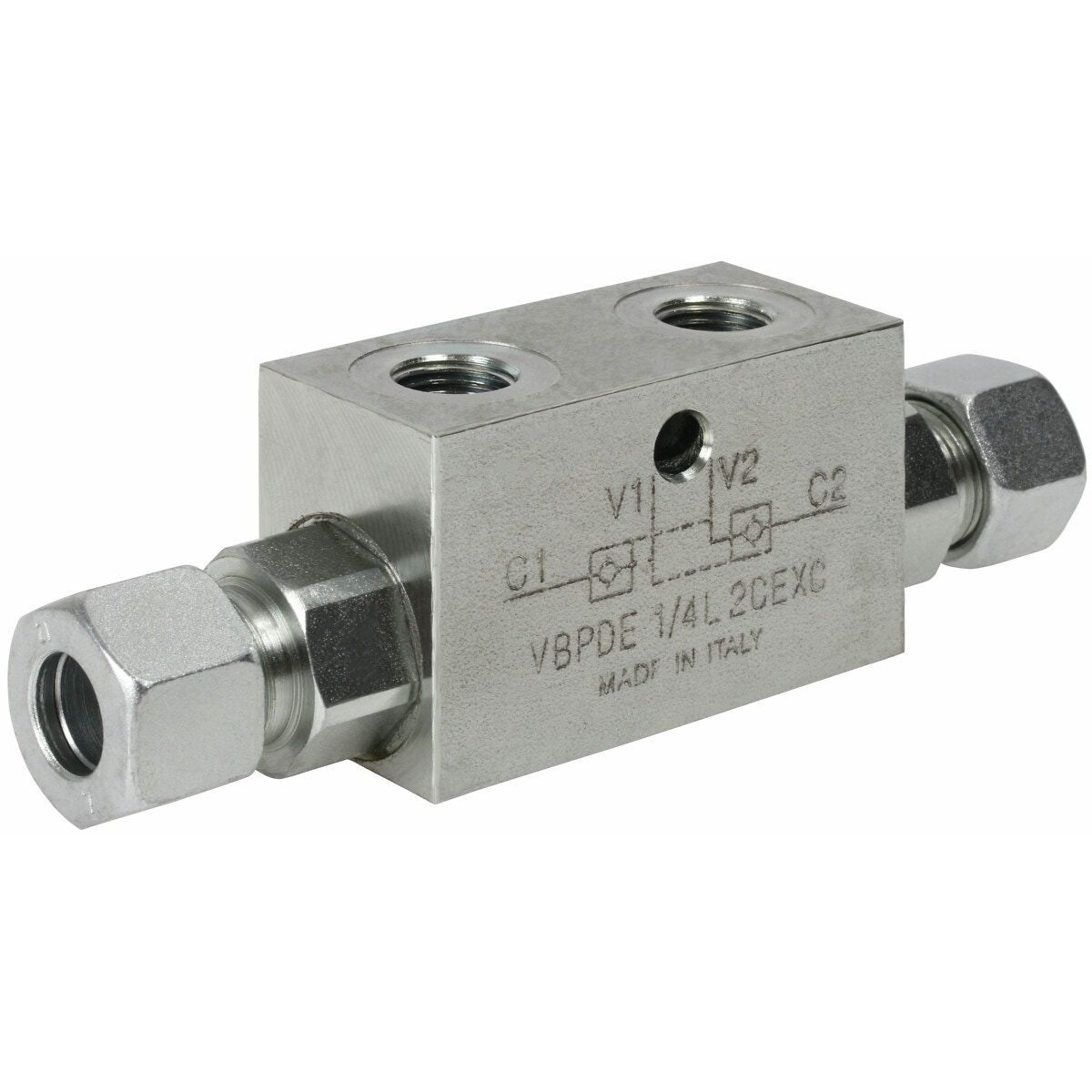

Divkāršais pilotvārsts ar atpakaļvārstu 1/4 l12
43 €
✓ Pieejams
Description
type VBPDE L 2 CEXC | pipe mounting DIN 2353 | double pilot operated check valves are used to block the actuator in both directions | flow is free in one direction and blocked in the reverse direction until pilot pressure is applied | material zinc plated steel | BunaN sealing | connection V1 V2: G 1/4" | connection C1 C2: 12L | max. flow 20 l/min | max. pressure 350 bar | cracking pressure 4 bar | A 64 | B 130 | C 36 | D 160 | E 84 | H 40 | S 30
Attributes
Thread: G 1/4" -19 | Package length (cm): 13 | Package width (cm): 3 | Package height (cm): 4 | Gross weight (kg): 0.654000 | EAN: 6418914928572
