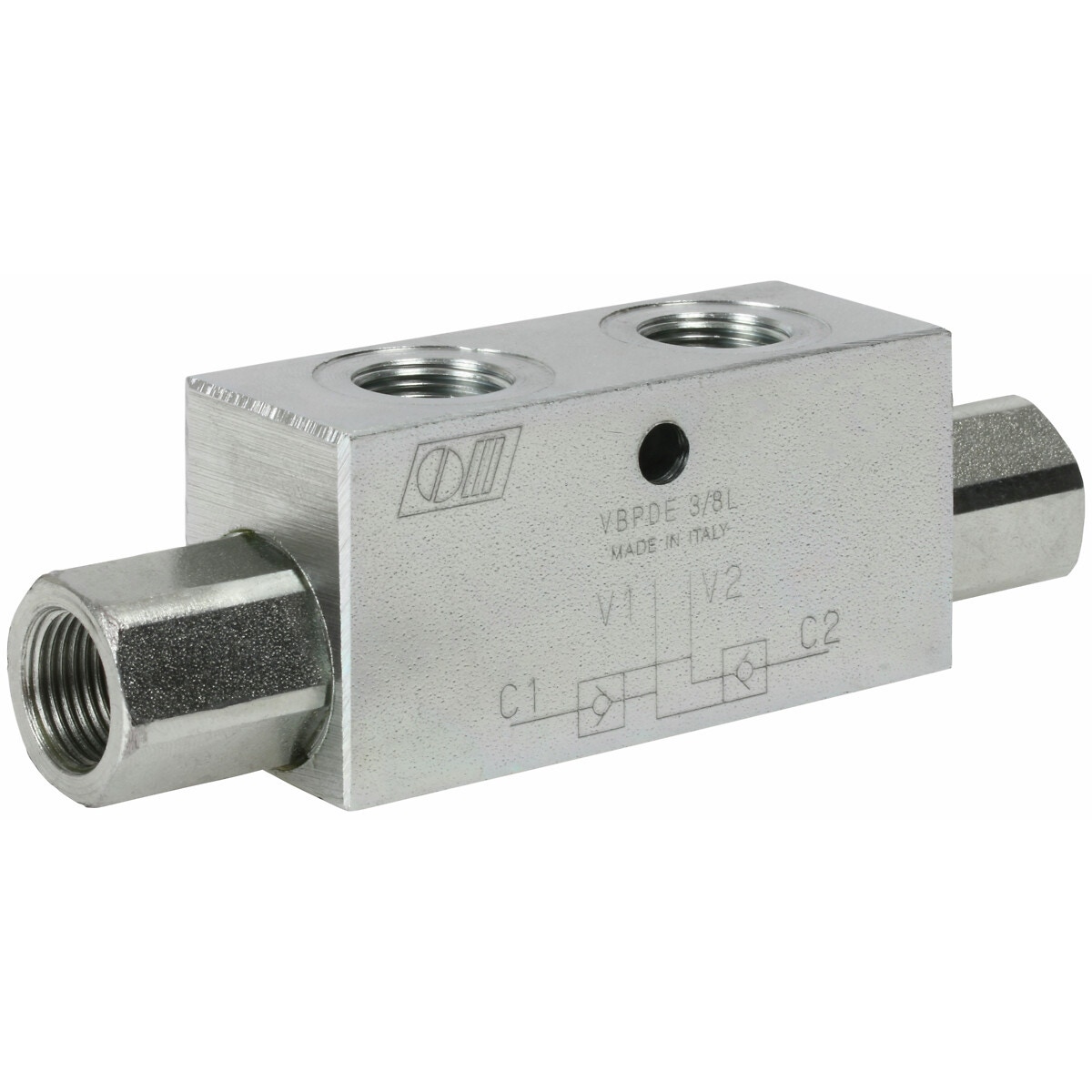

Divkāršais pilota vadīts pretvārsts 3/8

Description

type VBPDE L | double pilot check valves are use to block the cylinder in both directions | flow is free in one direction and blocked in the reverse direction until pilot pressure is applied | material zinc plated steel | BunaN sealing | connection V1 V2: G 3/8" | connection C1 C2: G 3/8" | max. flow 35 l/min | max. pressure 350 bar | cracking pressure 3 bar | A 80 | B 128 | C 38 | D 8 | H 40 | S 30

Attributes

Thread: G 3/8" -19 | Package length (cm): 12.9 | Package width (cm): 3 | Package height (cm): 4 | Gross weight (kg): 0.734000 | EAN: 6418914928541
