Divkāršais kontrolvārsts ar pilota vadību 1/2

Description

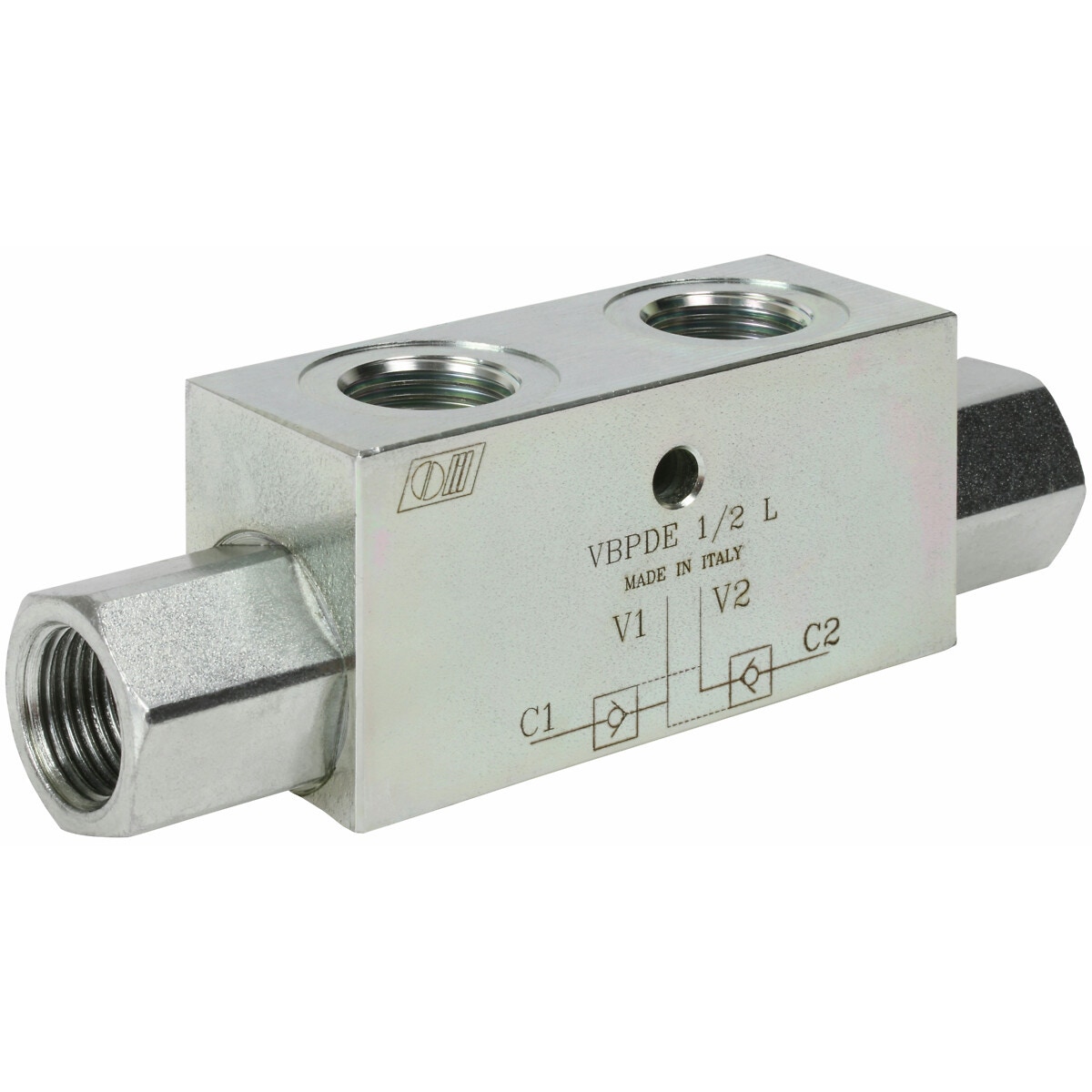

type VBPDE L | double pilot check valves are use to block the cylinder in both directions | flow is free in one direction and blocked in the reverse direction until pilot pressure is applied | material zinc plated steel | BunaN sealing | connection V1 V2: G 1/2" | connection C1 C2: G 1/2" | max. flow 50 l/min | max. pressure 350 bar | cracking pressure 6 bar | A 90 | B 142 | C 45 | D 12,5 | H 45 | S 35

Attributes

Thread: G 1/2" -14 | Package length (cm): 14.3 | Package width (cm): 3.5 | Package height (cm): 4.5 | Gross weight (kg): 1.064000 | EAN: 6418914928558
