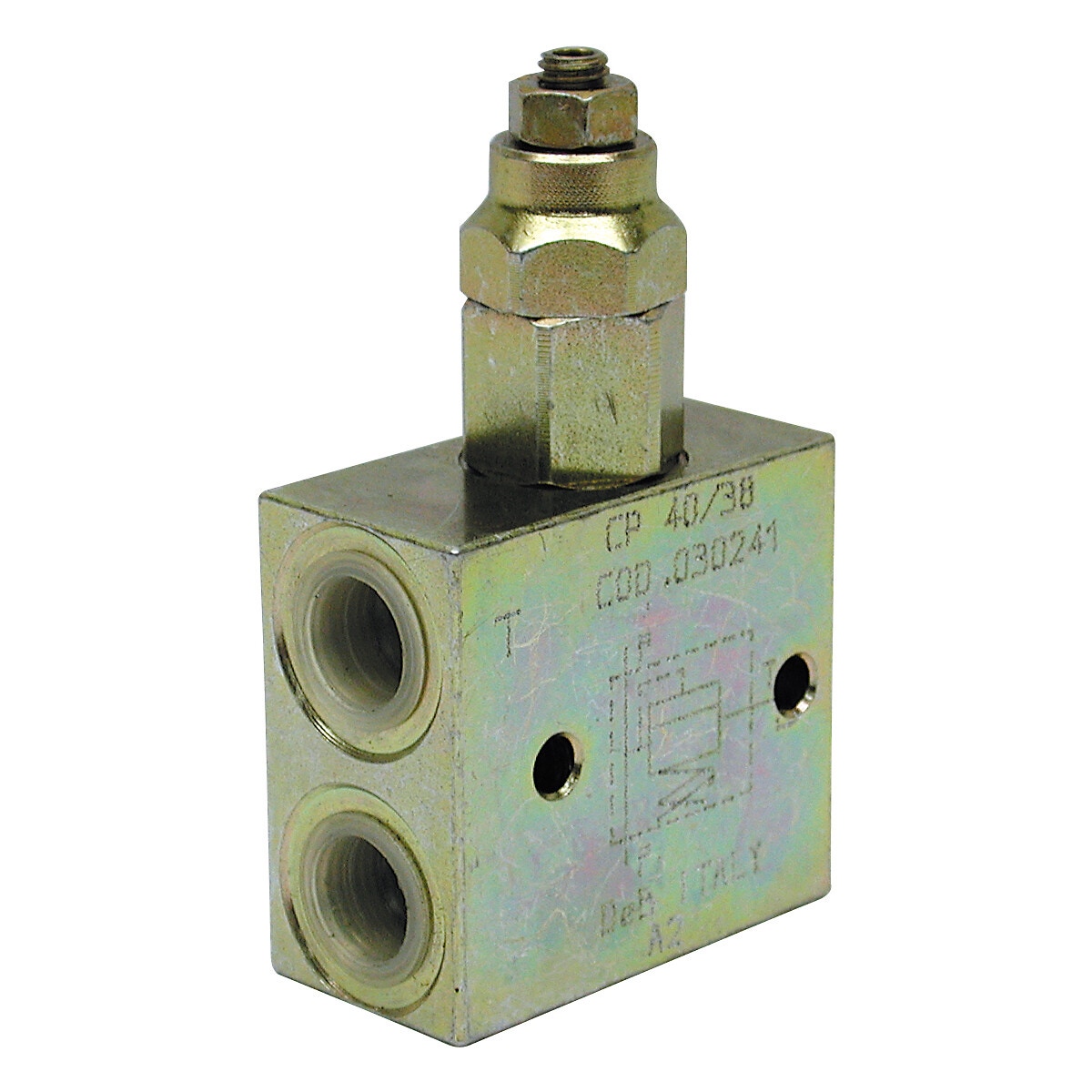

Release/anti-tip valve 3/8″ 40l

Description

steel body | the models CP/D/L, CP/DI and CP/DD cushion valves are designed to eliminate or minimize shock, surge and overload conditions on hydraulic equipment | they may be used with one or more cylinders (of equal displacement) in a multiple hydraulic circuit-regulating surge pressure without disturbing pressure demands of any other cylinder in the system | under standard conditions, when a control valve is in neutral or hold position, the excess pressure created by overload, shock or stress has no possibility of relief through the primary relief valve | cushion valves located between control valve and cylinders minimize or eliminate this condition | sudden shock experienced in starting and stopping hydraulic motors may also be controlled by the same installation | the need for an anti-cavitation check is eliminated | relieved oil is directed into the opposite side of the cushion valve preventing cylinder or motor cavitation | model CP40 / 38U | max. flow 40 l/min | thread P-T 3/8"R | A: 60 mm | B: 55 mm | C: 30 mm | D: 48 mm | E: 43 mm | F: 6,25 mm

Attributes

Thread: G 3/8" -19 | Package length (cm): 3 | Package width (cm): 6.1 | Package height (cm): 10.5 | Gross weight (kg): 0.696000 | EAN: 6418914175303
