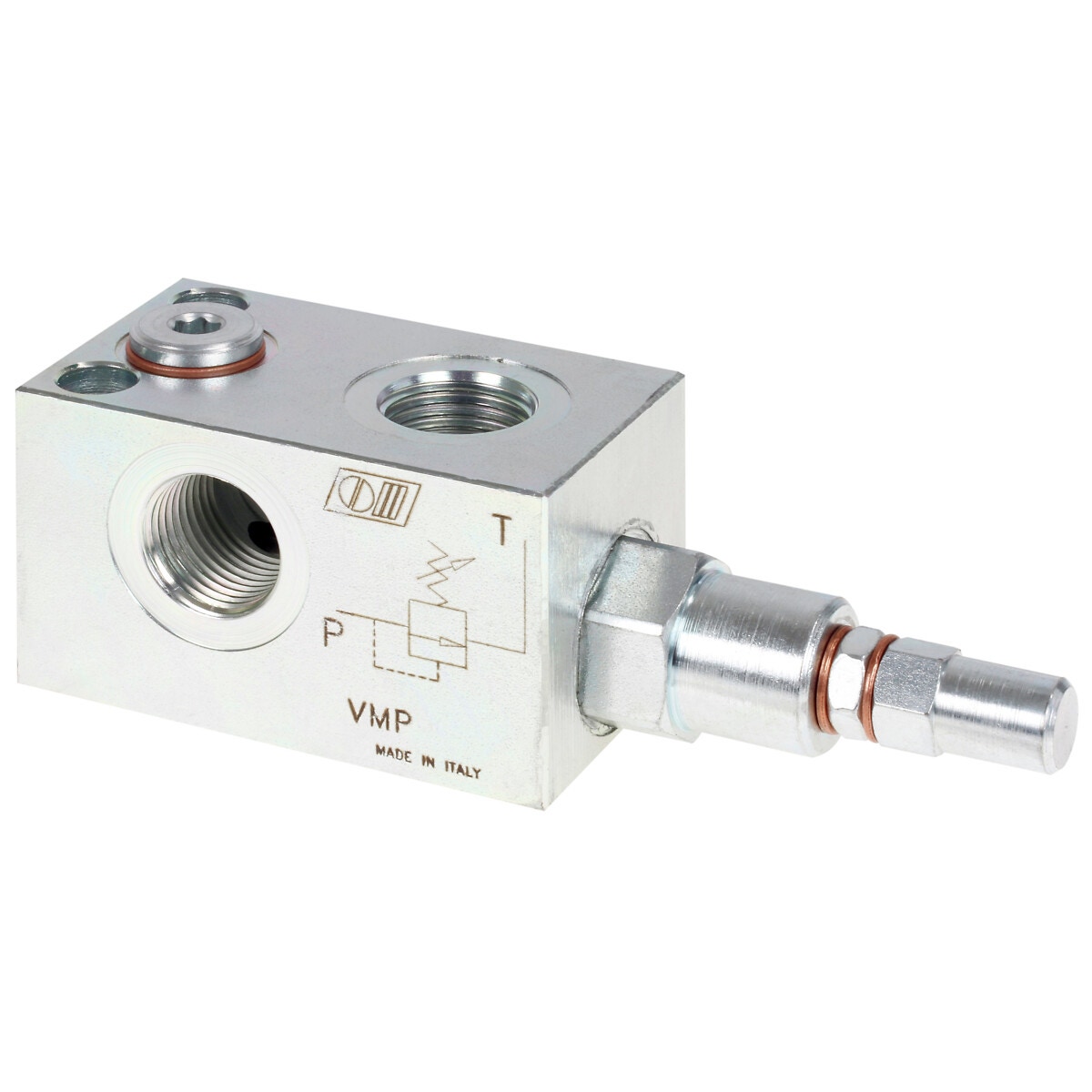

Release valve 3/8 vmp 10-180 bar

Description

type VMP | relief valve provides overload protection in a fast and accurate way: when it reaches pressure setting, the valve opens allowing pressure relief in order not to exceed this setting | material zinc plated steel | BunaN sealing | setting range 10 - 180 bar (default setting 90 bar) | connection P T: G 3/8" | max. flow 45 l/min | A 72 | B 134 | C 15 | D 26 | E 49,5 | F 8,5 | G 26 | H 6,5 | I 40 | S 40

Attributes

Thread: G 3/8" -19 | Package length (cm): 13.2 | Package width (cm): 4.1 | Package height (cm): 4.4 | Gross weight (kg): 0.824000 | EAN: 6418914928022
