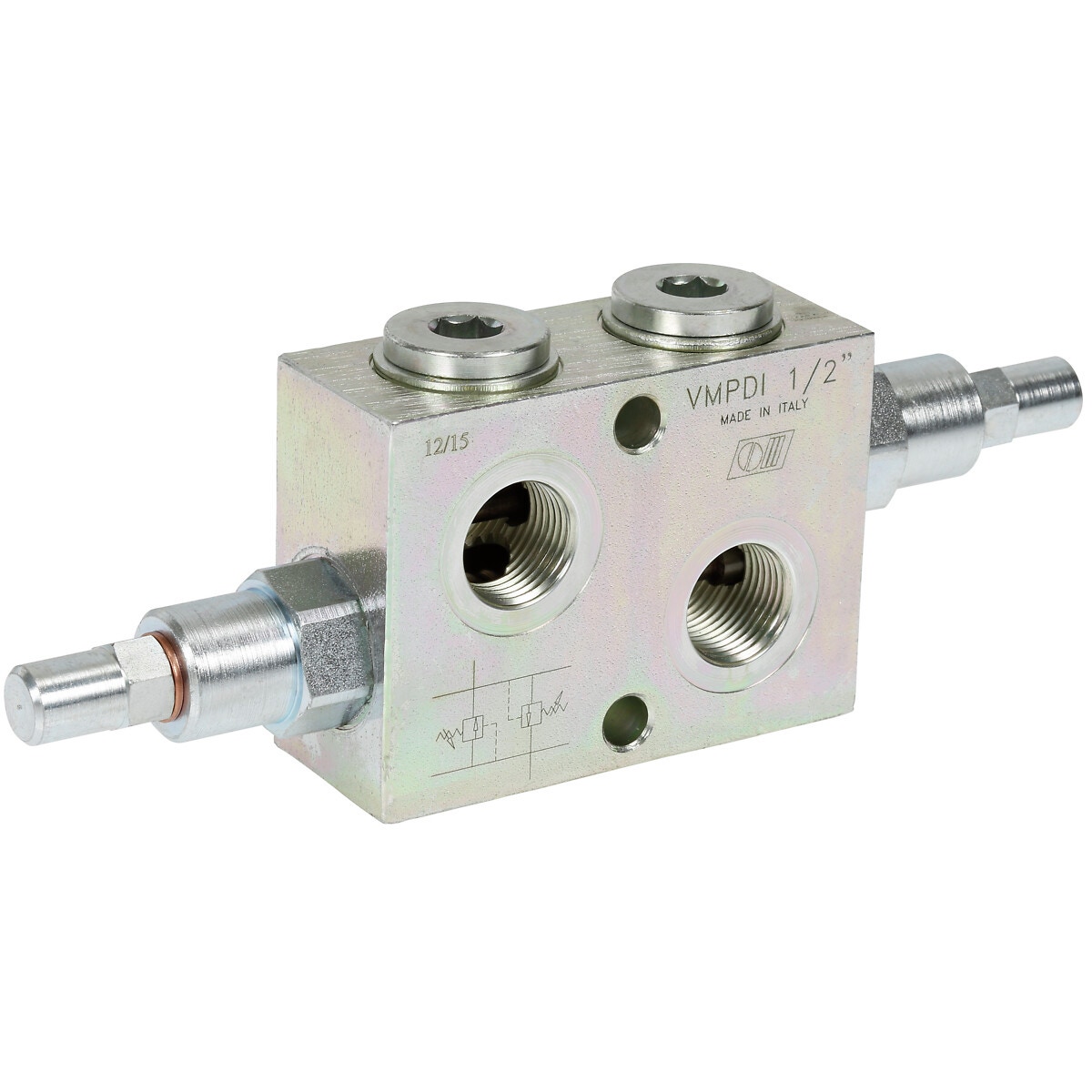

Double pressure valve 3/8 vmpdi 10-180bar

Description

type VMPDI | dual cross relief valves is used to block pressure to a certain setting in the 2 ports of an actuator / hydraulic motor | it's ideal to provide protection against sudden shock pressures and to adjust different pressures in the 2 ports of an hydraulic circuit as well | material zinc plated steel | BunaN sealing | setting range 10 – 180 bar (default setting 90 bar) | connection V1 V2: G 3/8" | max. flow 45 l/min

Attributes

Thread: G 3/8" -19 | Package length (cm): 19.8 | Package width (cm): 4 | Package height (cm): 6.6 | Gross weight (kg): 1.727000 | EAN: 6418914960572
