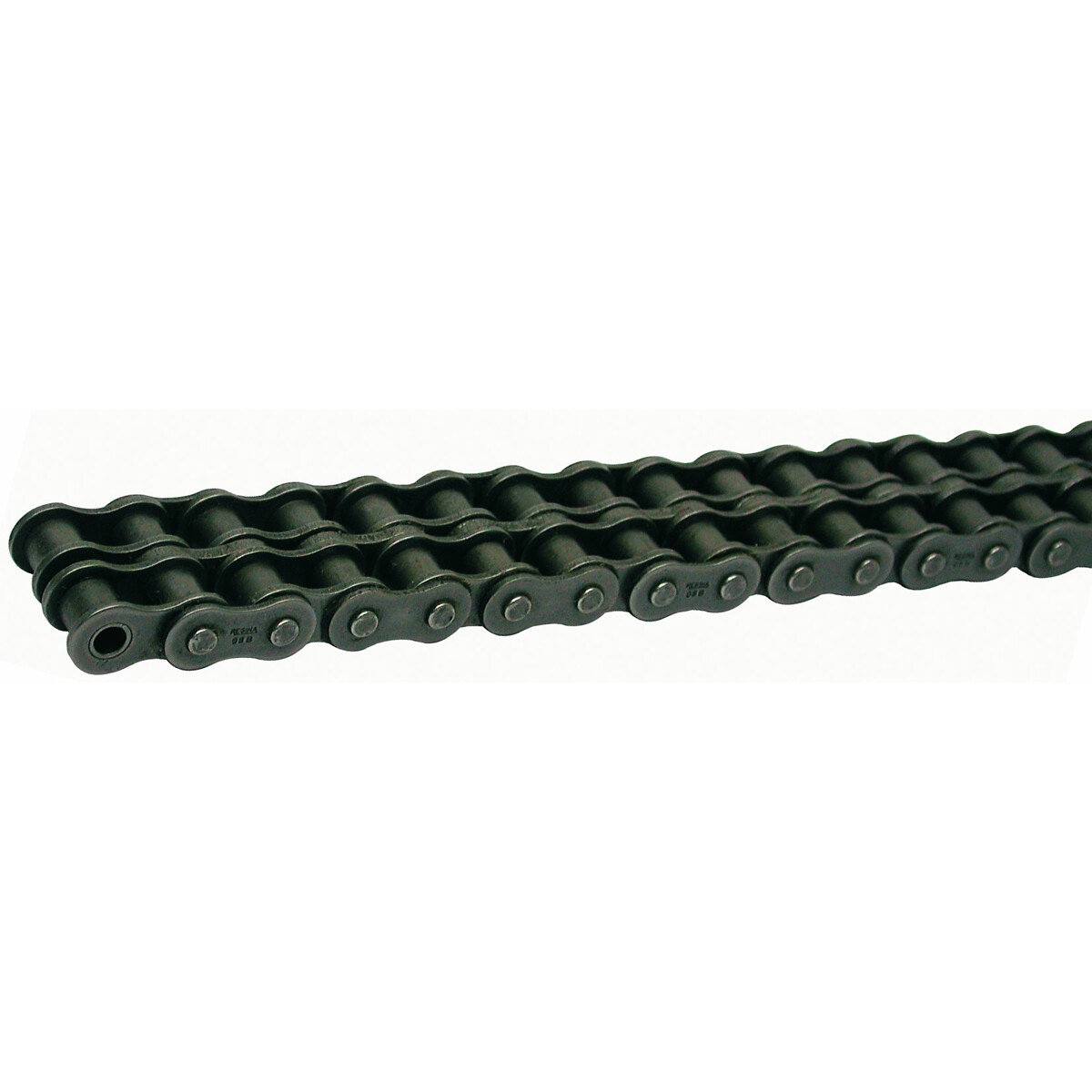

Rullīšu ķēde 3/4 din8187

Description

P pitch: 3/4" | Dr roller Ø: 12,07 mm | W inner width min.: 11,68 mm | Hi hight max.: 16,13 mm | S thickness: 1,85 / 1,70 mm | Tp transverse pitch: 19,46 | Dp pin diameter max.: 5,72 mm | A2 width of riveted pin: 42,0 mm | B width of pin: 51,2 mm | working surface: 178 mm² | measuring load: 560 N | min. breaking strength: 57,8 kN | average breaking strength: 66,00 kN | weight: 2,40 kg | economic product

Attributes

Package length (cm): 14 | Package width (cm): 14 | Package height (cm): 4.2 | Gross weight (kg): 2.452000 | EAN: 6418914089440
