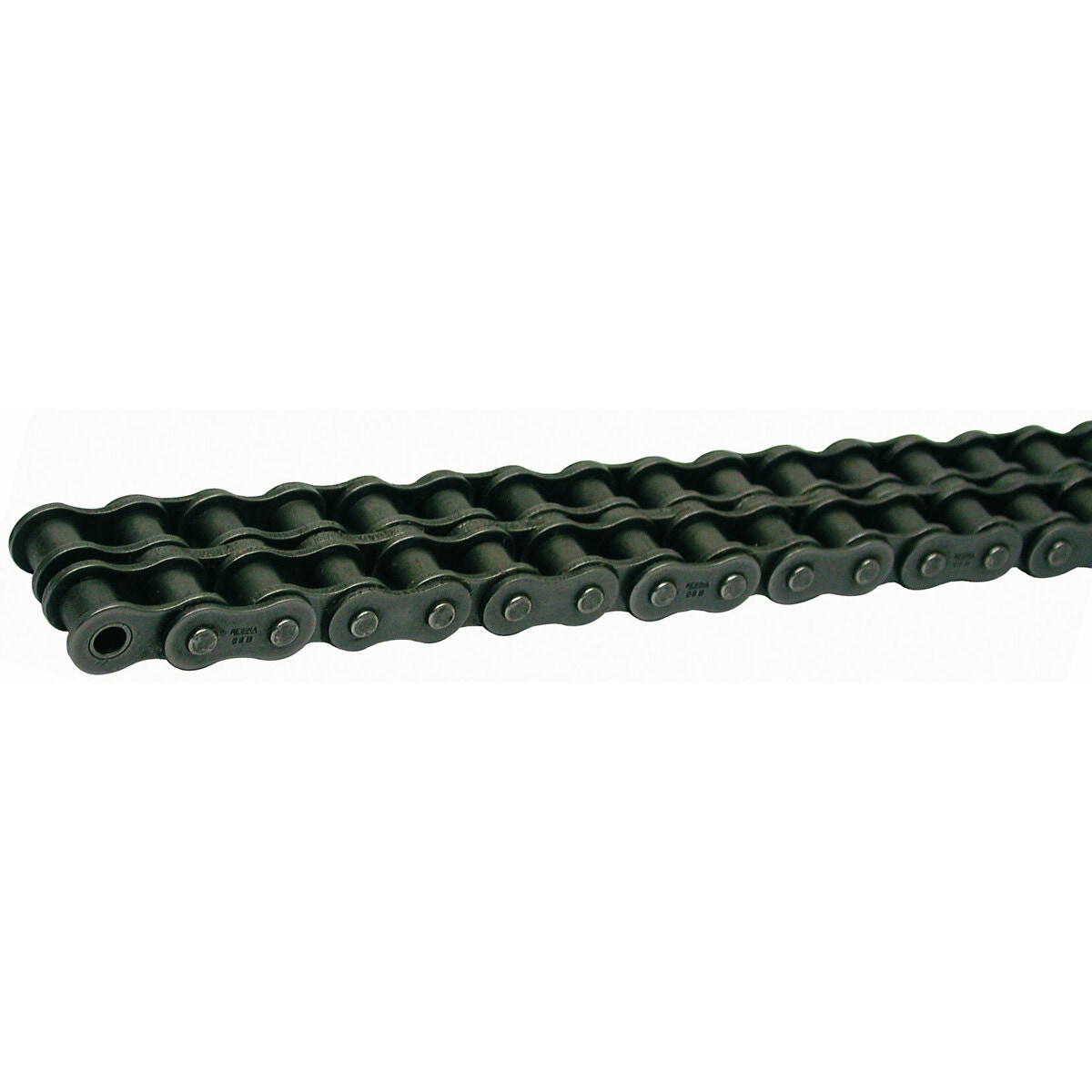

Rullīšu ķēde 5/8 din8187
23,40 €
✓ Pieejams
Description
P pitch: 5/8" | Dr roller Ø: 10,16 mm | W inner width min.: 9,65 mm | Hi hight max.: 14,73 mm | S thickness: 1,63 / 1,53 mm | Tp transverse pitch: 16,59 | Dp pin diameter max.: 5,08 mm | A2 width of riveted pin: 35,8 mm | B width of pin: 44,0 mm | working surface: 137 mm² | measuring load: 390 N | min. breaking strength: 44,5 kN | average breaking strength: 49,00 kN | weight: 1,73 kg | economic product
Attributes
Package length (cm): 6 | Package width (cm): 5.8 | Package height (cm): 0.96 | Gross weight (kg): 1.868000 | EAN: 6418914089372
