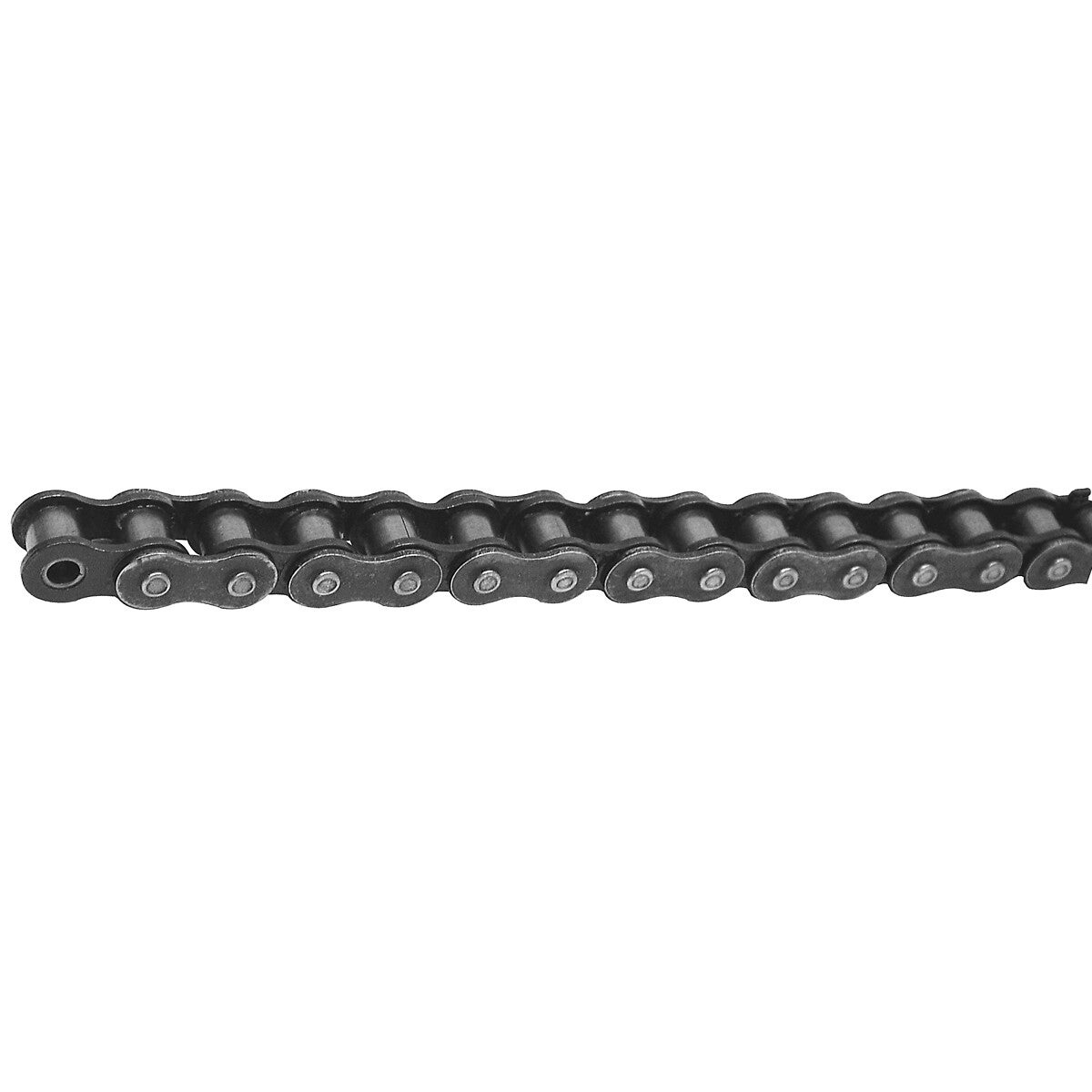

Rullīšu ķēde 1 1/4 din8187
195 €
Noliktavā 3 prece/-es
✓ Pieejams
Description
P pitch: 1 1/4" | Dr roller Ø: 19,05 mm | W inner width min.: 19,56 mm | Hi hight max.: 26,42 mm | S thickness: 4,60 / 3,35 mm | Dp pin diameter max.: 10,19 mm | A1 width of riveted pin: 41,20 mm | B width of pin: 50 mm | working surface: 295 mm² | measuring load: 780 N | min. breaking strength: 95,00 kN | average breaking strength: 98,50 kN | weight: 3,39 kg | economic product
Attributes
Package length (cm): 38 | Package width (cm): 38.5 | Package height (cm): 4.5 | Gross weight (kg): 6.250000 | EAN: 6418914089532
