Ptfe šļūtene 3/4

Description

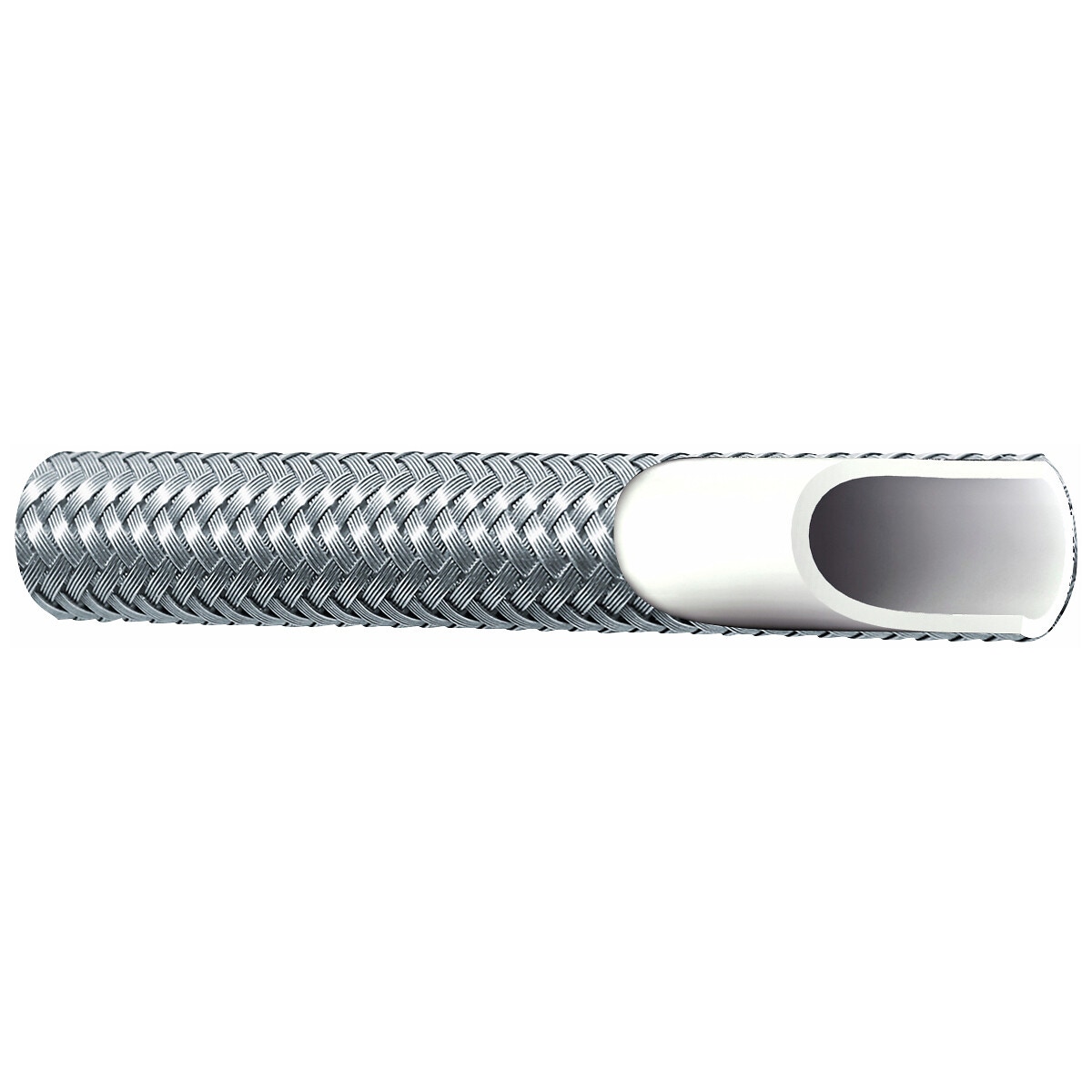

smoothbore PTFE hose | reinforcement one braid of stainless steel AISI 304 | inner surface polytetrafluoroethylene (PTFE) | applications: aggressive chemicals transfer systems, compressed air and gases, high or low temperature fluid or gas transfer | operating temperature -60…+260 °C | nominal size -12 | hose DN 20 | inner Ø 3/4" | inner Ø 19,8 mm | outer Ø 23,0 mm | tube thickness 0,8 mm | operating pressure 75 bar | explosion pressure 300 bar | bending radius 190 mm | weight 334 g/m

Attributes

Hose inner Ø (mm): 19 | Hose inner Ø (mm): 19.00 | Hose inner Ø (inch): 3/4" | Package length (cm): 100 | Package width (cm): 2.3 | Package height (cm): 2.3 | Gross weight (kg): 0.358000 | EAN: 6418914944206
