Ptfe šļūtene 1/2 gofrēta

Description

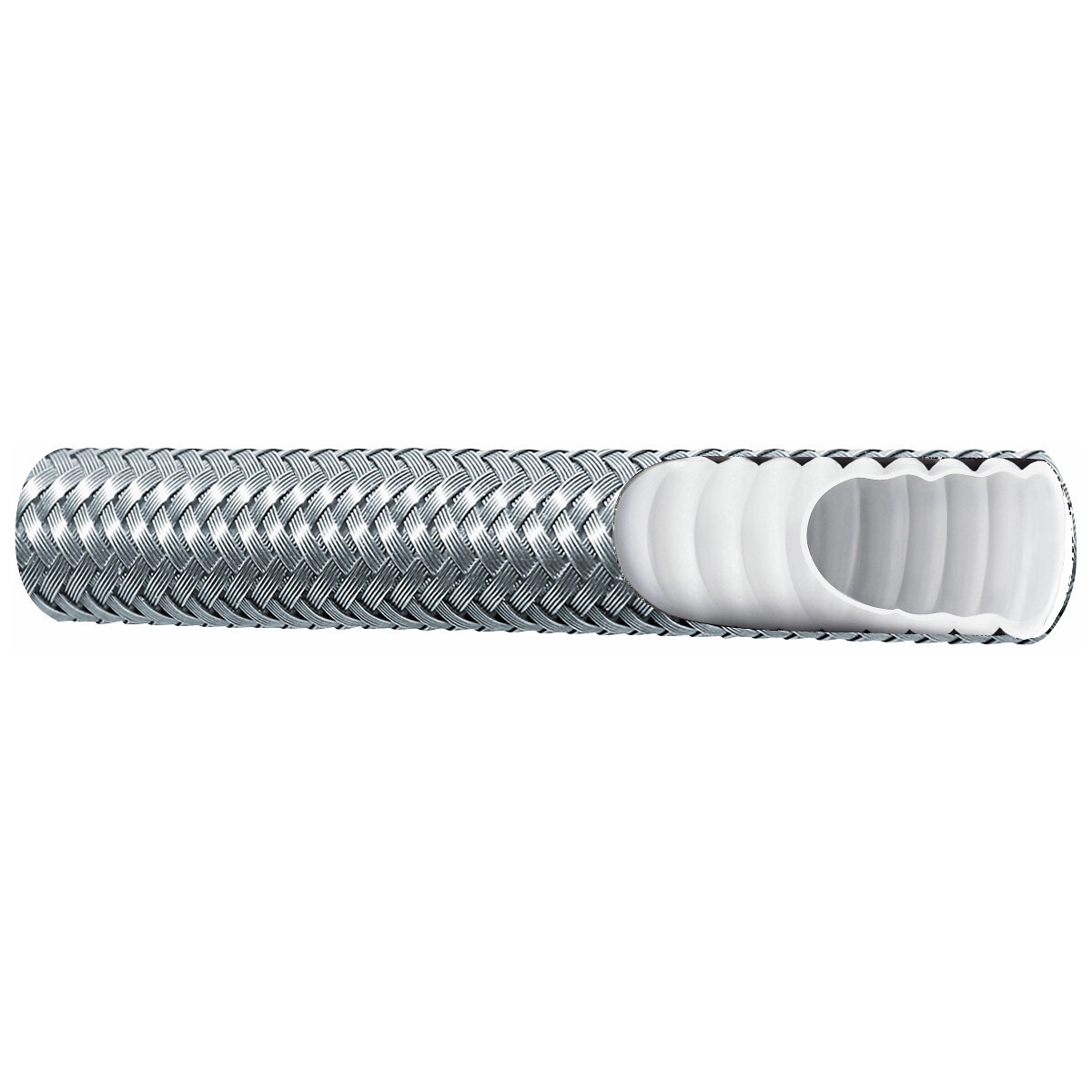

corrugated PTFE hose | reinforcement one braid of stainless steel AISI 304 | inner surface polytetrafluoroethylene (PTFE) | applications: aggressive chemicals transfer systems, compressed air and gases, high or low temperature fluid or gas transfer | operating temperature -60…+260 °C | nominal size -08 | hose DN 12 | inner Ø 1/2" | inner Ø 12.8 mm | outer Ø 18,8 mm | operating pressure 103 bar | explosion pressure 309 bar | bending radius 25 mm | weight 280 g/m

Attributes

Hose inner Ø (mm): 13 | Hose inner Ø (mm): 13.00 | Hose inner Ø (inch): 1/2" | Package length (cm): 100 | Package width (cm): 2.1 | Package height (cm): 2.1 | Gross weight (kg): 0.284000 | EAN: 6418914966352
