Ptfe šļūtene 1 gofrēta

Description

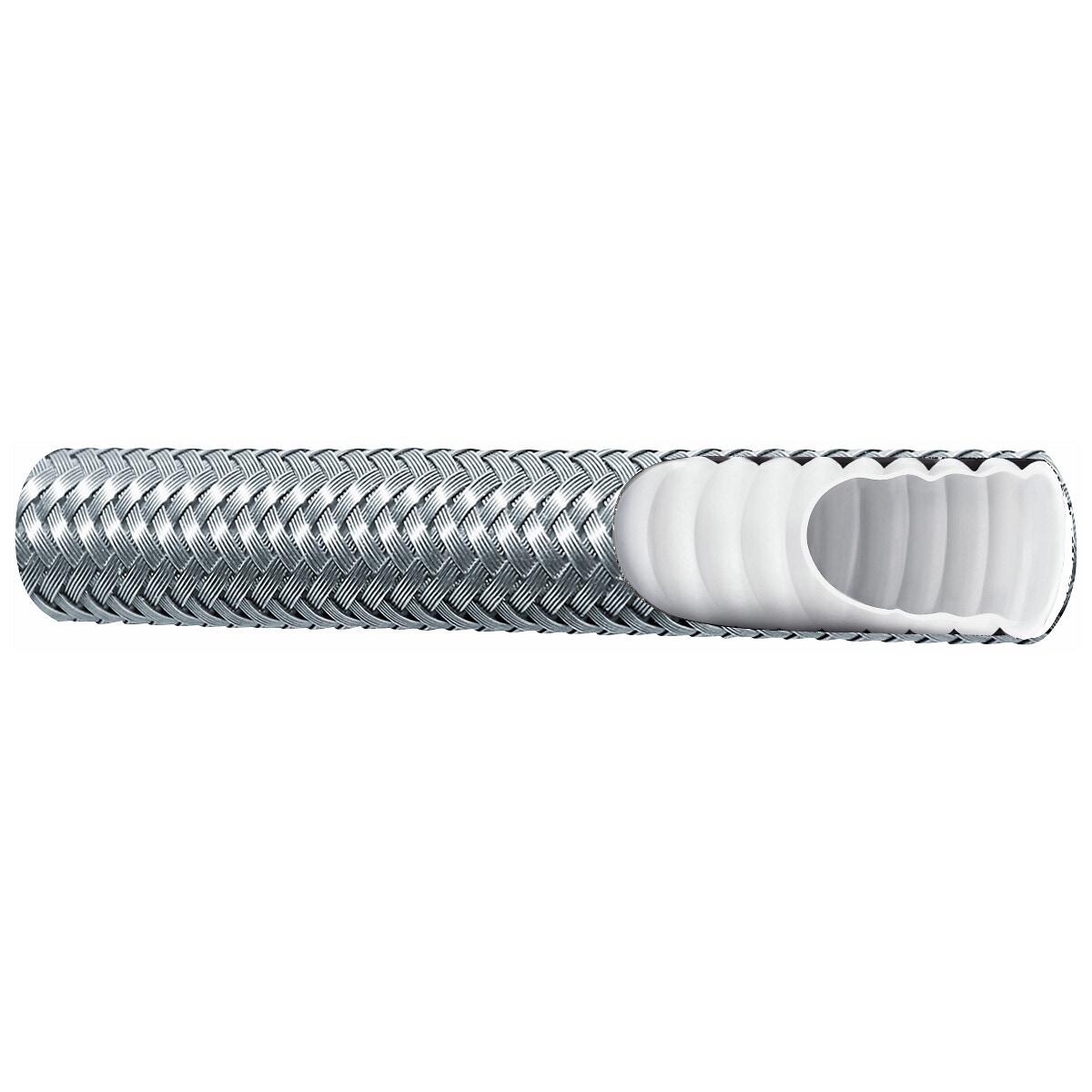

convoluted PTFE hose | reinforcement one braid of stainless steel AISI 304 | inner surface polytetrafluoroethylene (PTFE) | applications: aggressive chemicals transfer systems, compressed air and gases, high or low temperature fluid or gas transfer | operating temperature -60…+260 °C | nominal size -16 | hose DN 25 | inner Ø 1" | inner Ø 25,4 mm | outer Ø 33,0 mm | operating pressure 50 bar | explosion pressure 200 bar | bending radius 100 mm | weight 545 g/m

Attributes

Hose inner Ø (mm): 25 | Hose inner Ø (mm): 25.00 | Hose inner Ø (inch): 1" | Package length (cm): 100 | Package width (cm): 3.4 | Package height (cm): 3.4 | Gross weight (kg): 0.600000 | EAN: 6418914944176
