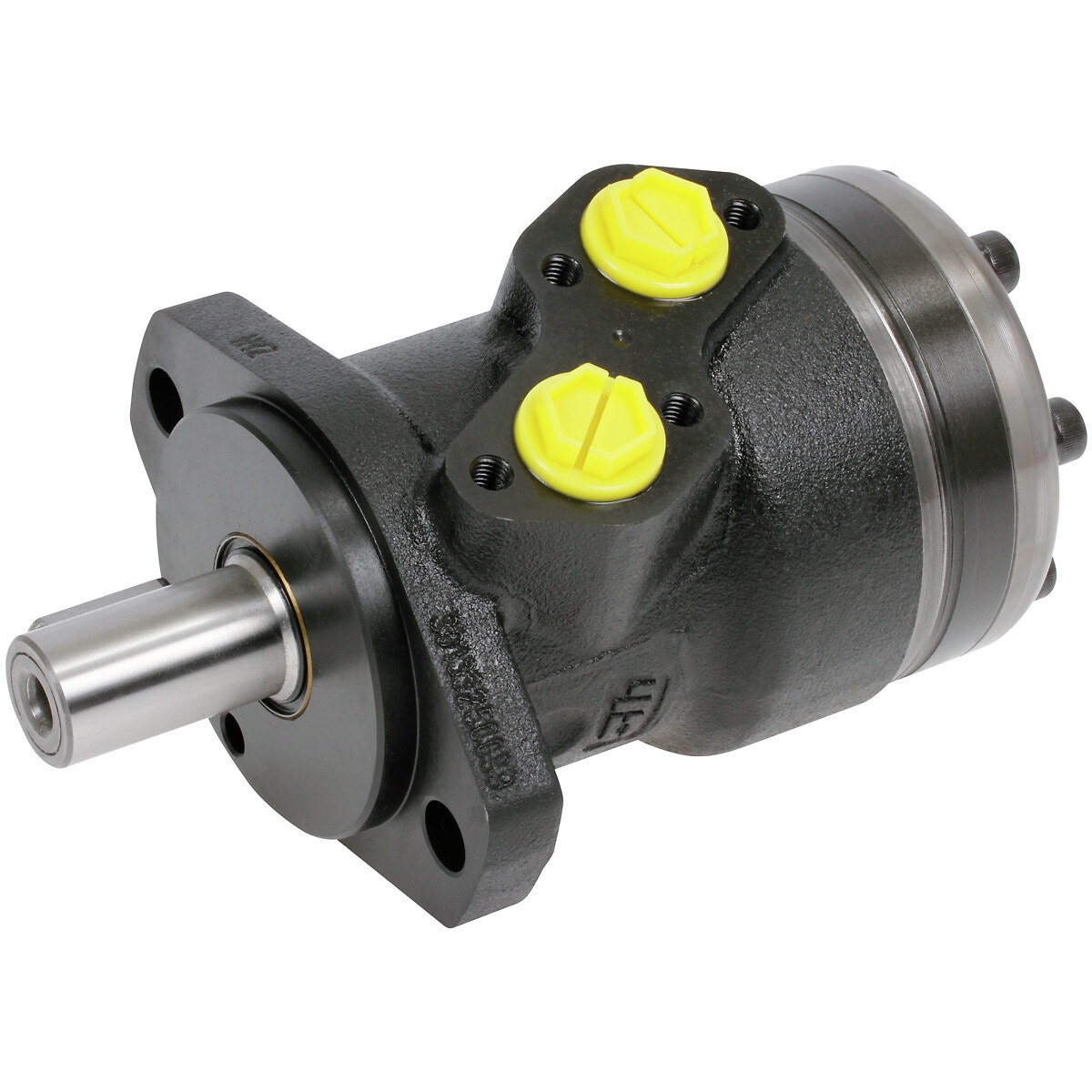

GEROTORMOTOR HMR 160
322 €
✓ Pieejams
Description
25 mm straight shaft, parallel key A8x7x32 DIN6885 | main ports G 1/2" | drain port G 1/4" | Danfoss OMR exchangeable | combines high performance with compact size | applications: for example agricultural machinery, sand spreaders, hydraulic saws, slurry pumps | displacement 160 cm³/r | max. speed continuous 375 / intermittent 469 rpm | max. torque continuous 296 / intermittent 375 Nm | max. output continuous 10 / intermittent 12,5 kW | max. pressure continuous 175 / intermittent 200 / peak 225 bar | max. differential pressure continuous 140 / intermittent 175 / peak 225 bar | max. oil flow continuous 60 / intermittent 75 l/min | A 158,2 mm | B 27,8 mm | C 54 mm | weight 8,3 kg
Attributes
Shaft: 25 mm straight shaft | Thread: G 1/2" -14 | Package length (cm): 23.5 | Package width (cm): 13.5 | Package height (cm): 12.5 | Gross weight (kg): 8.398000 | EAN: 6418914943421
