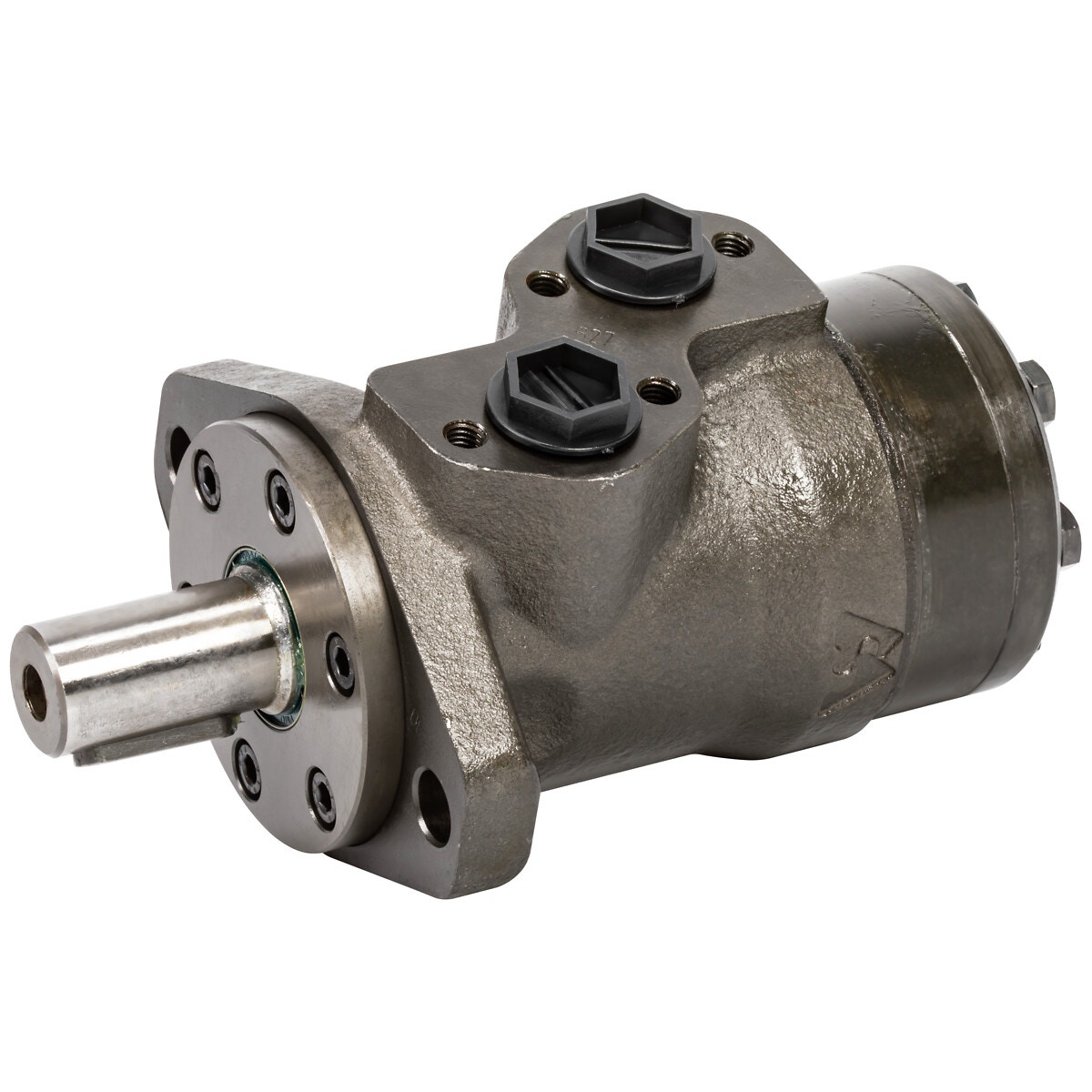

ORBITMOTORS HMP 160

Description

high-quality M+S gerotor motor, which is suitable for a wide range of applications, such as agricultural machinery, sand spreaders, log saws, sludge pumps, conveyors, boom mower attachments etc. | high torque with compact size | Danfoss OMP exchangeable | 25 mm straight shaft, parallel key A8x7x32 DIN 6885 | main ports G 1/2" | drain port G 1/4" | displacement 158.4 cm³/r | max. speed continuous 378 / intermittent 472 rpm | min. speed 10 rpm | max. torque continuous 313 / intermittent 378 Nm | max. output continuous 10.1 / intermittent 12,1 kW | max. pressure continuous 165 / intermittent 200 / peak 225 bar | max. differential pressure continuous 140 / intermittent 175 / peak 225 bar | max. oil flow continuous 60 / intermittent 75 l/min | A 150 mm | B 21.3 mm | C 55 mm | weight 6.4 kg

Attributes

Shaft: 25 mm straight shaft | Thread: G 1/2" -14 | Package length (cm): 28.6 | Package width (cm): 12.8 | Package height (cm): 15 | Gross weight (kg): 6.775000 | EAN: 6418914196742
