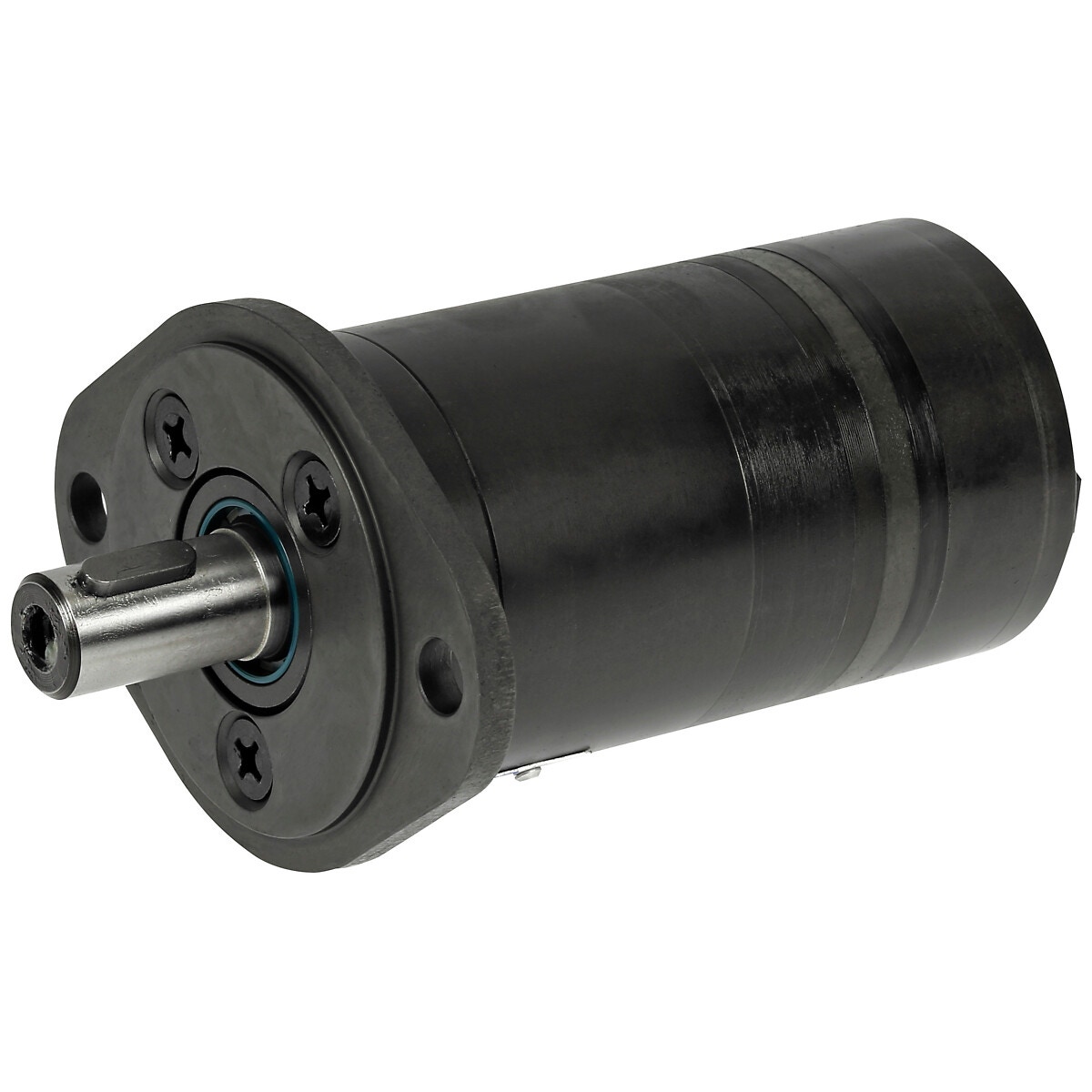

Gerotora motors hmm 31,8

Description

16 mm straight shaft, parallel key A5x5x16 DIN6885 | main ports G 3/8" | drain port G 1/8" | operating temperature -40…+140 °C | applications: for example conveyors, screw conveyors in silos, sand spreaders etc. | includes 2-bolt mounting flange | displacement 31,8 cm/r | max. speed continuous 630 / intermittent 790 rpm | min. speed 30 rpm | max. torque continuous 4 / intermittent 5,7 / peak 6,4 Nm | max. output continuous 2,4 / intermittent 3,2 kW | max. pressure continuous 105 / intermittent 140 / peak 200 bar | max. oil flow continuous 20 / intermittent 25 l/min | A 114 mm | B 13,5 mm | weight 2,2 kg

Attributes

Shaft: 16 mm straight shaft | Thread: G 3/8" -19 | Package length (cm): 20 | Package width (cm): 10.5 | Package height (cm): 9 | Gross weight (kg): 2.378000 | EAN: 6418914944602
