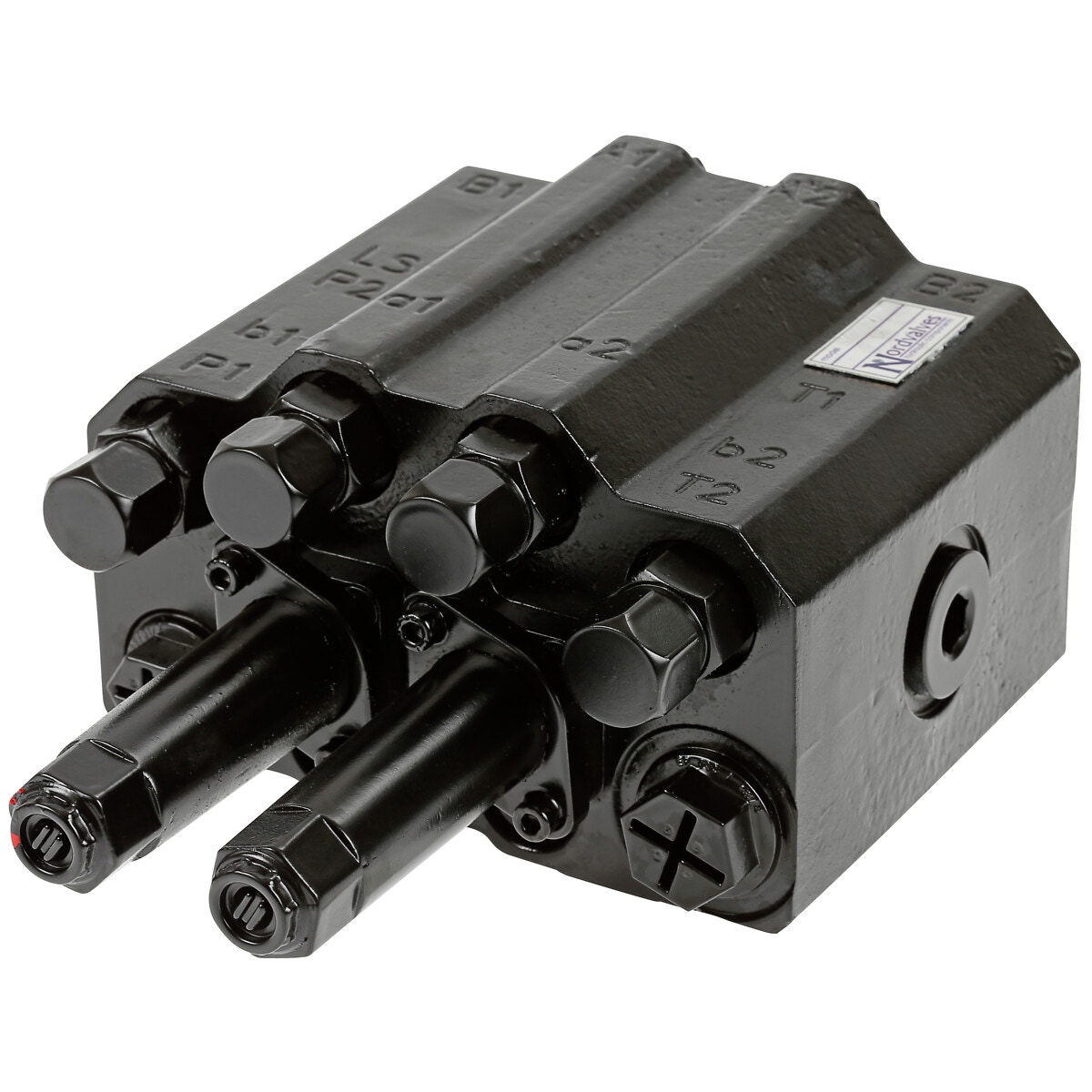

FRONTĀLĀ IEKRĀVĒJA VĀRSTS 90L LS

Description

load sensing (LS) | adjustable main relief valve | 2-spool (one with floating position, 4 position) | work pressure limit 250 bar | flow 90 l/min | LS port G 1/4" | P1/P2/T1 ports G 1/2" | A/B ports G 1/2" | T2/T(CO) ports G 3/4" | A hose must be installed for LS valve from LS port to pump regulator. | Note! Make sure your machine has a genuine load-sensing (LS) hydraulic system with a sufficient pressure differential for the valve to operate correctly. Some machines use a system that mimics a variable displacement pump, but it does not fully function like a true LS system. In such cases, the pressure differential may be too low, which can cause the valve to malfunction.

Attributes

Thread: G 1/4" -19, G 1/2" -14, G 3/4" -14 | Package length (cm): 19 | Package width (cm): 30.5 | Package height (cm): 10 | Gross weight (kg): 14.300000 | EAN: 6418914961371
