Atbrīvošanas vārsts 1/2 vmp 10-180 bar

Description

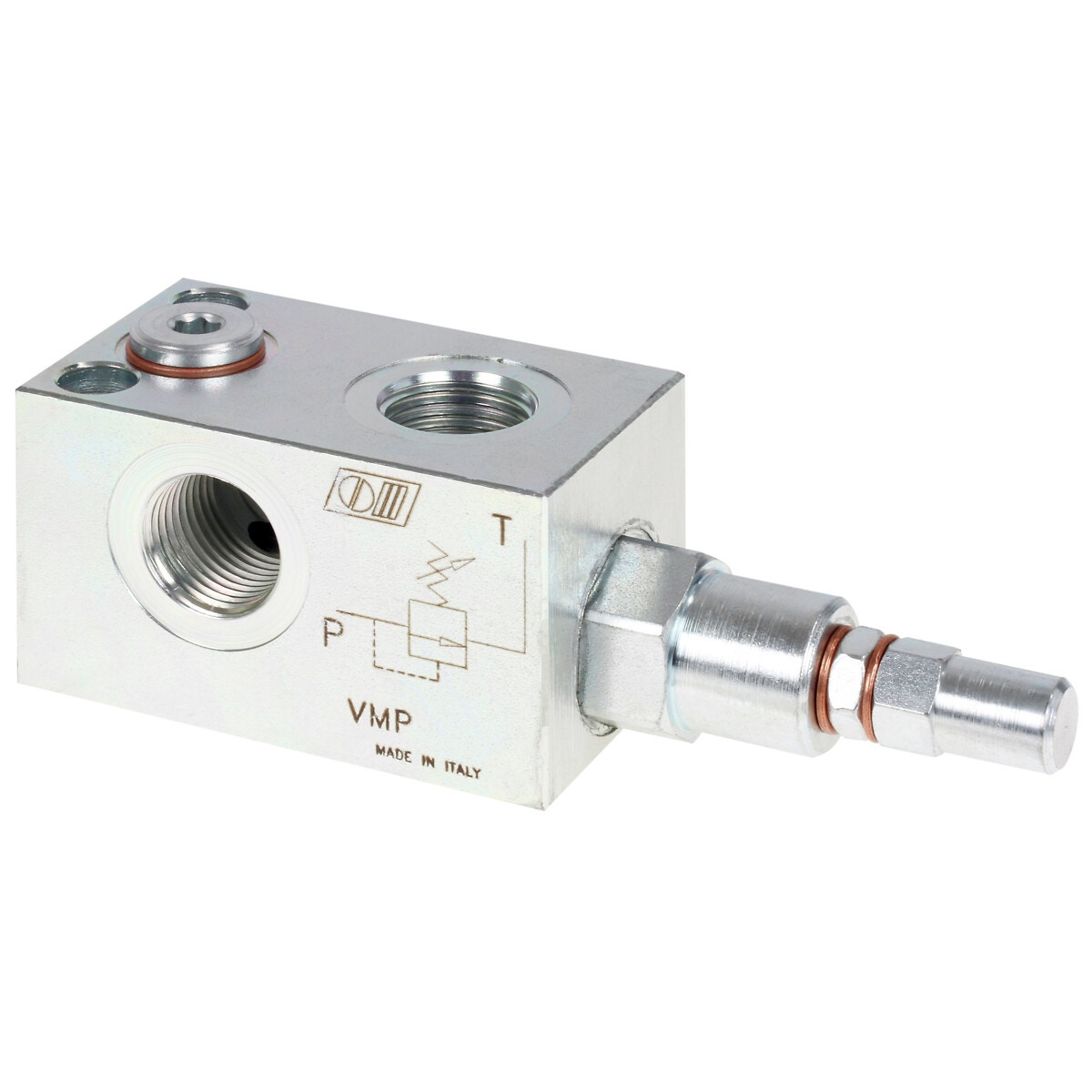

type VMP | relief valve provides overload protection in a fast and accurate way: when it reaches pressure setting, the valve opens allowing pressure relief in order not to exceed this setting | material zinc plated steel | BunaN sealing | setting range 10 – 180 bar (default setting 90 bar) | connection P T: G 1/2" | max. flow 70 l/min | A 77 | B 139 | C 17,5 | D 29,5 | E 54 | F 8,5 | G 30 | H 6,5 | I 45 | S 45

Attributes

Thread: G 1/2" -14 | Package length (cm): 13.8 | Package width (cm): 4.6 | Package height (cm): 4.9 | Gross weight (kg): 1.065000 | EAN: 6418914928039
