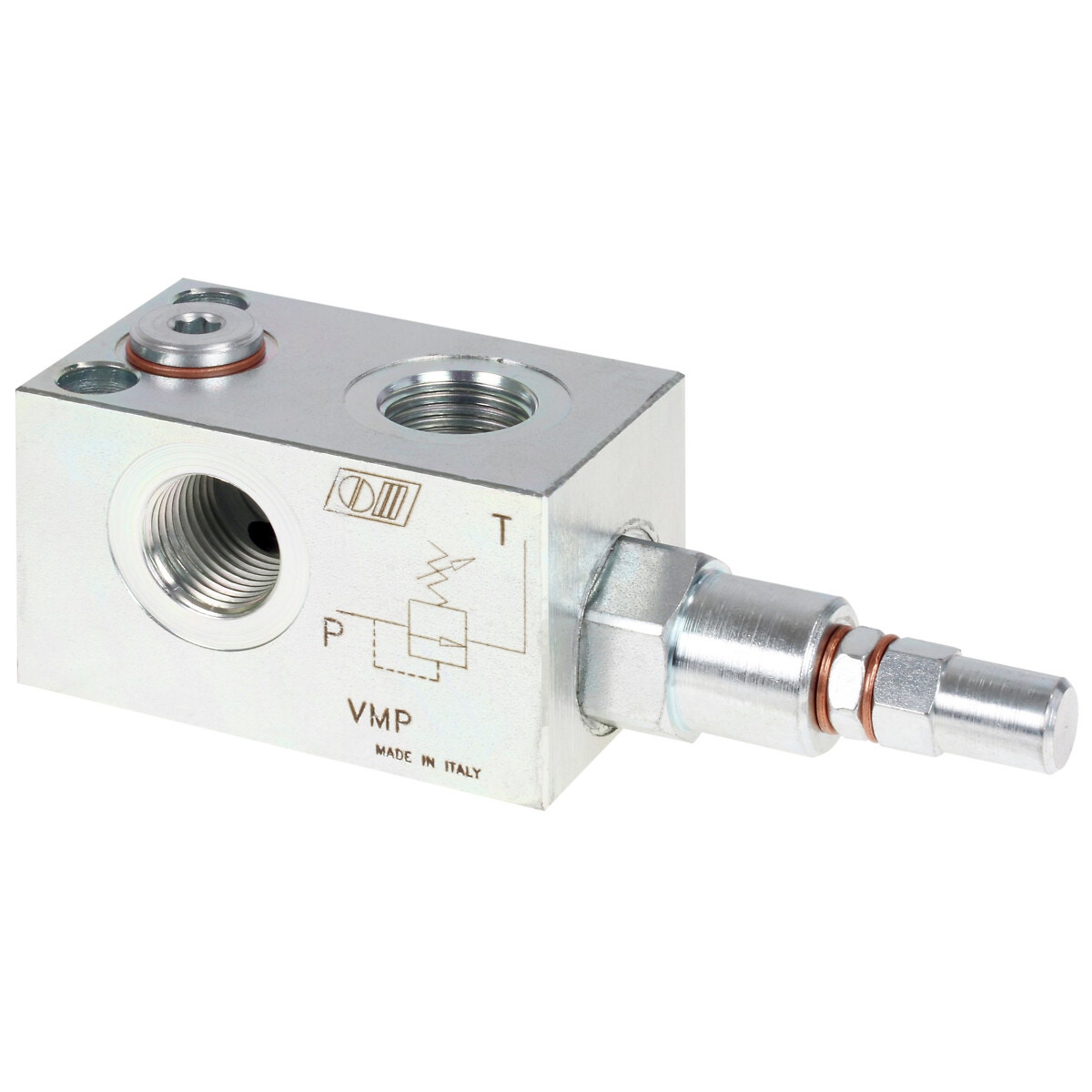

Pārvārsts 3/4 vmp 10-180 bar

Description

type VMP | relief valve provides overload protection in a fast and accurate way: when it reaches pressure setting, the valve opens allowing pressure relief in order not to exceed this setting | material zinc plated steel | BunaN sealing | setting range 10 – 180 bar (default setting 90 bar) | connection P T: G 3/4" | max. flow 90 l/min | A 92 | B 154 | C 17,5 | D 35 | E 68 | F 10 | G 32 | H 8,5 | I 50 | S 50

Attributes

Thread: G 3/4" -14 | Package length (cm): 15.2 | Package width (cm): 5 | Package height (cm): 5.4 | Gross weight (kg): 1.472000 | EAN: 6418914928046
