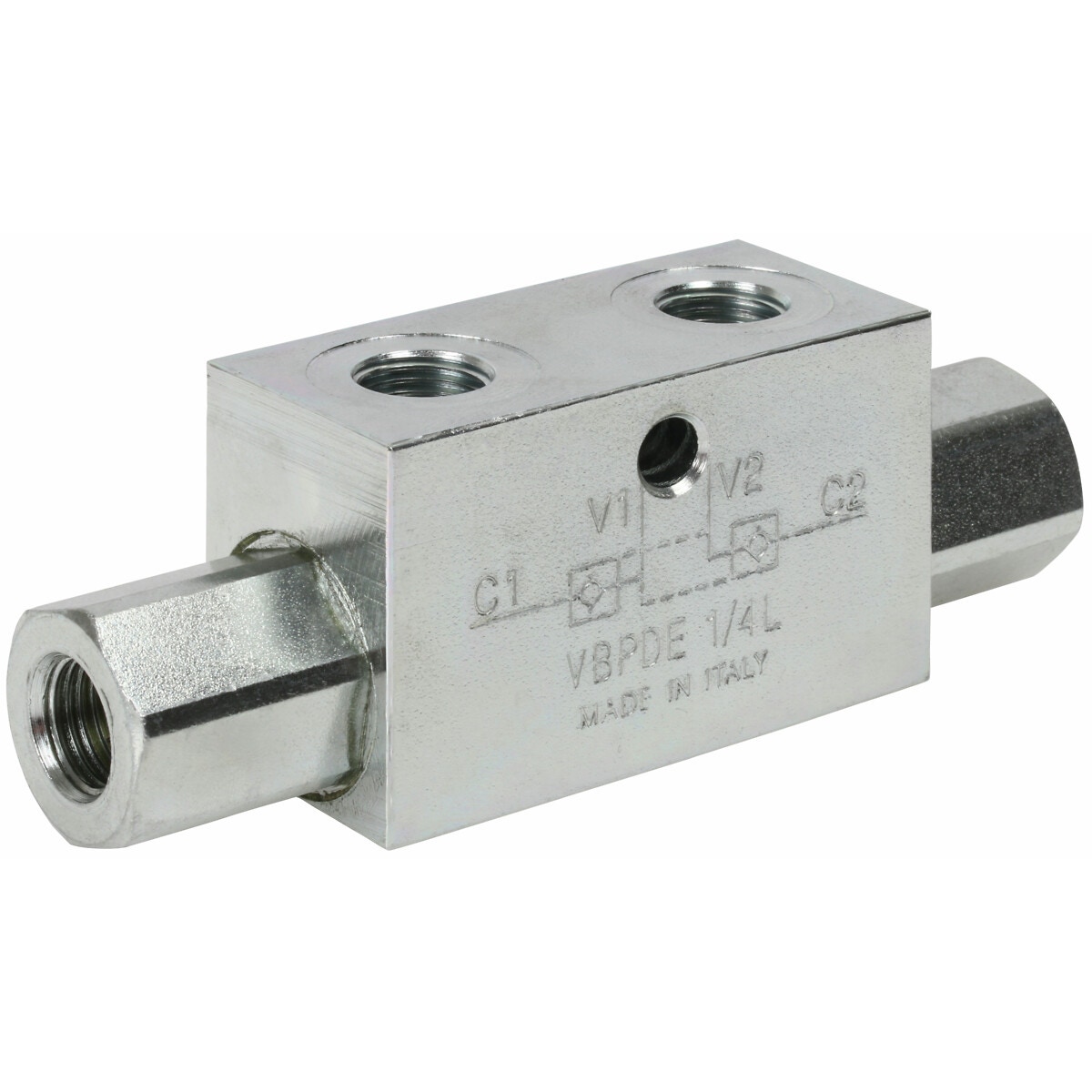

Divkāršais pilotvārsts ar pretvārsts 1/4

Description

type VBPDE L | double pilot check valves are use to block the cylinder in both directions | flow is free in one direction and blocked in the reverse direction until pilot pressure is applied | material zinc plated steel | BunaN sealing | connection V1 V2: G 1/4" | connection C1 C2: G 1/4" | max. flow 20 l/min | max. pressure 350 bar | cracking pressure 4 bar | A 64 | B 113 | C 36 | D 8 | H 40 | S 30

Attributes

Thread: G 1/4" -19 | Package length (cm): 11.3 | Package width (cm): 3 | Package height (cm): 4 | Gross weight (kg): 0.643000 | EAN: 6418914928534
