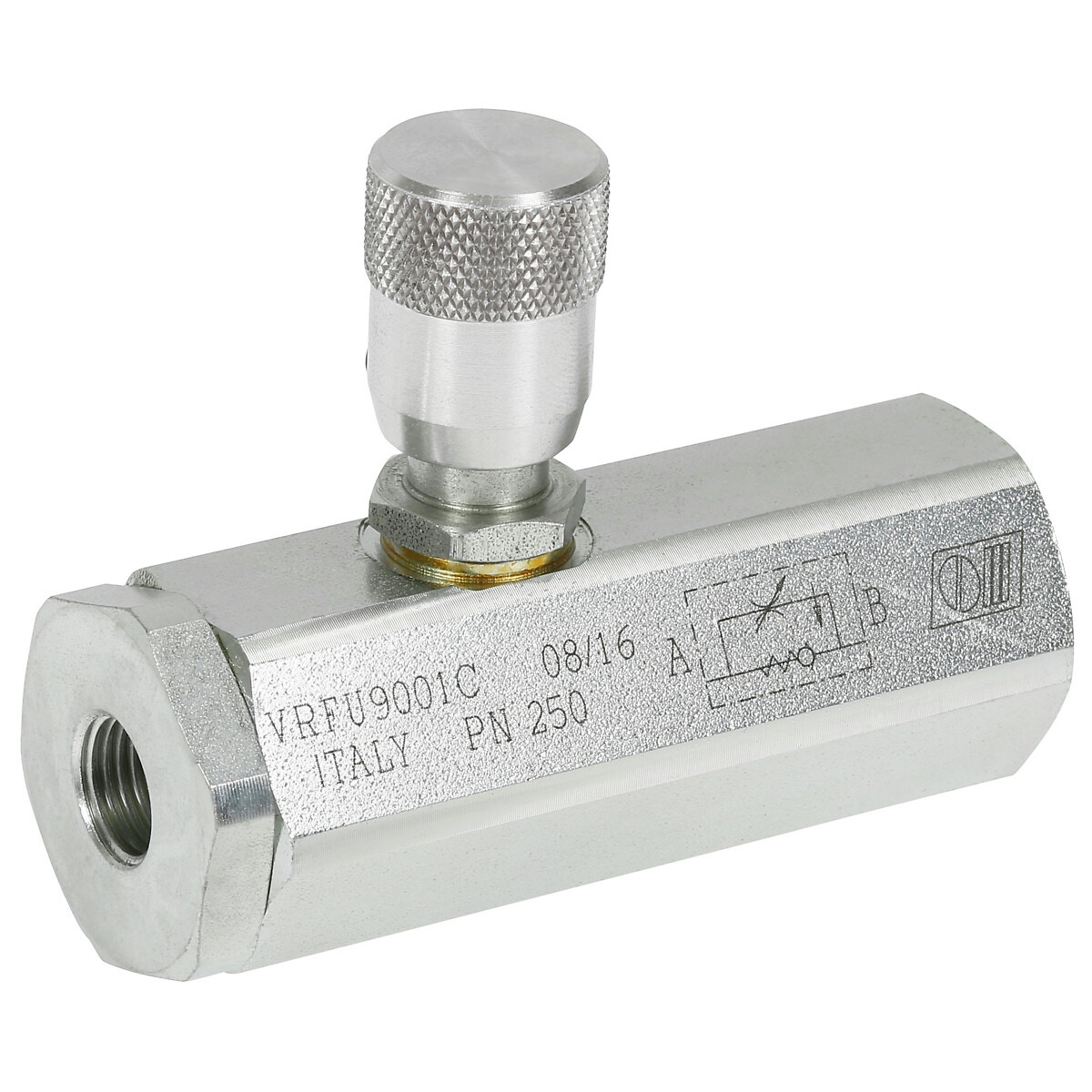

Plūsmas regulatora vārsts 1/4 vrfu ar kompensāciju

Description

type VRFU 90° | compensated flow regulator valves is used toadjust flow speed of actuators in one direction; flow is free in the reverse one | the internal compensation system allows to keep a constant speed even when the load varies | high adjustment sensitivity | material zinc plated steel | BunaN sealing | connection A B: G 1/4" | max. flow from A to B 17 l/min, from B to A 25 l/min | max. pressure 250 bar

Attributes

Thread: G 1/4" -19 | Package length (cm): 8.7 | Package width (cm): 3.2 | Package height (cm): 6.3 | Gross weight (kg): 0.527000 | EAN: 6418914960664
