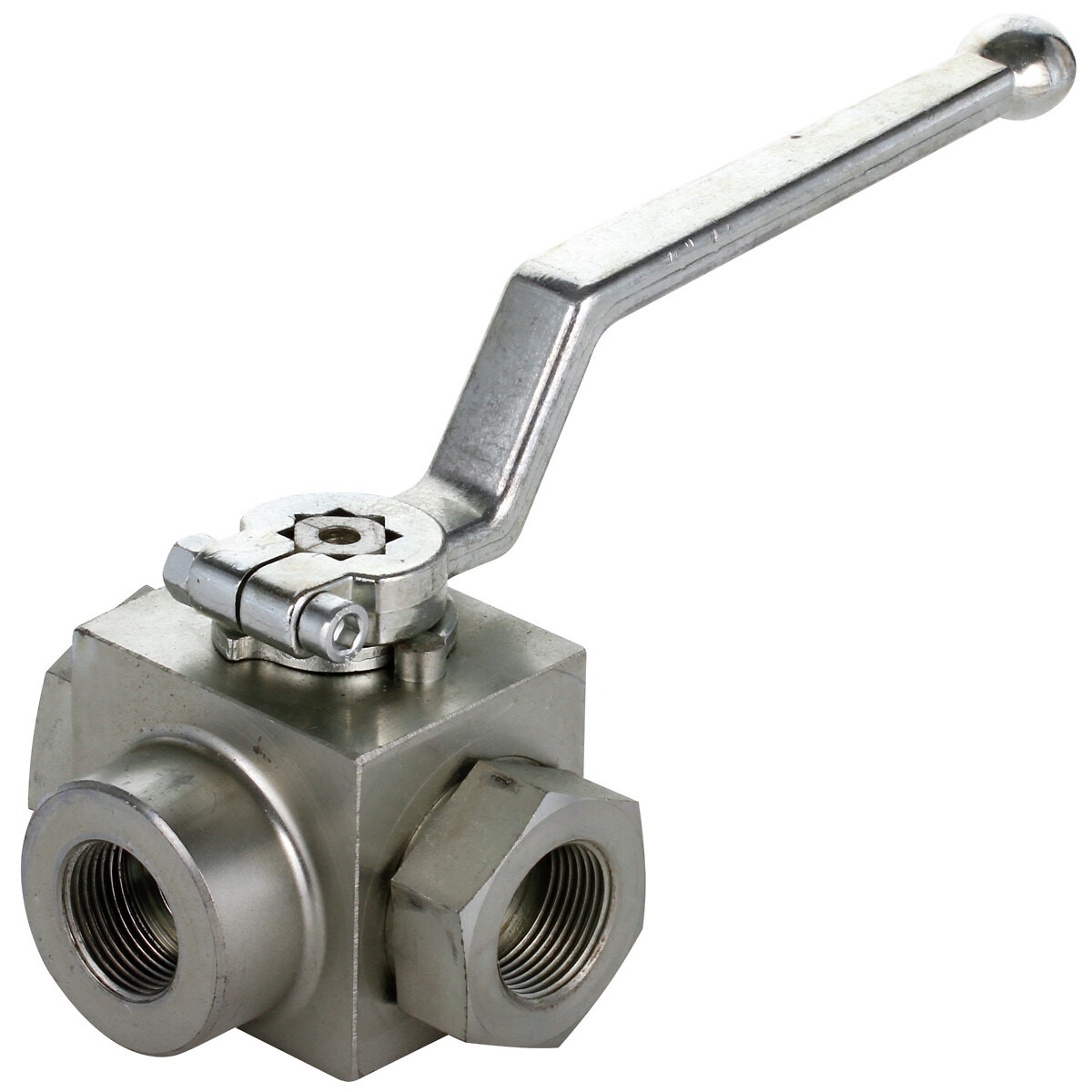

3 VIRZIENU LODVEIDA VĀRSTS BSP 1/4 500BAR L-VEIDA
47,30 €
✓ Pieejams
Description
type L scheme | material zinc plated steel | operating temperature -20…+100 °C | warning! pressure inlet only from center port 1 | hose DN 6 | thread G 1/4" | max. pressure 500 bar | A 35 | B 14,5 | C 71 | D 42,4 | E 11 | F 49 | G 30 | G1 48,5 | H 110 | I 91,5 | L 15,5 | ØM G 1/4" | CH 24 | SW 9 | ØLW 6 | weight 0,53 kg
Attributes
Thread: G 1/4" -19 | Package length (cm): 15 | Package width (cm): 8 | Package height (cm): 5 | Gross weight (kg): 0.438000 | EAN: 6418914894013
