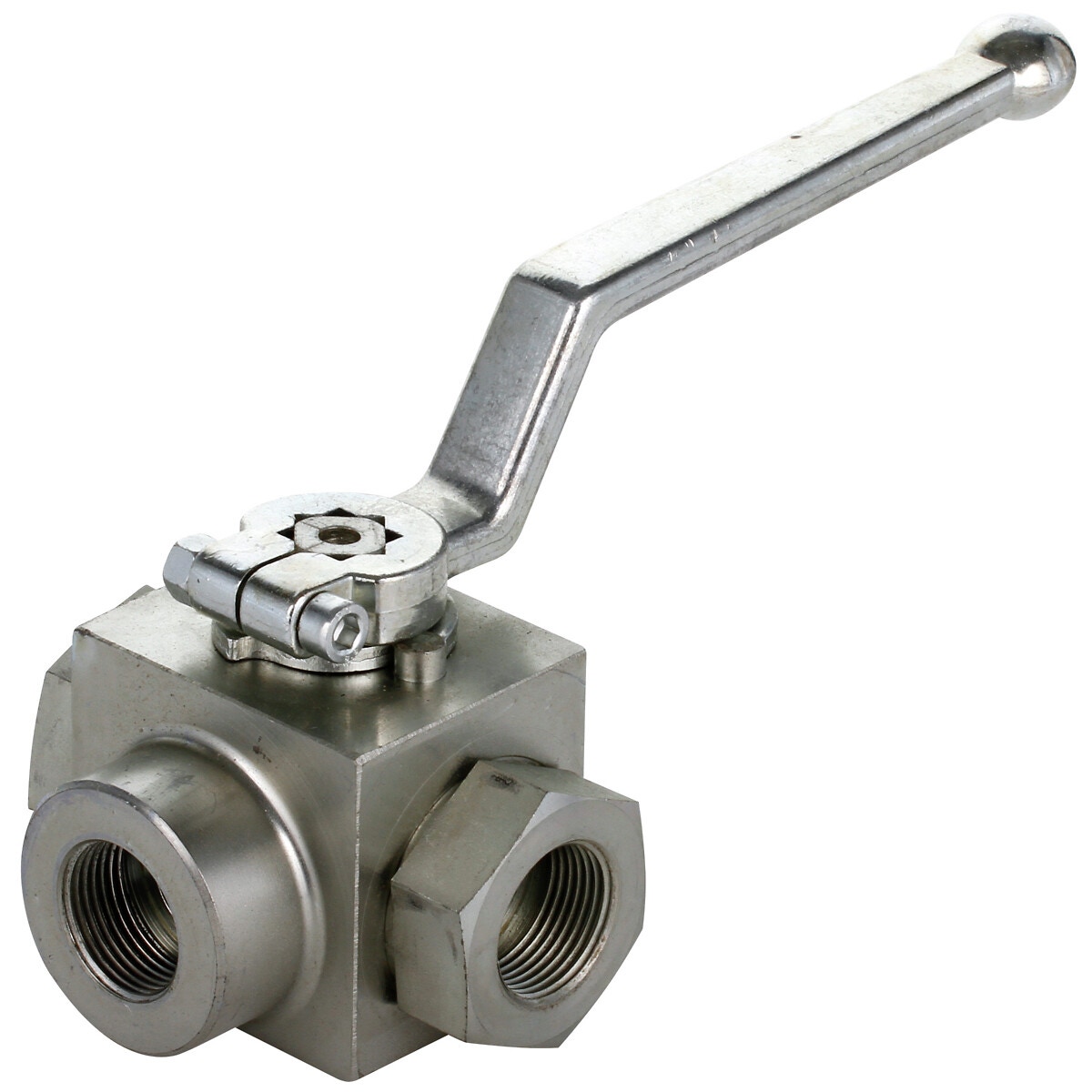

3 VIRZIENU LODVEIDA VĀRSTS BSP 3/4 420BAR L-VEIDA
97,90 €
✓ Pieejams
Description
type L scheme | material zinc plated steel | operating temperature -20…+100 °C | warning! pressure inlet only from center port 1 | hose DN 20 | thread G 3/4" | max. pressure 420 bar | A 57 | B 23,4 | C 95 | D 62,5 | E 14 | F 73,5 | G 49 | G1 75 | H 180 | I 106,5 | L 21 | ØM G 3/4" | CH 41 | SW 14 | ØLW 20 | weight 1,58 kg
Attributes
Thread: G 3/4" -14 | Package length (cm): 11 | Package width (cm): 23.5 | Package height (cm): 11.5 | Gross weight (kg): 1.841000 | EAN: 6418914894044
