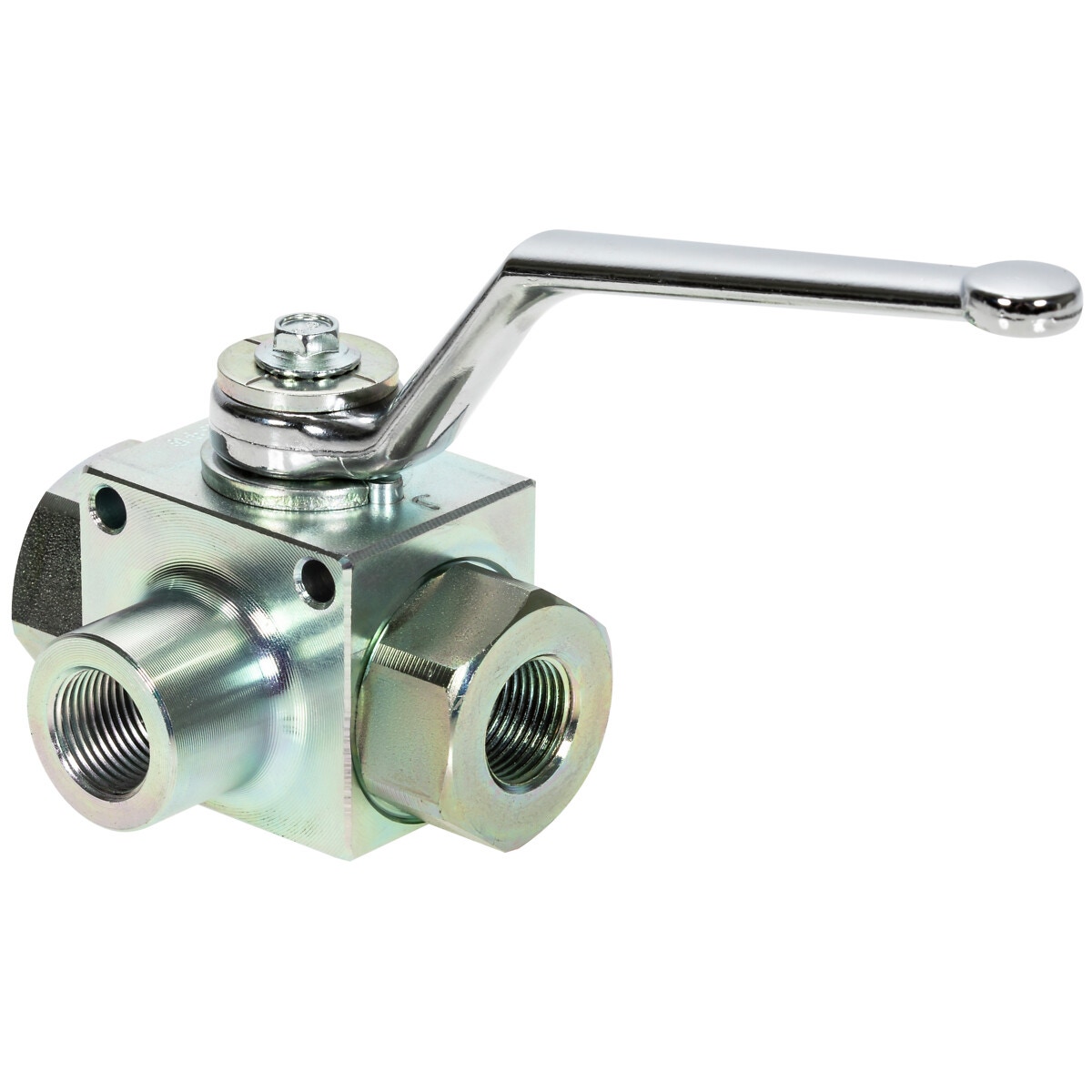

3 VIRZIENU LODVEIDA VĀRSTS BSP 1/4 500BAR T-VEIDA

Description

type L scheme, ports 1->2-3 or 1->3 can be chosen | material zinc-plated steel | NBR seals | operating temperature -0…+100 °C | hose DN 6 | thread G 1/4” | max. pressure 500 bar | A 35 | B 14.5 | C 71 | D 42.4 | E 11 | F 49 | G 30 | G1 48.5 | H 110 | I 91.5 | L 15.5 | ØM G 1/4" | CH 24 | SW 9 | ØLW 6 | weight 0.53 kg

Attributes

Thread: G 1/4" -19 | Package length (cm): 15.2 | Package width (cm): 8.6 | Package height (cm): 5 | Gross weight (kg): 0.508000 | EAN: 6418914198104
