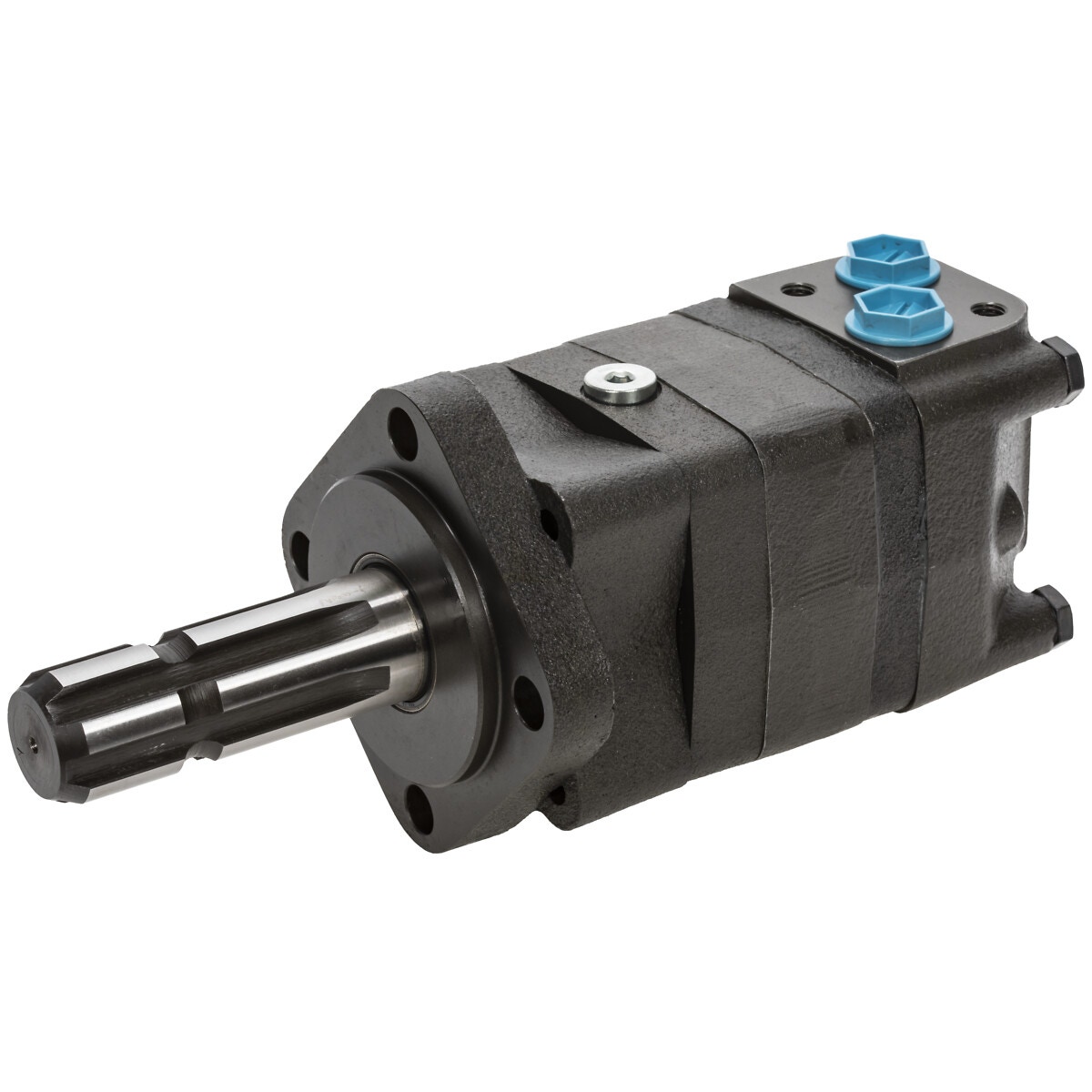

ORBITMOTOR MSY200 SL PTO ASS

Description

heavy duty series reinforced motor that withstands 15-20% more torque than a normal motor | applications e.g. road- and street sweeping machines or to power equipment with a tractor PTO shaft | can be used as a replacement to Danfoss 151F2218 for example | 4-bolt SAE A-4 mounting | main ports G 1/2" | drain port G 1/4" | disk valve roll-gerotor motor | SL-axle 34,85 mm PTO DIN 9611 Form 1 | displacement 200 cm³/r | rotation speed continuous 375 / intermittent 450 rpm | max. torque 56 / intermittent 64 daNm | max. pressure continuous 210 / intermittent 250 / peak 300 bar | max. oil flow continuous 75 / intermittent 90 l/min | weight 11.2 kg

Attributes

Shaft: 6-splined shaft | Thread: G 1/2" -14 | Package length (cm): 38.5 | Package width (cm): 16.5 | Package height (cm): 16 | Gross weight (kg): 11.755000 | EAN: 6418914198807
