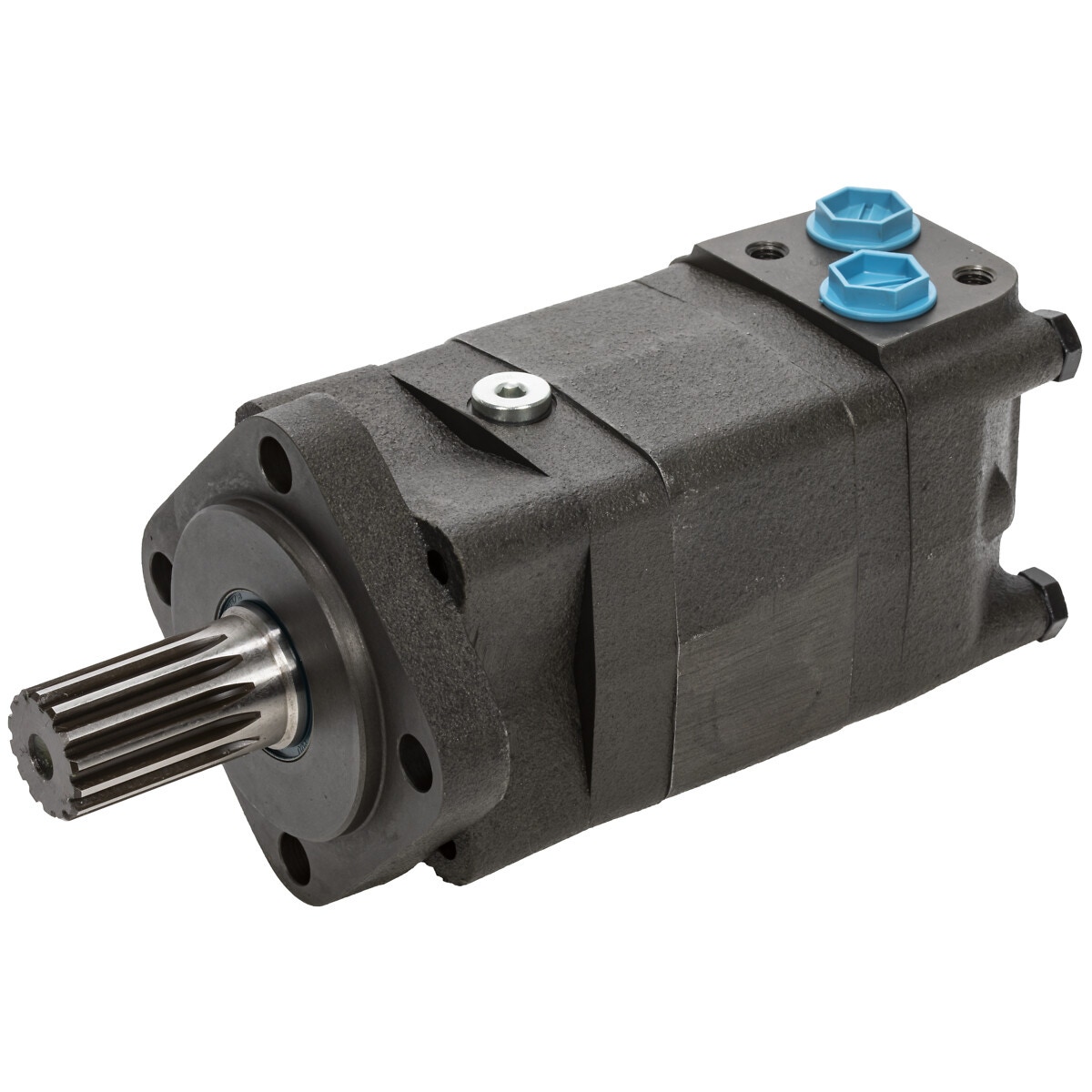

ORBITMOTOR MSY315 SH 14T ASS

Description

Heavy-duty series reinforced motor that withstands 15-20% more torque than a standard motor | Applications: for example, road and street sweepers | can be used as a replacement for the Danfoss 151F2213, for example | 4-bolt SAE A-4 mounting | main ports G 1/2" | drain port G 1/4" | disk valve roll-gerotor motor | SH-axle 1 1/4" 14-splined ANSI B92.1-1970 | displacement 314.9 cm³/r | rotation speed continuous 240 / intermittent 285 rpm | max. torque 90 / intermittent 96 daNm | max. output 17 / intermittent 20.2 kW | max. pressure continuous 210 / intermittent 250 / peak 300 bar | max. oil flow: continuous 75 / intermittent 90 l/min | weight 12.4 kg

Attributes

Shaft: 14-splined shaft | Thread: G 1/2" -14 | Package length (cm): 38.5 | Package width (cm): 16.5 | Package height (cm): 16.5 | Gross weight (kg): 12.646000 | EAN: 6418914198852
