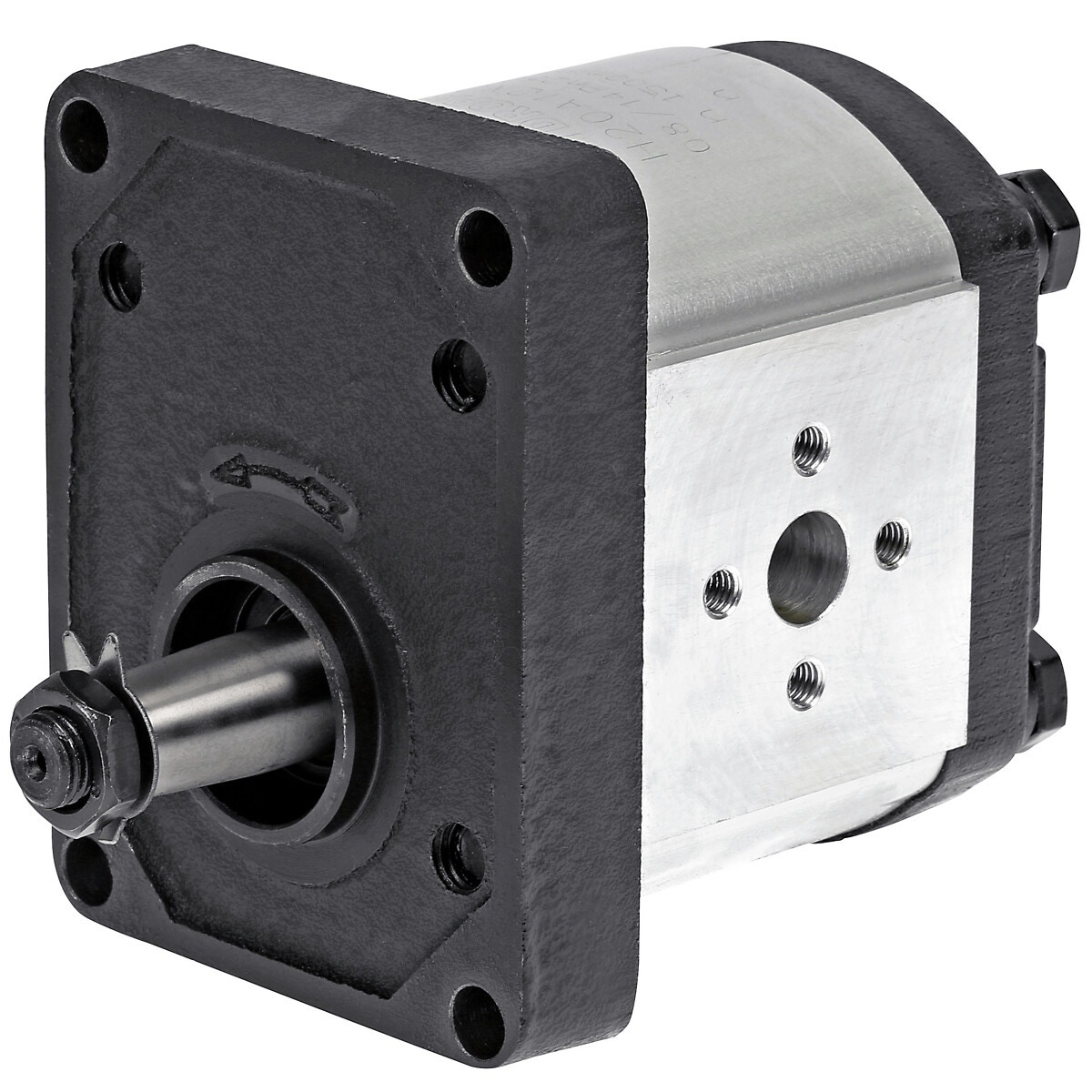

HYDRAULIC PUMP 6.3. GROUP 2 FLANGE PORTS
136,20 €
✓ Available
Description
aluminium body | flange ports | tapered shaft 1:8 | counter clockwise rotation S (A) | rotational capacity 6,3 cm³/r | max. 3500 rpm | max. pressure 250 bar | flow 8,69 l/min (at 1500 rpm) | flow 20,29 l/min (max. rpm) | A 42,5 mm | B 80 mm | inlet E 30,2 mm / F 13,1 mm / d M6 | outlet E 30,2 mm / F 13,1 mm / d M6
Attributes
Package length (cm): 9 | Package width (cm): 12.5 | Package height (cm): 17.5 | Gross weight (kg): 3.508000 | EAN: 6418914922747
