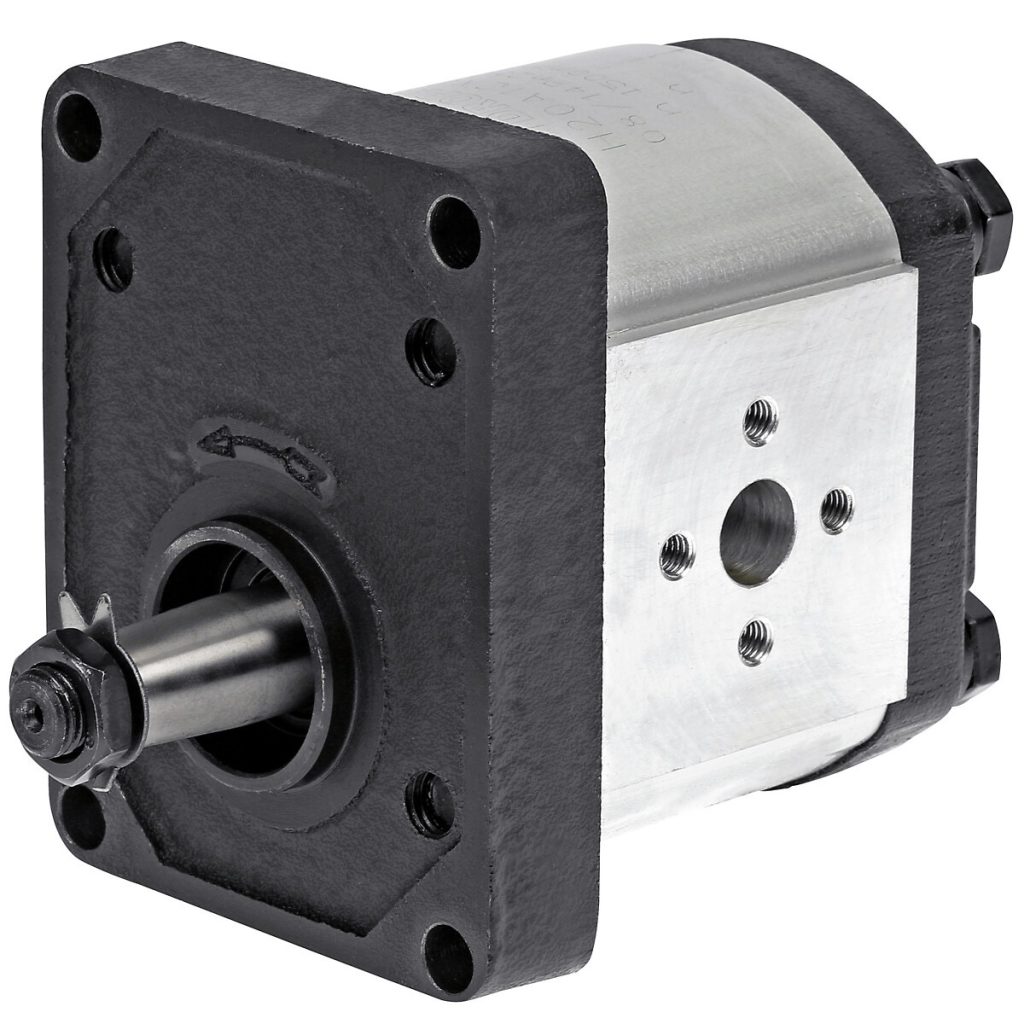

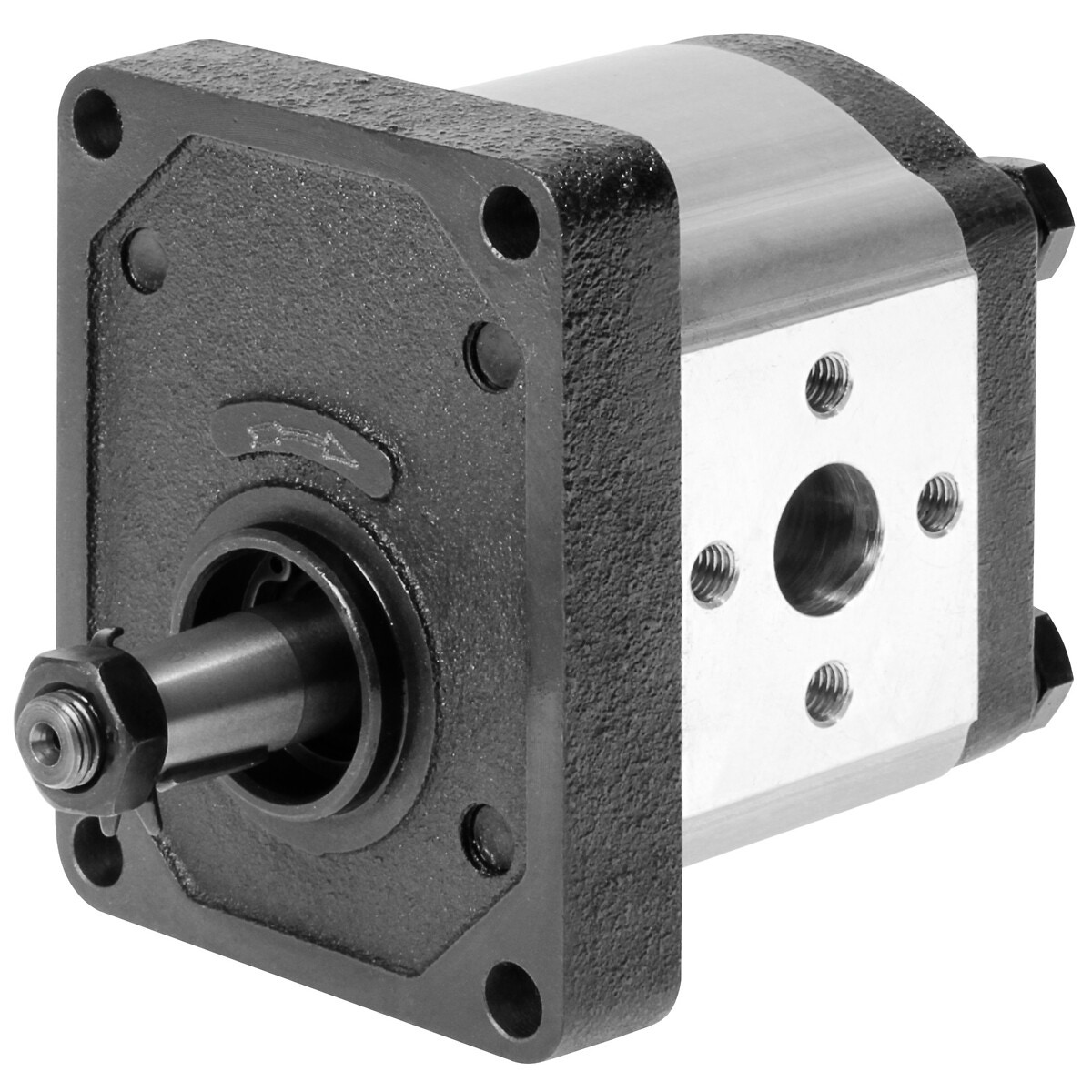

HYDRAULIC PUMP 11 2. GROUP FLANGE PORTS
136,20 €
✓ Available
Description
aluminium body | flange ports | tapered shaft 1:8 | clockwise rotation D (C) | rotational capacity 11,3 cm³/r | max. 3500 rpm | max. pressure 250 bar | flow 15,76 l/min (at 1500 rpm) | flow 36,78 l/min (max. rpm) | A 48 mm | B 91,1 mm | inlet E 39,7 mm / F 19 mm / d M8 | outlet E 30,2 mm / F 14,2 mm / d M6
Attributes
Package length (cm): 9.5 | Package width (cm): 12 | Package height (cm): 17 | Gross weight (kg): 3.610000 | EAN: 6418914926660
