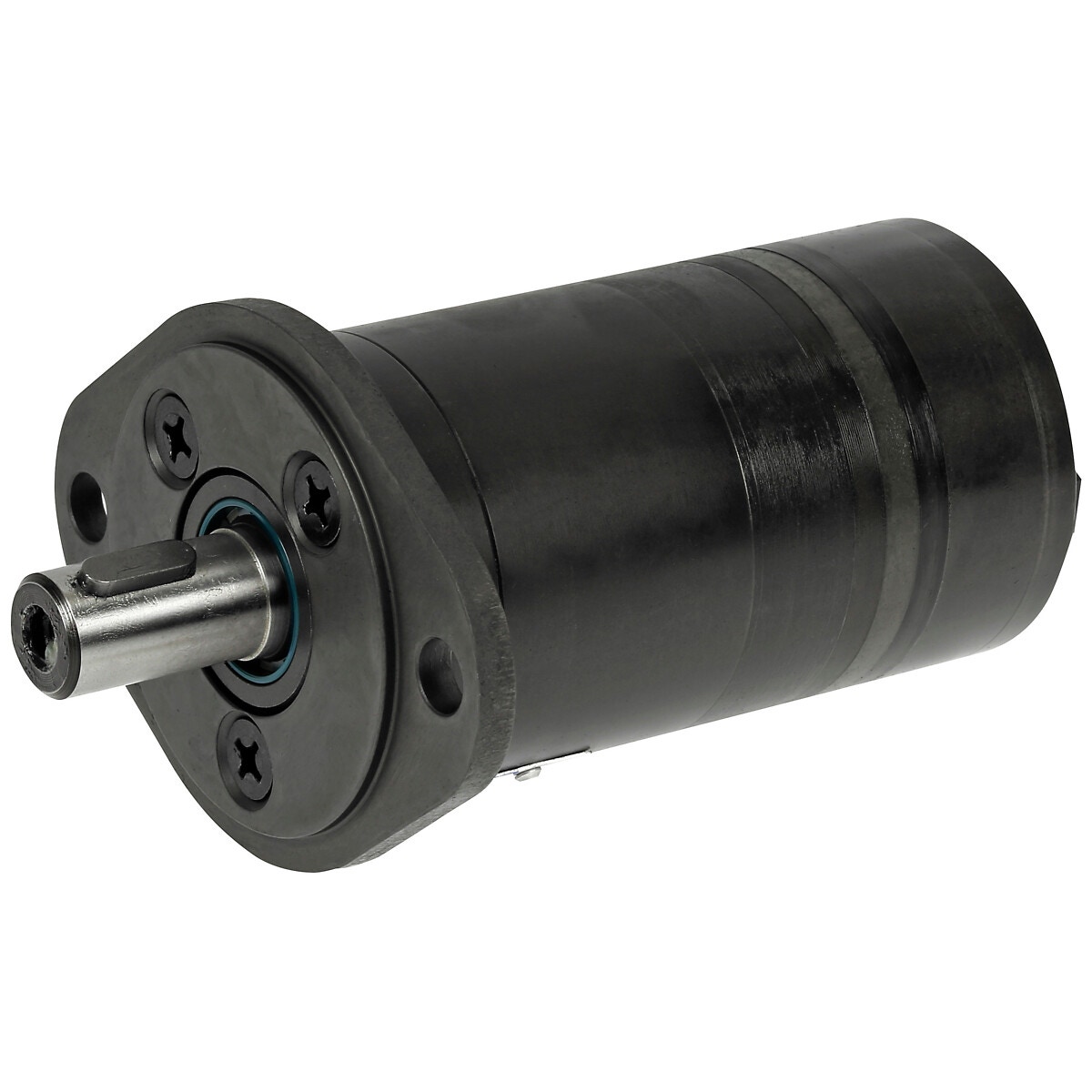

Gerotora motors hmm 20
259 €
✓ Available
Description
16 mm straight shaft, parallel key A5x5x16 DIN6885 | main ports G 3/8" | drain port G 1/8" | operating temperature -40…+140 °C | applications: for example conveyors, screw conveyors in silos, sand spreaders etc. | includes 2-bolt mounting flange | displacement 20 cm/r | max. speed continuous 1000 / intermittent 1250 rpm | min. speed 30 rpm | max. torque continuous 2,5 / intermittent 3,5 / peak 5,1 Nm | max. output continuous 2,4 / intermittent 3,2 kW | max. pressure continuous 105 / intermittent 140 / peak 200 bar | max. oil flow continuous 20 / intermittent 25 l/min | A 109 mm | B 8,5 mm | weight 2,1 kg
Attributes
Shaft: 16 mm straight shaft | Thread: G 3/8" -19 | Package length (cm): 20 | Package width (cm): 10.5 | Package height (cm): 9 | Gross weight (kg): 2.272000 | EAN: 6418914944596
