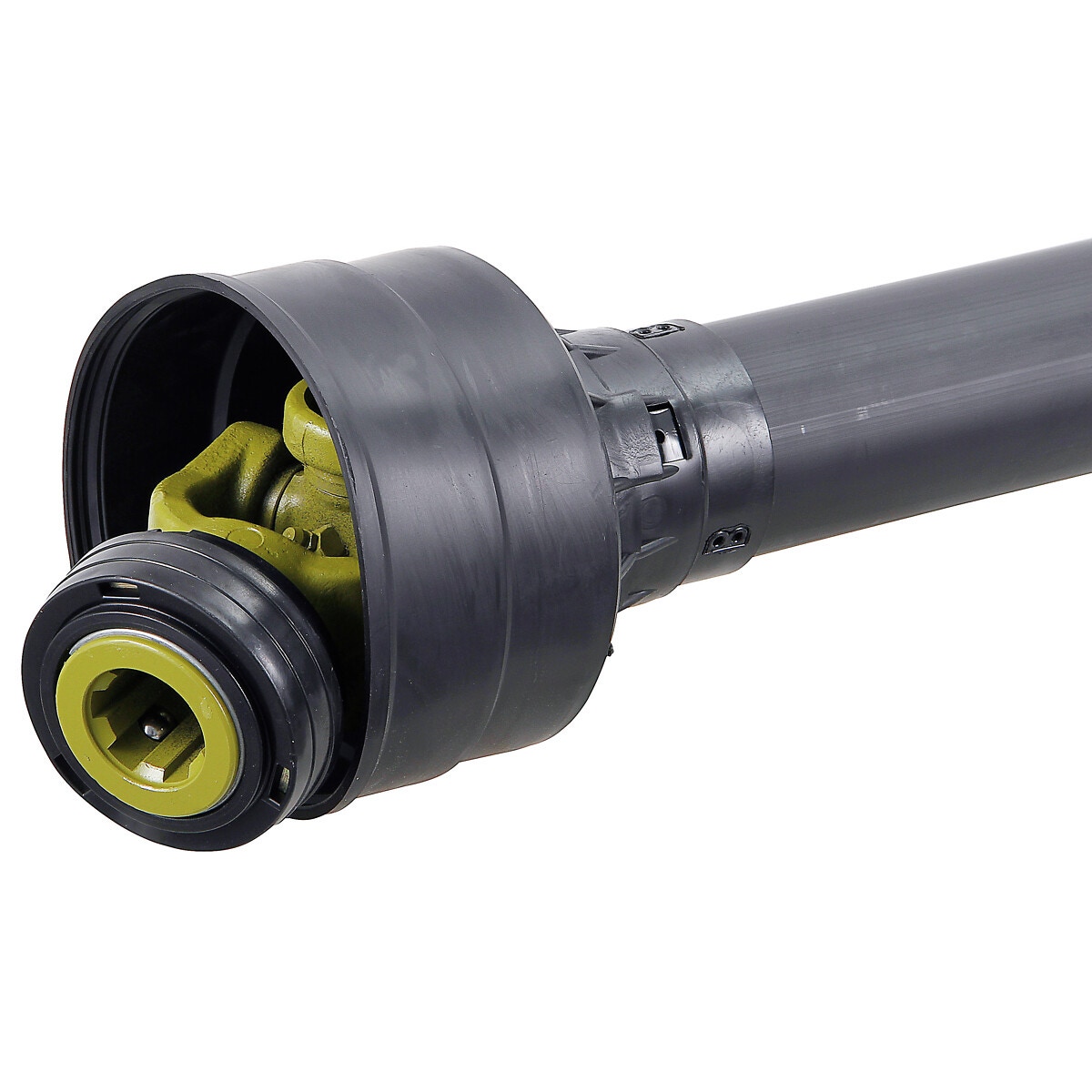

Вал Puto b103 длиной 1,3/8-6

Описание

type: B03 (103) | splines: 6 | power 540 rpm: 22 kW / 30 hp / 390 Mn | power 1000 rpm: 35 kW / 47 hp / 330 Mn | length: L 1010 mm, M min. 1214 mm, M max 1654 mm | A/B: 27 x 70 mm | A 36 mm, S 3,2 mm | A 43,5 mm, S 3,4 mm | max. static load limit: 640 Nm | instructional targets of use: rakes, tedders, mowers, small sprinkler pumps, trailers | basis of calculation: joint angle 5°, life 1000 h

Атрибуты

Universal joint size: 27 x 70 mm | Spline type: 1 3/8" Z6 | Profile tube type: Triangular | Package length (cm): 122 | Package width (cm): 17 | Package height (cm): 16 | Gross weight (kg): 12.120000 | EAN: 6418914648418
