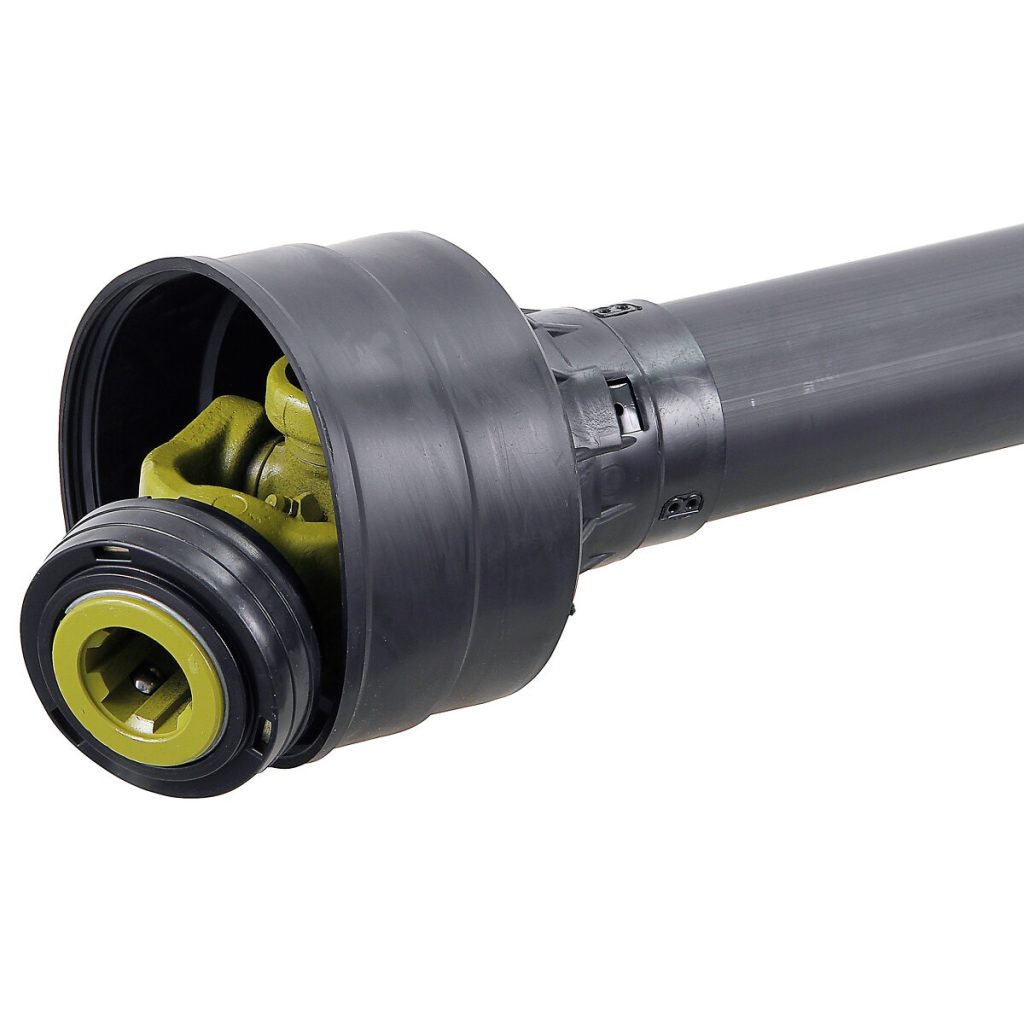

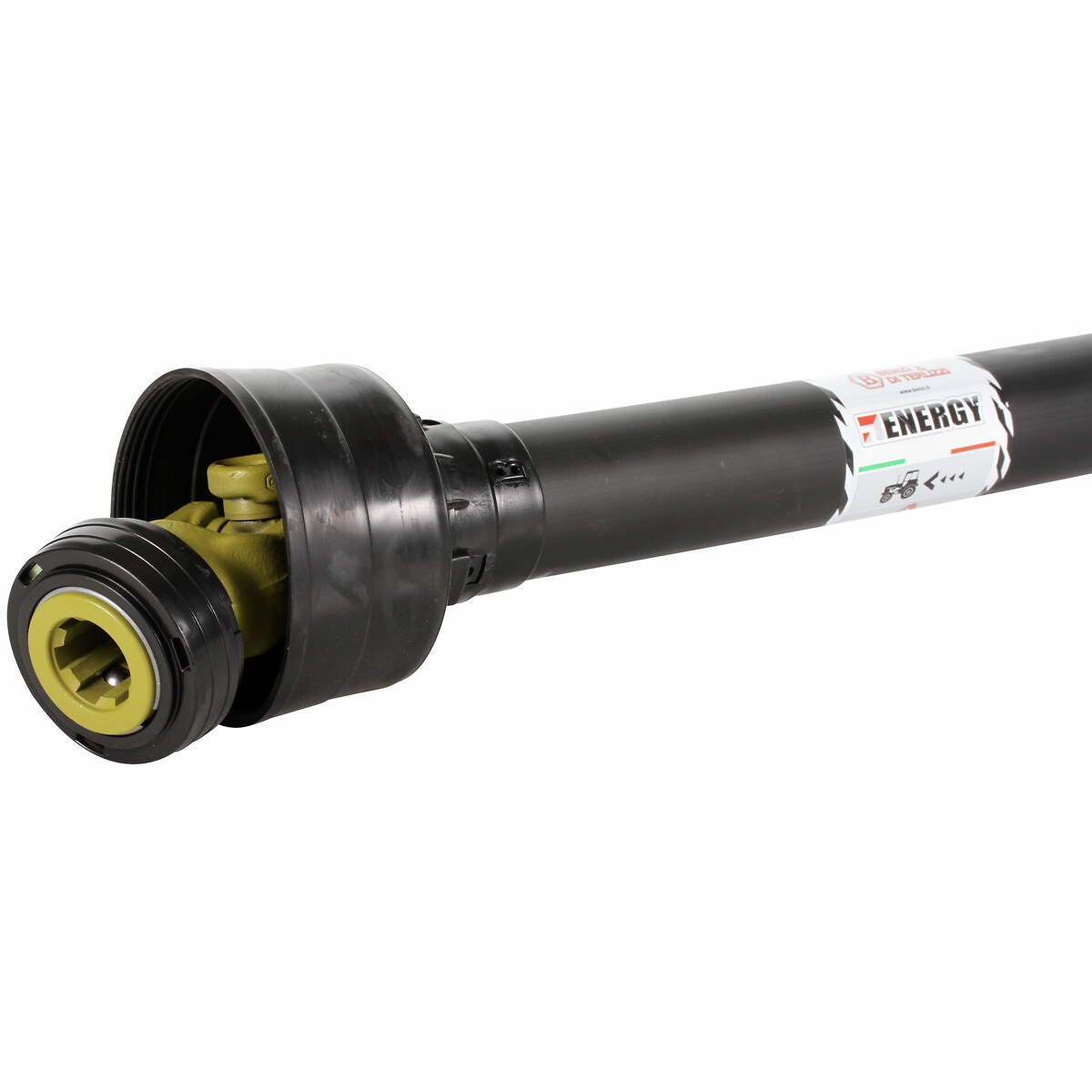

Вал пто w2100 1.3/8-6

Описание

type: L01 (W2100) | splines: 6 | power 540 rpm: 12 kW / 16 hp / 210 Mn | power 1000 rpm: 18 kW / 24 hp / 175 Mn | length: L 860 mm, M min. 1050 mm, M max 1420 mm | A/B: 22 x 54,8 mm | A 23,5 mm, B 31, S 3,6 mm | A 30 mm, B 39 mm, S 2,8 mm | max. static load limit: 850 Nm | instructional targets of use: light rakes, mowers, tedders, sprayers, concrete mixers, potato machines, skidders, small circular saws etc. | basis of calculation: joint angle 5°, life 1000 h

Атрибуты

Universal joint size: 22 x 54,8 mm | Spline type: 1 3/8" Z6 | Profile tube type: Lemon | Package length (cm): 105.5 | Package width (cm): 13.5 | Package height (cm): 13.5 | Gross weight (kg): 8.220000 | EAN: 6418914648210
