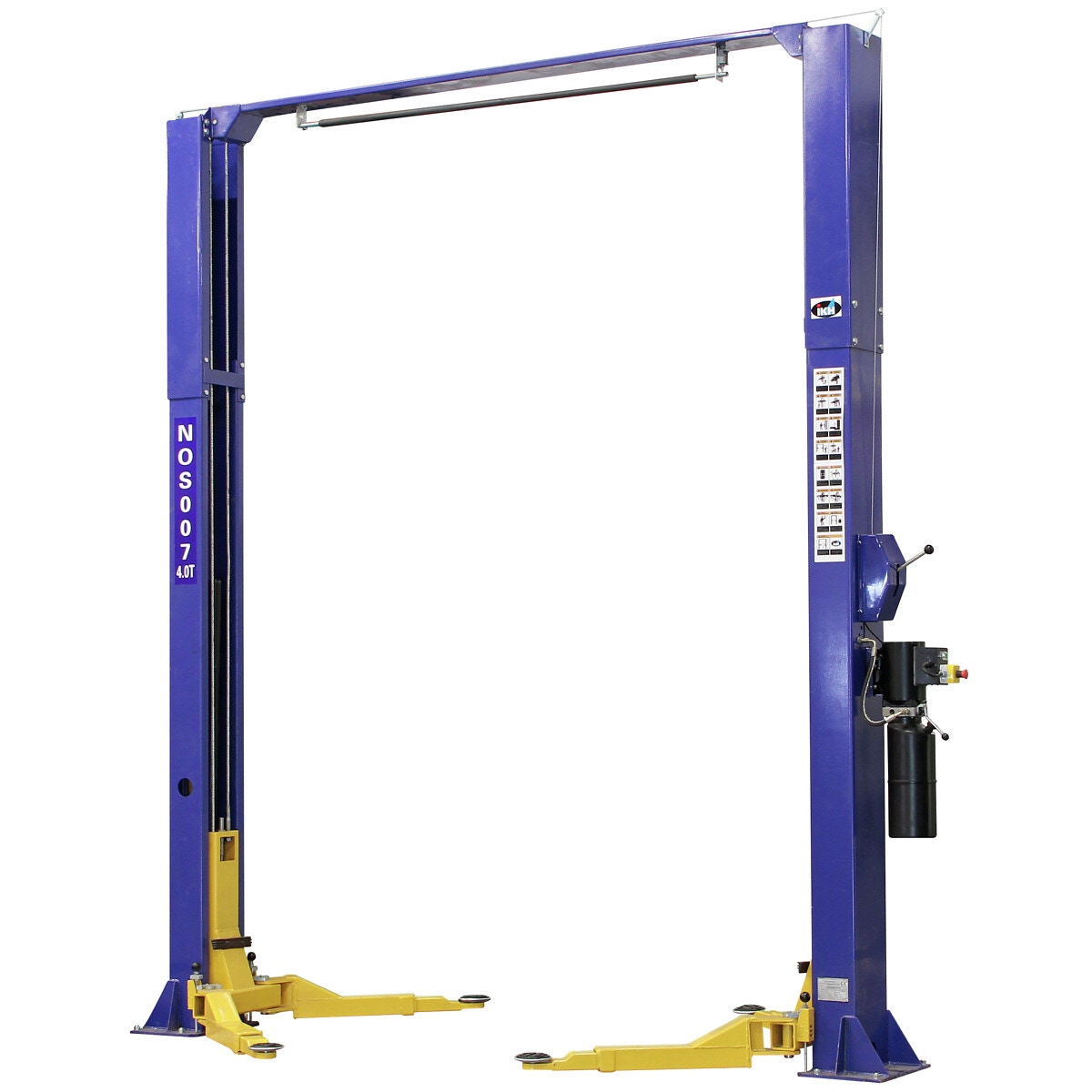

Двухстоечный автомобильный подъемник, грузоподъемность 4 тонны

Описание

max. capacity 4000 kg | max. lifting height 2040 mm | min. lifting height 85 mm | drive-through clearance max. 2600 mm | safety mechanism | lifting time approx. 45 sec. | columns distance (from the outer edge) 3450 mm | columns distance (from the inner edge) 2800 mm | height overall 2830 mm | new generation improved clear floor Meganex two post lift | bending of the frame is controlled by a minimum of 5 mm material and with reinforcements | due to its clear floor feature it is excellent for example transmission repair work. Clear floor lift also reduces tripping hazard when working under a car. | limit switches are located inside the frame protecting them from any damage | the lift has asymmetric lift arms that are easy to set to the correct position without moving the vehicle | lift arm locks are adjustable and replaceable due to bolt fastening (no need for welding) | lift arm and screw pad holes are reinforced with tube in order to prevent the screw pad from bending or wearing (large contact surface) | the lift capacity is 4000 kg (structure withstands 6-ton lifts) | the lift wire thickness Ø 9.5 mm (normally Ø 8 mm or less). Wire fastening is straight, thus preventing wire damage. | due to the lift arm design lifting a low profile vehicle is made possible | hydraulic cylinders are hard chrome plated and double sealed to ensure long and trouble-free operation | thanks to these improvements, we are able to grant the frame a 60 month warranty as well as 12 months warranty for hydraulic and electrical parts

Атрибуты

Package length (cm): 290 | Package width (cm): 75 | Package height (cm): 54 | Gross weight (kg): 650.000000 | EAN: 6418914846104
