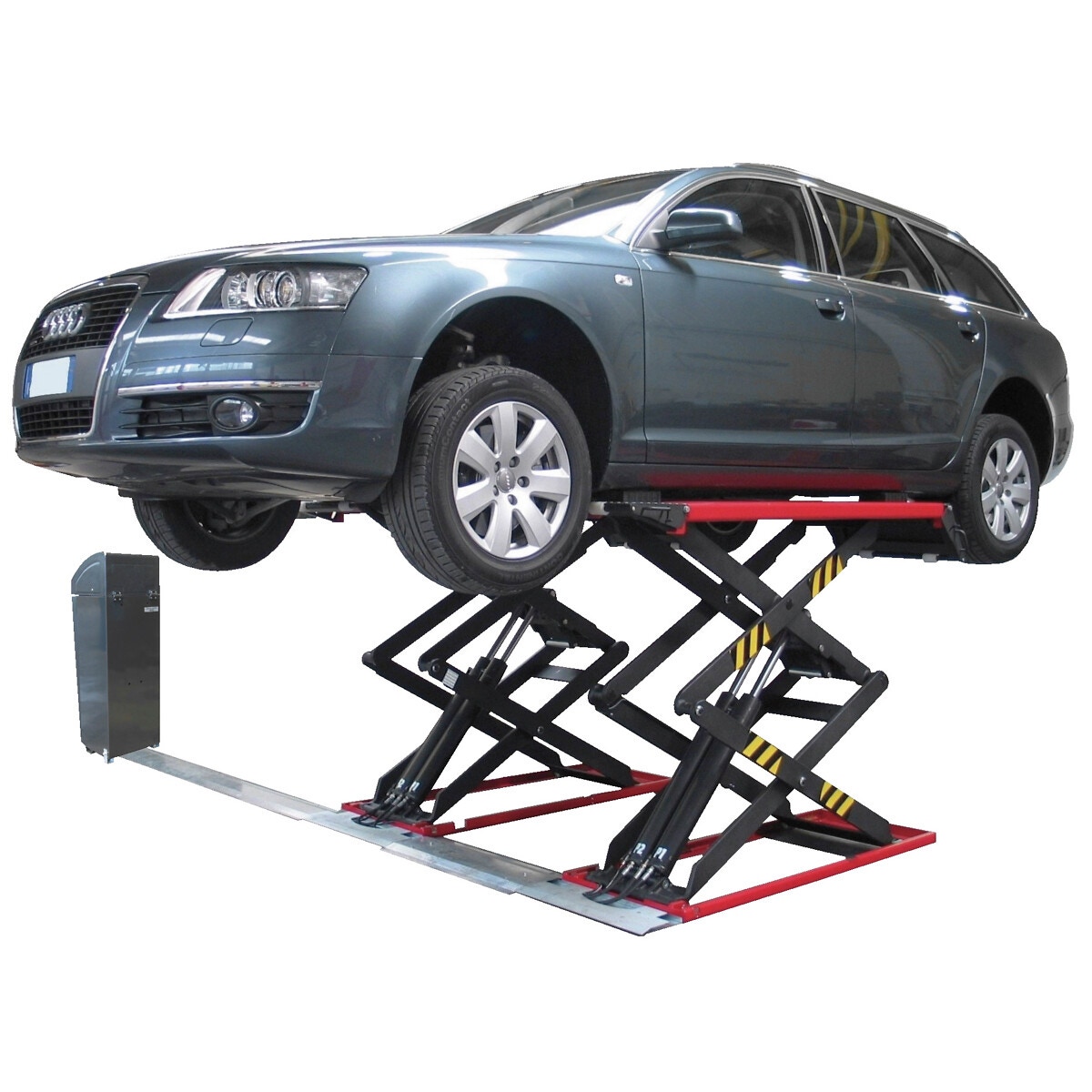

НОЖНИЧНЫЙ ПОДЪЕМНИК 3,2Т 135-1987ММ 400В

Описание

max. capacity 3200 kg | max. lifting height 1945 mm | min. platform height 105 mm | platform length 1470 mm (1990 mm with ramps) | platform width 600 mm | power 2,2 kW / 400 V | electro-hydraulic | lifting time approx. 35 sec. | descent time approx. 45 sec. | noise level <74 dB(A) | protection class IP54 | working environment temperature -10°C to +50°C | platforms distance (from the outer edge) 1960 mm | platforms distance (from the inner edge) 800 mm | weight approx. 730 kg | gear pump | displacement 2,6 cm³ | relief valve 270 bar | max. pressure 260 bar

Атрибуты

Package length (cm): 210.5 | Package width (cm): 79 | Package height (cm): 87 | Gross weight (kg): 770.000000 | EAN: 6418914857339
