VĪTŅSAVIENOJUMS 20MM-G1/2 ĀRĒJAIS 90 PPS1

Description

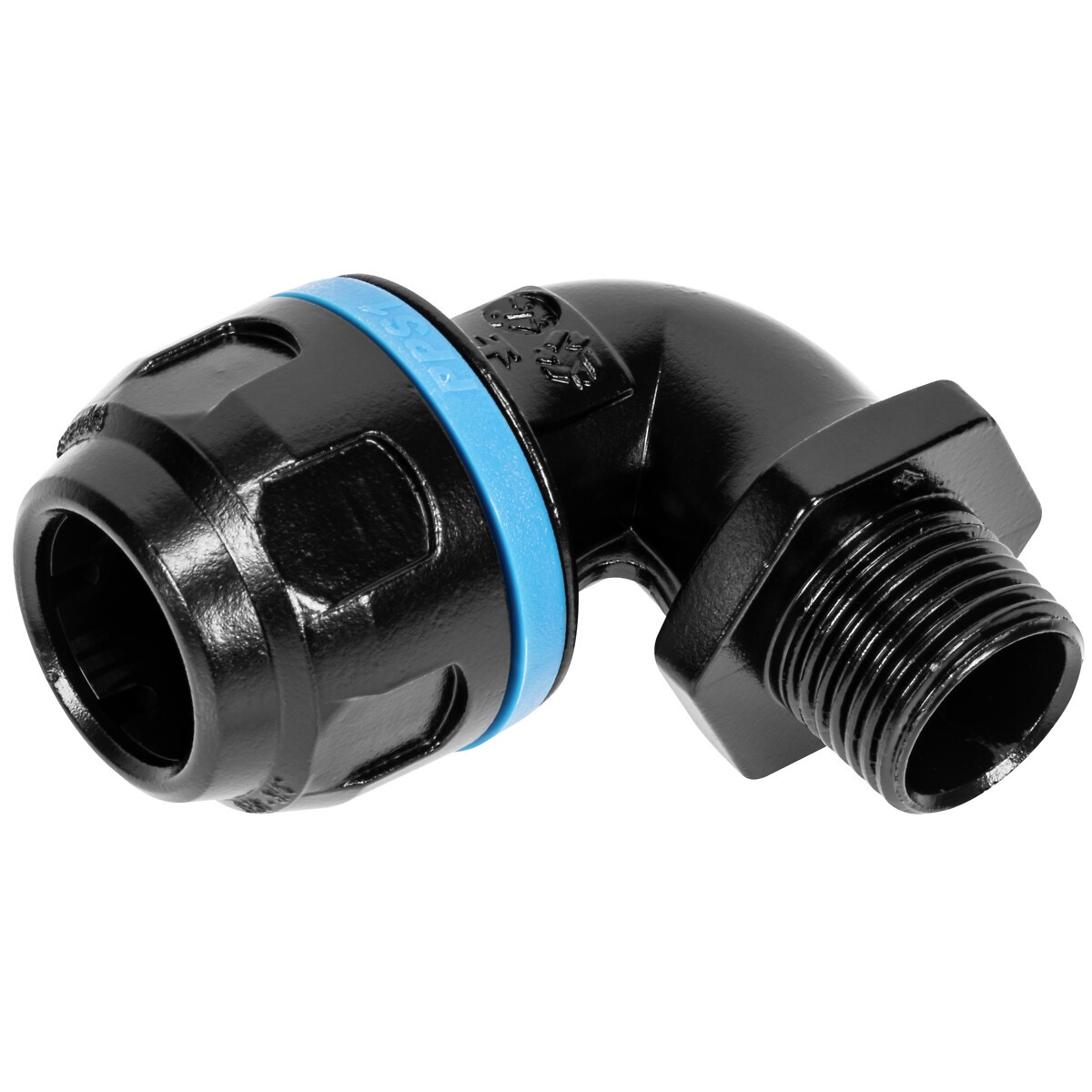

Prevost 90° elbow fitting PPS1 9CM | the new PPS Grip Concept is based on a stainless steel ring with teeth that penetrate the aluminium | leak tightness is achieved via a new contoured and lubricated seal, with optimised design and properties (the seal remains perfectly leak tight even under the harshest conditions) | material 100 % aluminium, EN AB 46100 | standard DESP 2014/68/UE REACH | operating temperature -20…+80 °C | fluid compressed air | operating pressure 0 – 16 bar | vacuum -0,98 bar | thread G 1/2” | pipe outer diameter Ø 20 mm | A 38 mm | B 72 mm | C 61 mm | D 32 mm

Attributes

Package length (cm): 8 | Package width (cm): 8.1 | Package height (cm): 4.1 | Gross weight (kg): 0.089000 | EAN: 3660058301640
