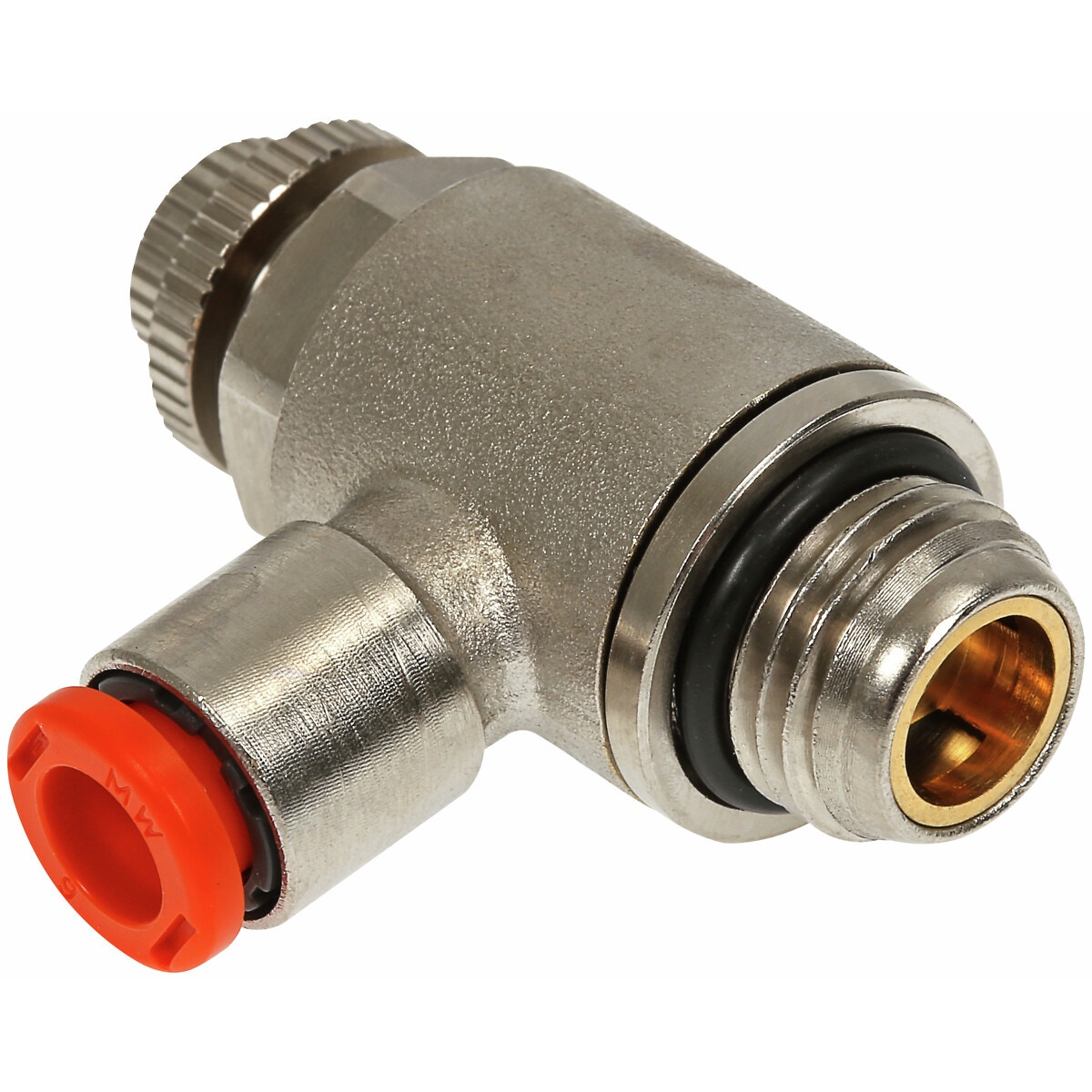

Plūsmas regulators 8×1/8 mrf priekš cilindrs

Description

Compact N series for cylinder | regulation with either a screwdriver and/or knob, can be fixed with a ring nut | thread G 1/8" | tube Ø 8 mm | max. operating pressure 10 bar | max. flow rate on regulation at 6,3 bar 400 Nl/min | max. flow rate on exhaust at 6,3 bar with closed pin 390 Nl/min | max. flow rate on exhaust at 6,3 bar with open pin 650 Nl/min | operating temperature -10…+70 °C | fluid: lubricated or unlubricated filtered air | F 1/8" | Ø 8 | CH 12 | A min. 33.5 | A max. 37.6 | B 24.8 | C 6 | D 9.8 | E 13.8

Attributes

Thread: G 1/8" -28 | Package length (cm): 3.2 | Package width (cm): 1.4 | Package height (cm): 3.5 | Gross weight (kg): 0.030000 | EAN: 8024986545098
