VIRZIENA REGULĒŠANAS VĀRSTS 1/2 80L 2-SPOOL 2 DARBĪBAS

Description

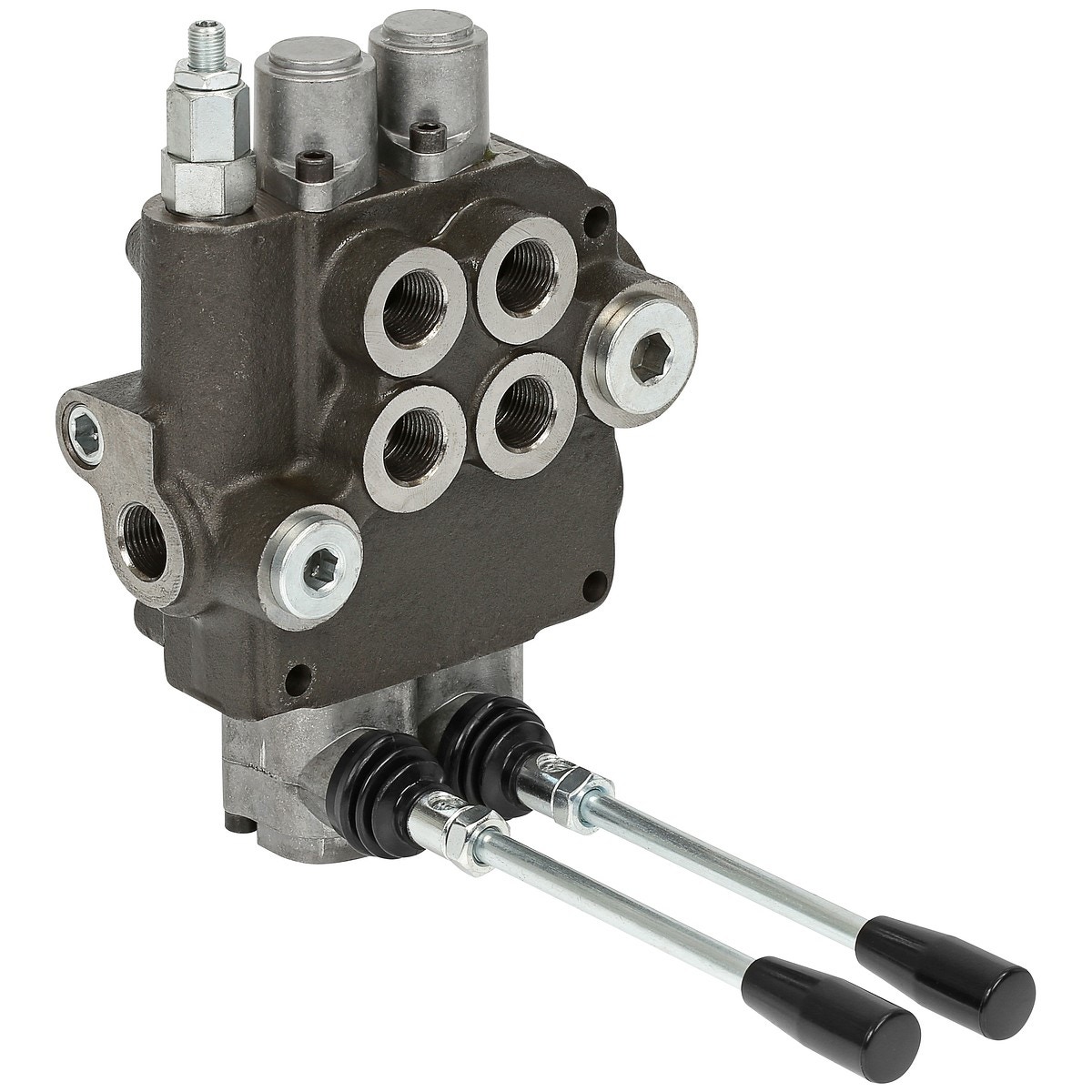

P80 monoblock is manually or cable operated hydraulic directional control valve | pressure relief valve and non-return valve included | spring-centered spools | possible to connect in series (N-port BSP 3/4") | material: body made of cast iron, spools made of steel with hard chrome plating | 2-spool | spool type 2-acting | max. flow 80 l/min | max. operating pressure 300 bar | max. pressure in return line 50 bar | work and pressure port BSP 1/2" | return port BSP 3/4" | A 80 | B 94 | C 160 | D 103

Attributes

Thread: G 1/2" -14, G 3/4" -14 | Package length (cm): 22.5 | Package width (cm): 16 | Package height (cm): 8.5 | Gross weight (kg): 7.078000 | EAN: 6418914961319
