Vienvirziena plūsmas regulators 1/2 rflu

Description

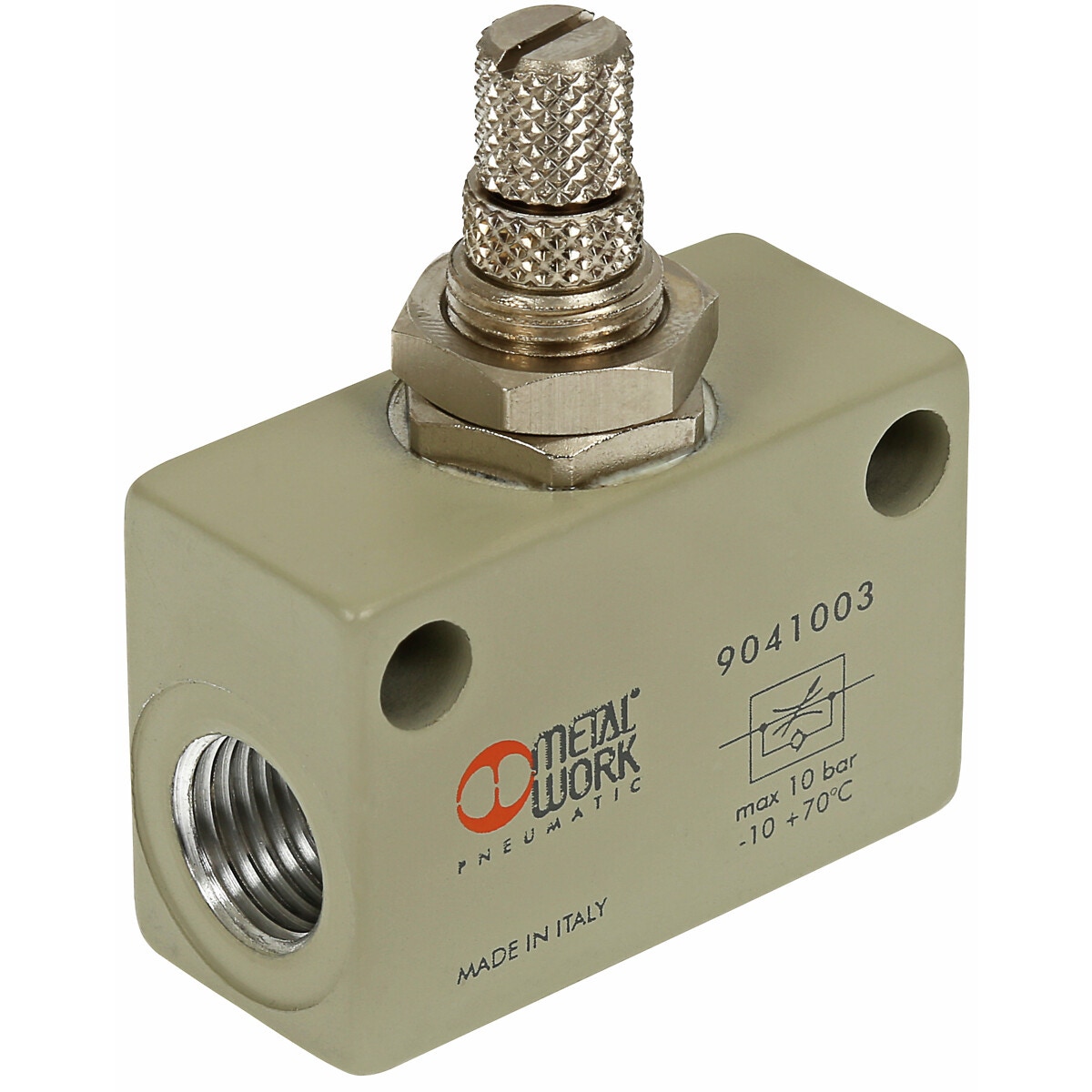

RFL series (type U) | the in-line flow regulator regulates the speed of the piston rod in the pneumatic cylinders | flow regulator valve is used to adjust flow speed of actuators in one direction; flow is free in the reverse one | regulation manual or with a screwdriver | material body aluminium, adjusting knob brass, seals NBR | thread G 1/2" | max. operating temperature +70 °C | max. pressure 10 bar | P 11 | E 44 | H M15x1 | Nmax 7.5 | A 59 | B 67 | C 30 | G 43.5 | I 24 | D 40 | M 35 | CH 20 | L 6.5

Attributes

Thread: G 1/2" -14 | Package length (cm): 5.9 | Package width (cm): 3 | Package height (cm): 6.7 | Gross weight (kg): 0.189000 | EAN: 8024986178975
