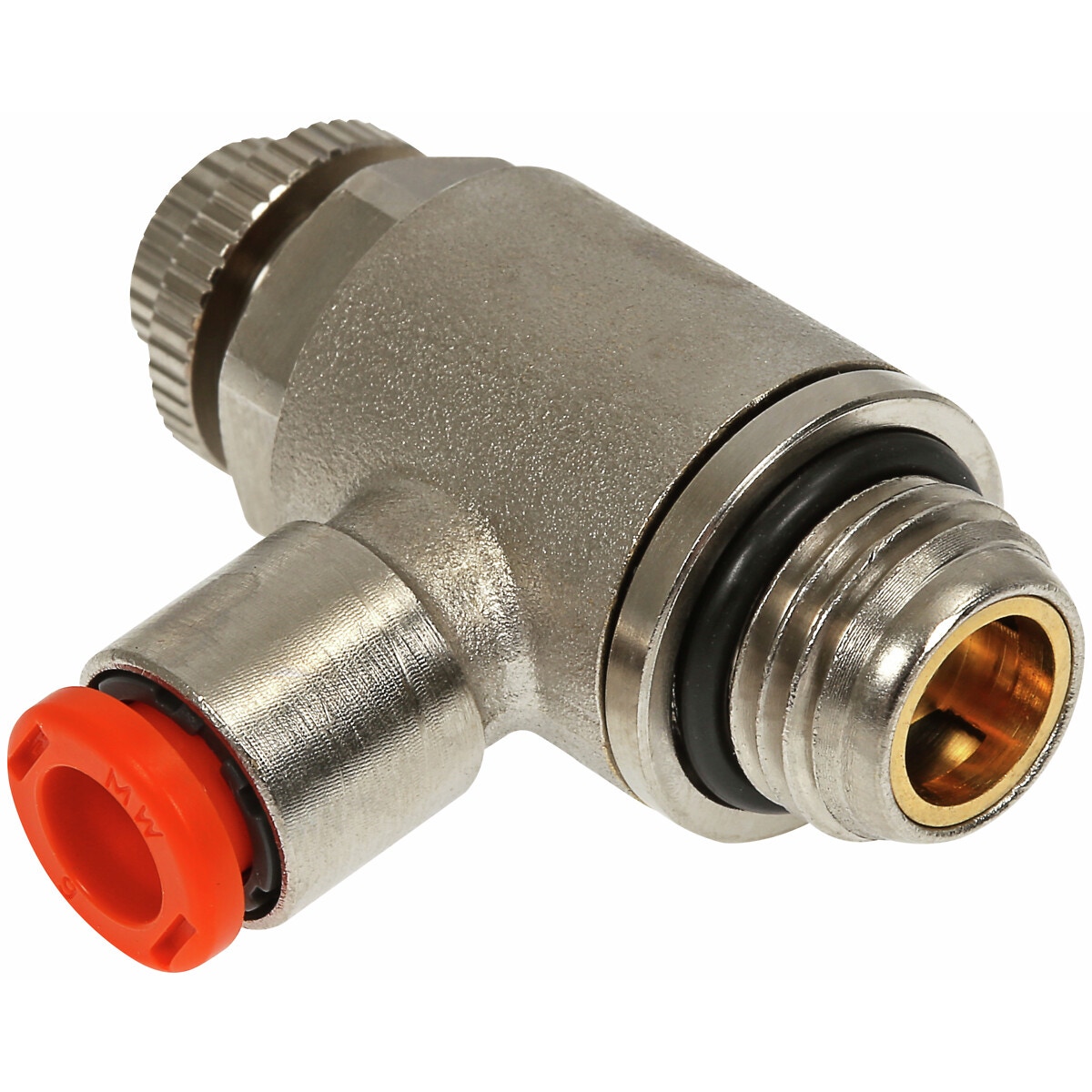

Plūsmas regulators 10×1/4 mrf priekš cilindrs

Description

Compact N series for cylinder | regulation with either a screwdriver and/or knob, can be fixed with a ring nut | thread G 1/4" | tube Ø 10 mm | max. operating pressure 10 bar | max. flow rate on regulation at 6,3 bar 950 Nl/min | max. flow rate on exhaust at 6,3 bar with closed pin 500 Nl/min | max. flow rate on exhaust at 6,3 bar with open pin 1150 Nl/min | operating temperature -10…+70 °C | fluid: lubricated or unlubricated filtered air | F 1/4" | Ø 10 | CH 15 | A min. 38.8 | A max. 43.7 | B 31.4 | C 8 | D 11.1 | E 16.5

Attributes

Thread: G 1/4" -19 | Package length (cm): 4 | Package width (cm): 1.8 | Package height (cm): 4.1 | Gross weight (kg): 0.057000 | EAN: 6418914990371
