T-VEIDA SAVIENOJUMS 25MM-G1/2 IEKŠĒJĀ VĪTNE PPS1

Description

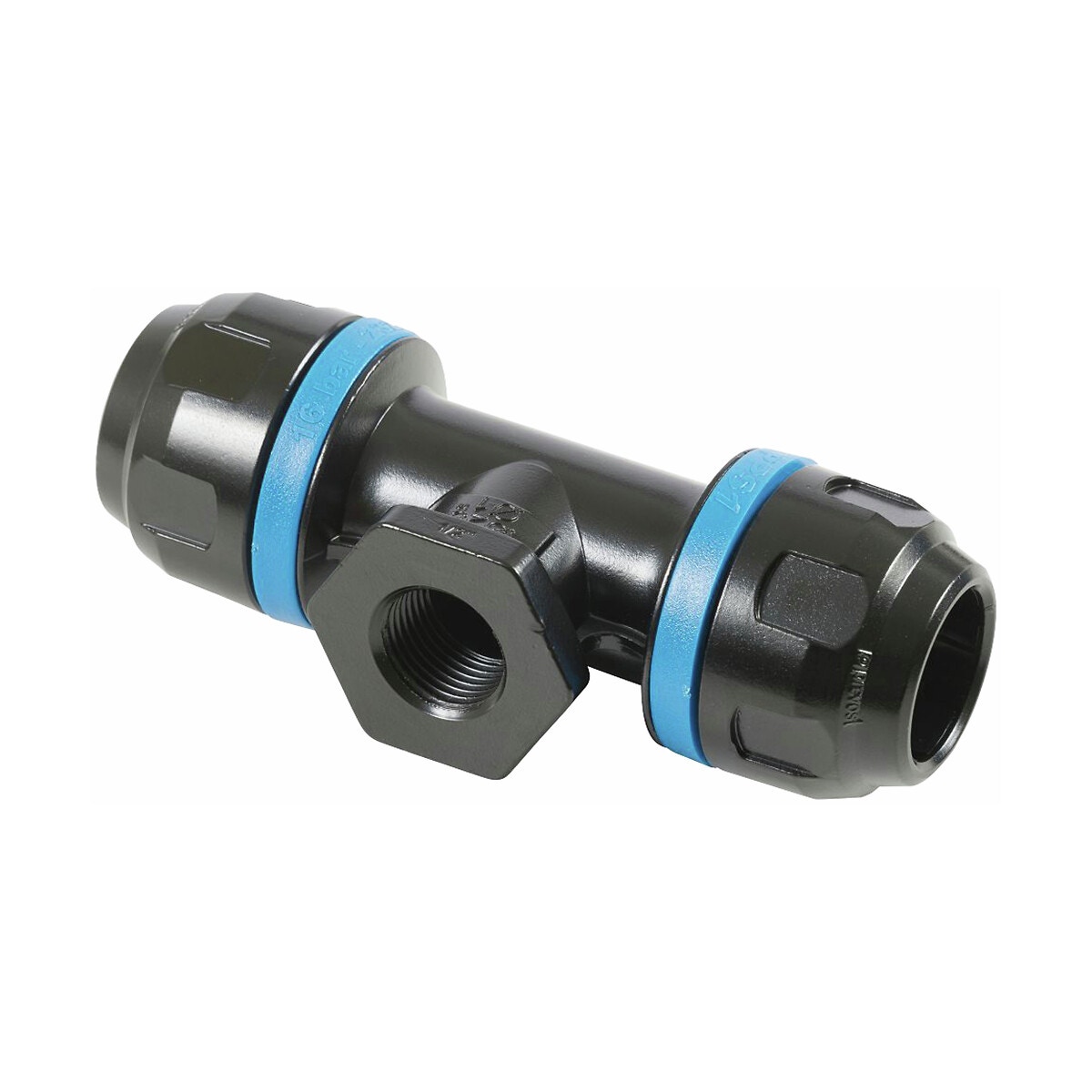

Prevost female threaded T-fitting PPS1 TT | the new PPS Grip Concept is based on a stainless steel ring with teeth that penetrate the aluminium | leak tightness is achieved via a new contoured and lubricated seal, with optimised design and properties (the seal remains perfectly leak tight even under the harshest conditions) | material 100 % aluminium, EN AB 46100 | standard DESP 2014/68/UE REACH | operating temperature -20…+80 °C | fluid compressed air | operating pressure 0 – 16 bar | vacuum -0,98 bar | thread G 1/2” | pipe outer diameter Ø 25 mm | A 46 mm | B 131 mm | C 56 mm | D 38 mm

Attributes

Package length (cm): 16.3 | Package width (cm): 11.1 | Package height (cm): 5.9 | Gross weight (kg): 0.244000 | EAN: 3660058302869
