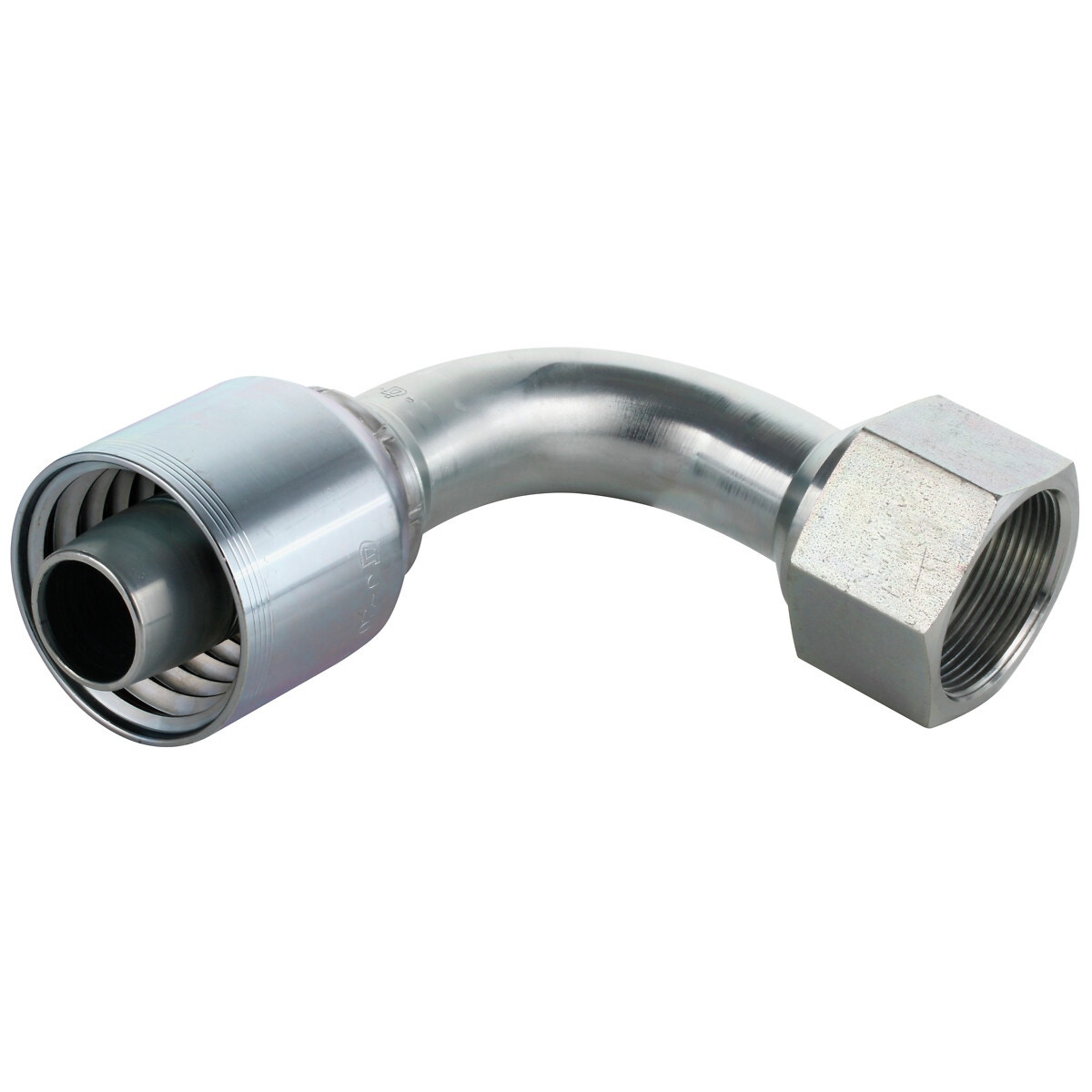

Šļūtenes savienojums jic 1.1/16-5/8 90 iekšējā vītne

Description

one piece hydraulic hose coupling with pre-compressed ferrule, suitable for 1-,2-,3- and 4-wire braid/spiral hoses | 90° angle / female thread / JIC sealing cone 37° | thread UN 1 1/16" -12 | A: 48,5 mm | B: 13,8 mm | D: 47,5 mm | CH: 32 mm | hose size -10 | hose DN 16 | hose inner Ø 5/8" | hose inner Ø 15,87 mm

Attributes

Hose inner Ø (mm): 16 | Hose inner Ø (mm): 16.00 | Hose inner Ø (inch): 5/8" | Thread: UN 1 1/16" -12 | Package length (cm): 8.5 | Package width (cm): 11.5 | Package height (cm): 4 | Gross weight (kg): 0.322000 | EAN: 6418914888081
