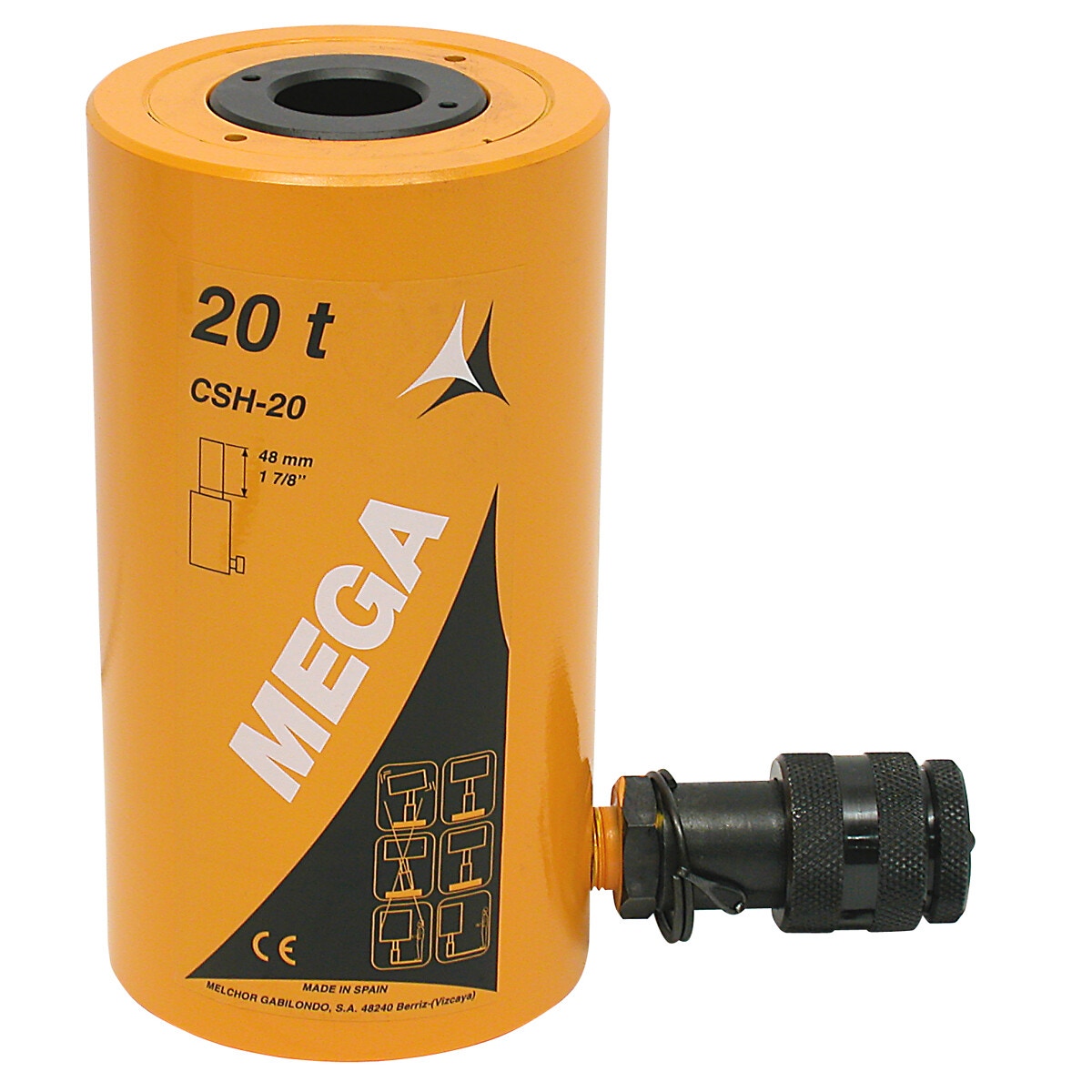

Hidrauliskais cilindrs 20 t mega
600 €
✓ Pieejams
Description
single-acting, spring-return | hole model | suitable for pushing and pulling, with mounting holes and threaded areas for easy coupling or special tooling applications | suitable for installation work | max. capacity 196,6 kN | effective area 28,86 cm2 | oil volume 140 cm3 | measurements: A (stroke) 48 mm / B 175 mm / C 220 mm / D 92 mm / E 70 mm / F 50,5 mm / G M37x1,5 / H 82,6 mm / I 3/8-16 UNC / J 70 mm / K 20 mm / N 20 mm / Q 26,5 mm | weight 13 kg
Attributes
Package length (cm): 25 | Package width (cm): 18 | Package height (cm): 12 | Gross weight (kg): 7.800000 | EAN: 6418914701700
