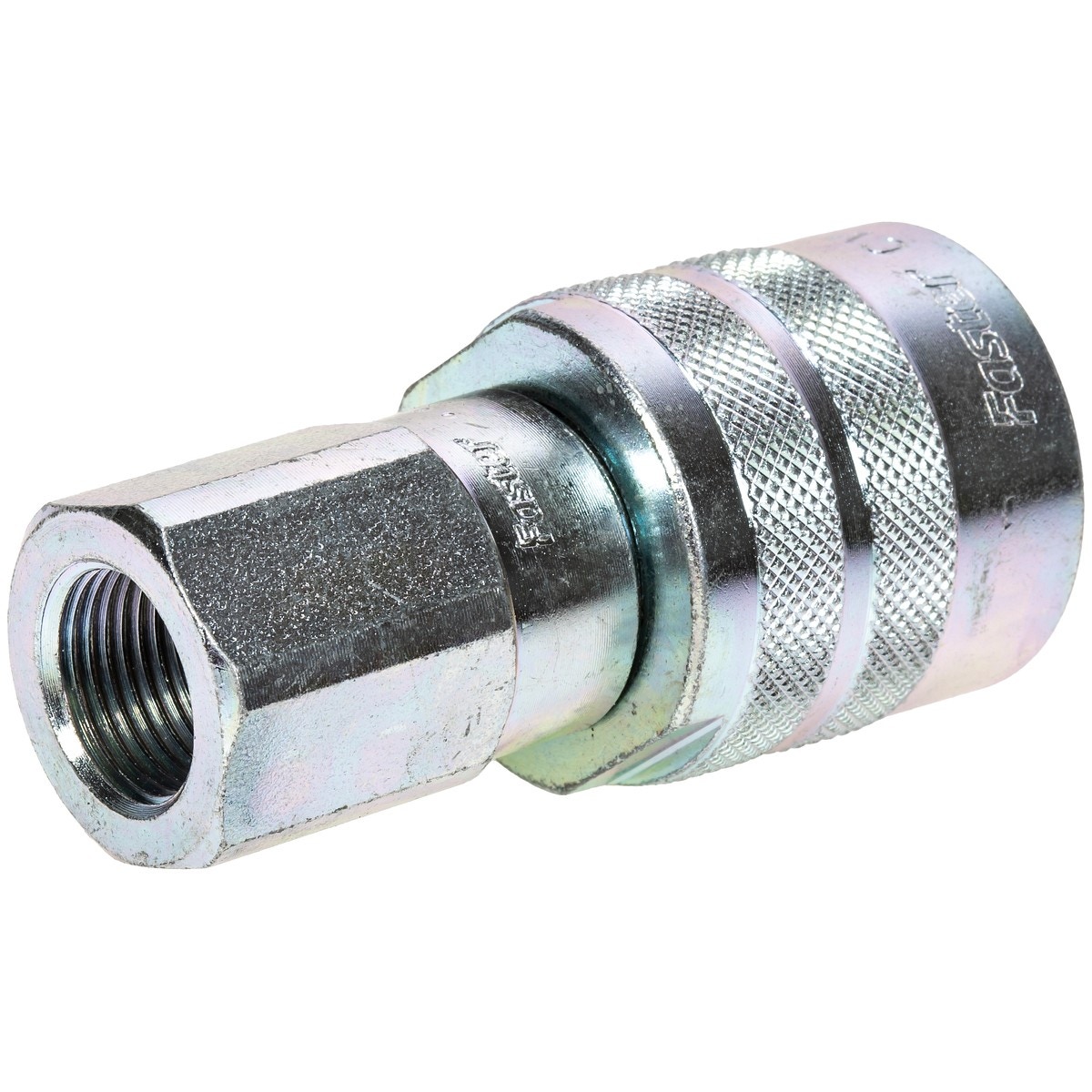

SKRŪVVEIDA ĀTRUZMAVA CVV VĪRIETIS 1/4″ BSP

Description

Faster high quality screw-to-connect quick coupling | compatible with ISO 14541 standard such as Argus HDK, DNP PVV3, Stucchi VD | the coupling is highly resistant to vibration and pulsating pressure, making it suitable for demanding applications | possible to connect under residual pressure | material steel | NBR seals | working temperature range -25…+125 °C | size 1/4" | operating pressure 370 bar | flow 13 l/min | explosion pressure 1500 bar | A female G 1/4"-19 | B 63 mm | D 30 mm | X 19 mm

Attributes

Thread: G 1/4" -19 | Package length (cm): 6.3 | Package width (cm): 3 | Package height (cm): 3 | Gross weight (kg): 0.131000 | EAN: 6418914236332
