SKRŪVJU ĀTRĀ SAVIENOŠANA SIEVIEŠU 1″ BSP ĀTRĀK

Description

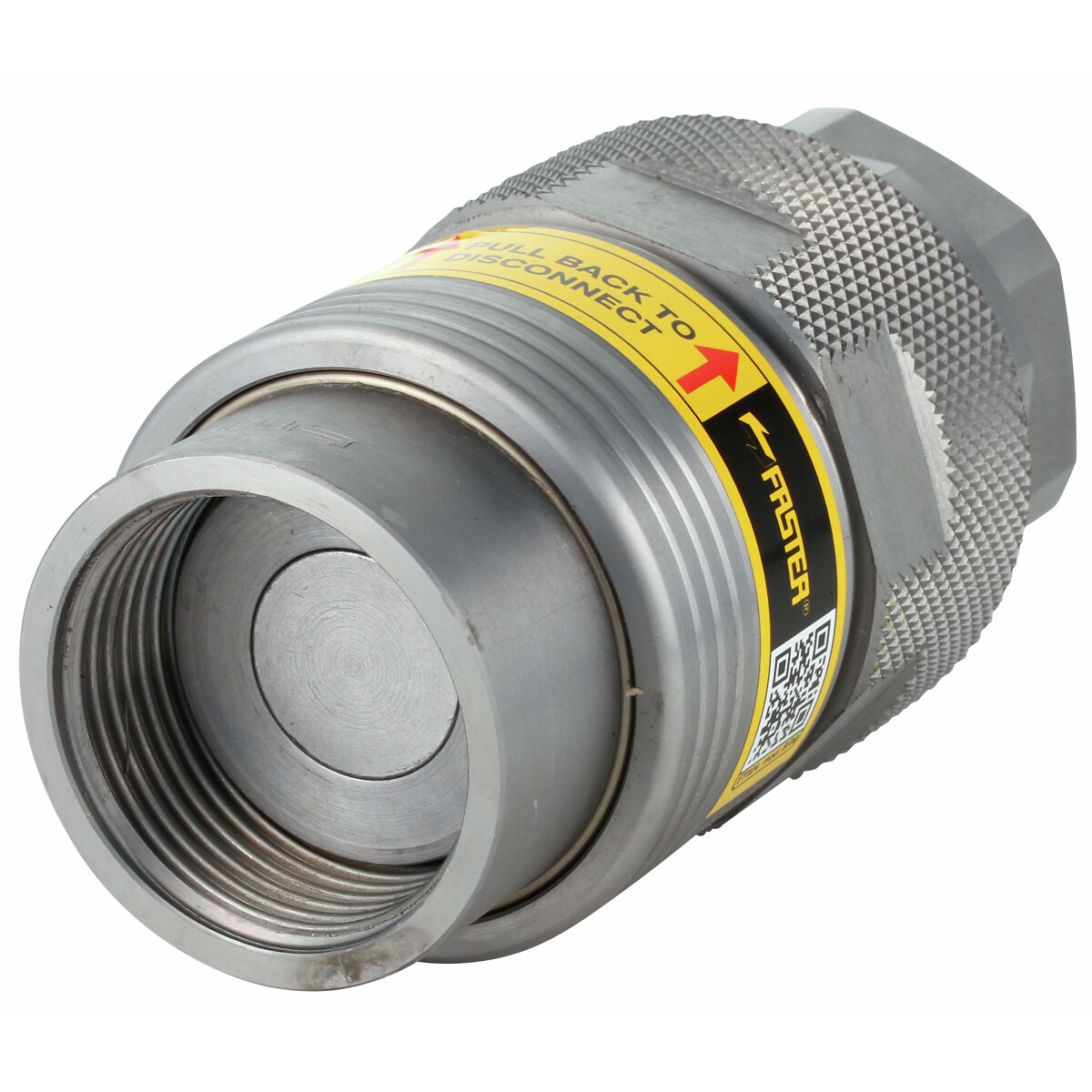

screw-on flat-face quick coupling with locking ring, the green ring indicates when the mating parts are correctly connected | very high quality and solid coupling for dynamic loads | suitable for high pressures and hard pressure shocks, especially in applications with high pulsating pressure and/or external vibrations, such as excavators, impact hammers, demolition equipment and various industrial applications | the zinc-nickel plating guarantees a remarkable resistance to corrosion | connection / disconnection allowed under pressure | no spillage during connection and disconnection | working pressure max. 530 bar | flow rate 200 l/min | bursting pressure min. 1400 bar | A thread 1" BSP female | B 138 mm | L 240 mm | D 74 mm | X 55 mm | J 70 mm

Attributes

Thread: G 1" -11 | Package length (cm): 7.4 | Package width (cm): 13.7 | Package height (cm): 7.4 | Gross weight (kg): 2.523000 | EAN: 6418914892330
