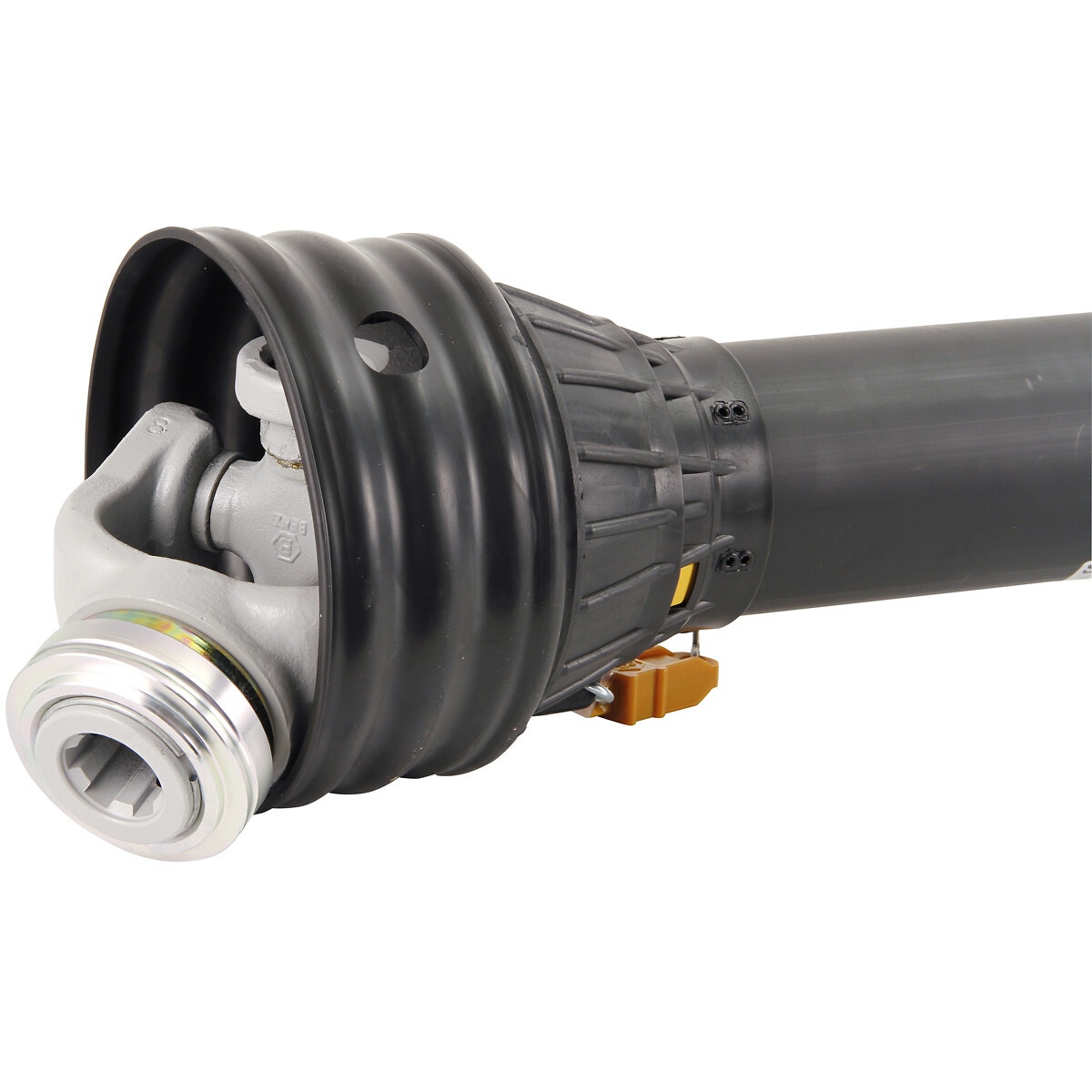

Puto vārpsta v08 1510mm 1.3/8-6 std 1.3/4-6 evo

Description

type: V08 (B108) | outer yoke tractor end: 1.3/8”-6Z collar locking | outer yoke implement end: 1.3/4”-6Z push-pin | power 540 rpm: 77 kW / 105 hv / 1365 Nm | power 1000 rpm: 119 kW / 162 hv / 1142 Nm | max. static load for tubes: 3000 Nm | length: L 1510 mm, M min. 1775 mm, M max. 2530 mm | cross: A/B: 35 x 106,5 mm | inner tube: star profile A 51 mm, B 37 mm | outer tube: star profile A 61 mm, B 47 mm, S 4,5 mm | maintenance interval even 50 hours | instructive objects of use: trailers, snow blowers, mulchers, wood chippers, peat production machines etc.

Attributes

Universal joint size: 35 x 106,5 mm | Spline type: 1 3/8" Z6, 1 3/4" Z6 | Profile tube type: Star | Package length (cm): 180 | Package width (cm): 20.5 | Package height (cm): 20.5 | Gross weight (kg): 34.650000 | EAN: 6418914870604
