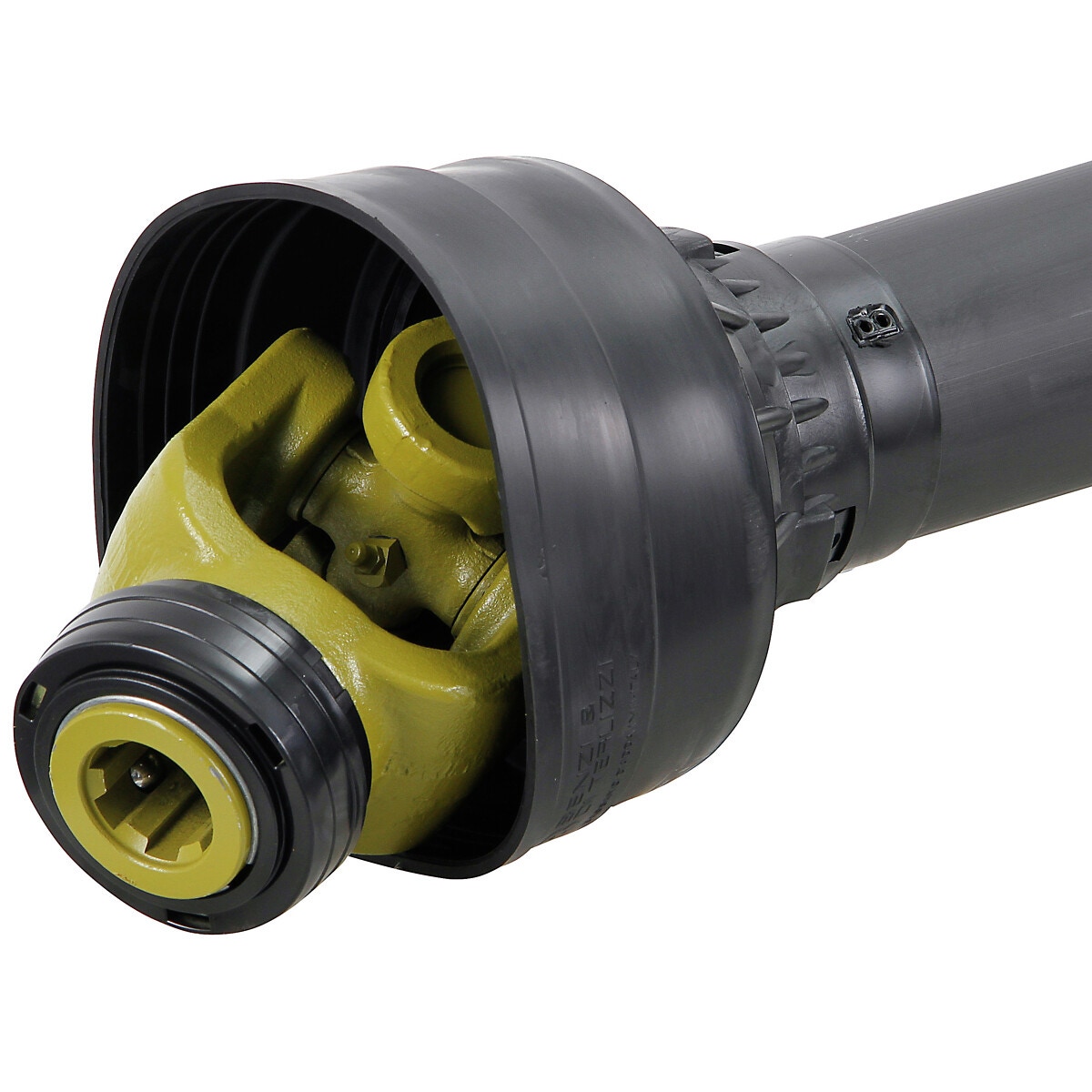

Puto vārpsta b106 1.3/8-6

Description

type: B06 (106) | splines: 6 | power 540 rpm: 47 kW / 64 hp / 830 Mn | power 1000 rpm: 74 kW / 100 hp / 710 Mn | length: L 860 mm, M min. 1095 mm, M max 1525 mm | A/B: 30,2 x 92 mm | A 45 mm, S 4 mm | A 54 mm, S 4 mm | max. static load limit: 1450 Nm | instructional targets of use: trailers, snow blowers, sprinkler pumps, mills, portable circular saws, choppers, balers, disc and drum movers, cutters, peat machines | basis of calculation: joint angle 5°, life 1000 h

Attributes

Universal joint size: 30,2 x 92 mm | Spline type: 1 3/8" Z6 | Profile tube type: Triangular | Package length (cm): 112 | Package width (cm): 18 | Package height (cm): 18 | Gross weight (kg): 19.160000 | EAN: 6418914648517
