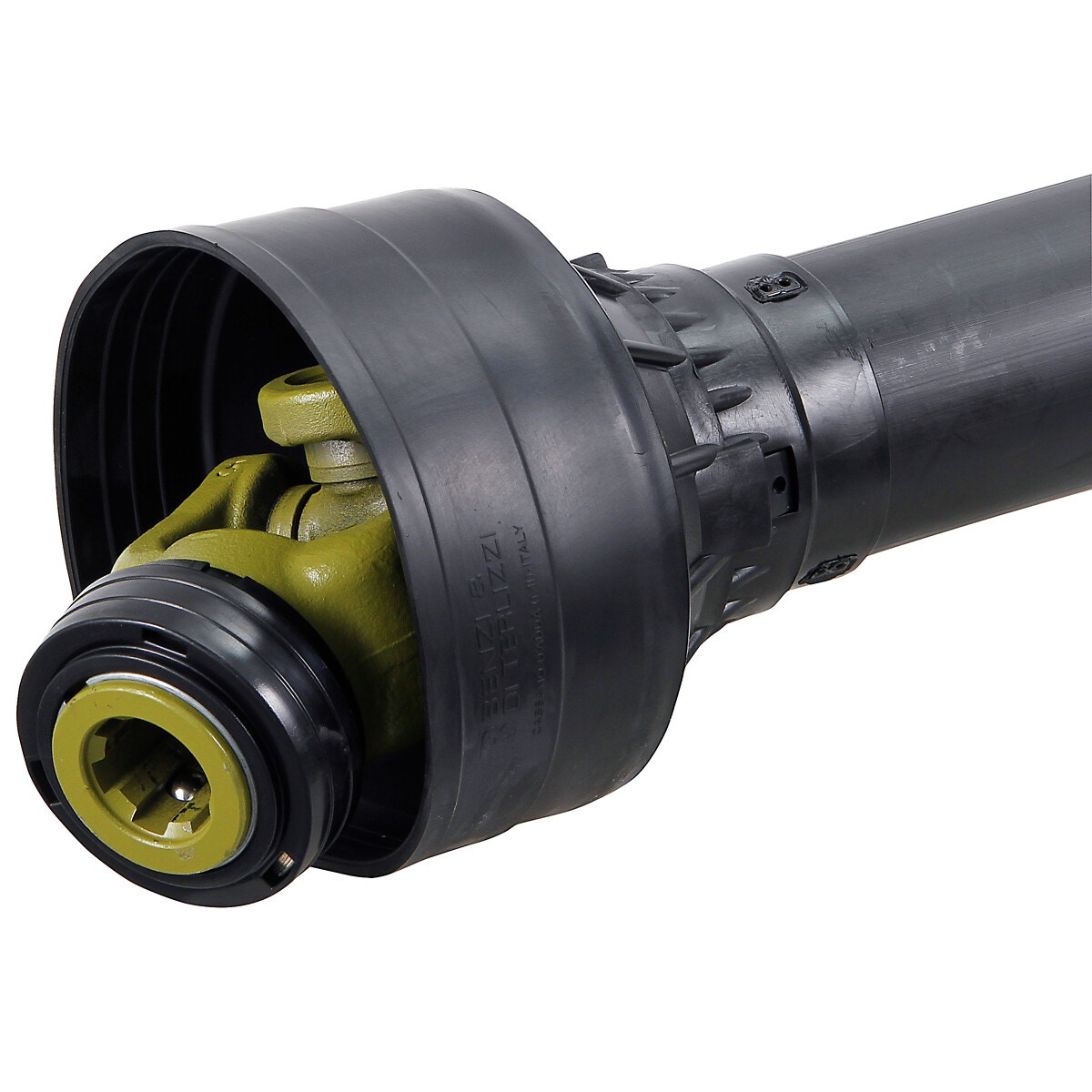

Puto vārpsta b105 garā 1.3/8-6

Description

type: B05 (105) | splines: 6 | power 540 rpm: 35 kW / 47 hp / 620 Mn | power 1000 rpm: 54 kW / 74 hp / 520 Mn | length: L 1210 mm, M min. 1434 mm, M max 1964 mm | A/B: 30,2 x 80 mm | A 45 mm, S 4 mm | A 51,6 mm, S 3 mm | max. static load limit: 1050 Nm | instructional targets of use: trailers, snow blowers | basis of calculation: joint angle 5°, life 1000 h

Attributes

Universal joint size: 30,2 x 80 mm | Spline type: 1 3/8" Z6 | Profile tube type: Triangular | Package length (cm): 143 | Package width (cm): 18 | Package height (cm): 18 | Gross weight (kg): 14.860000 | EAN: 6418914648456
