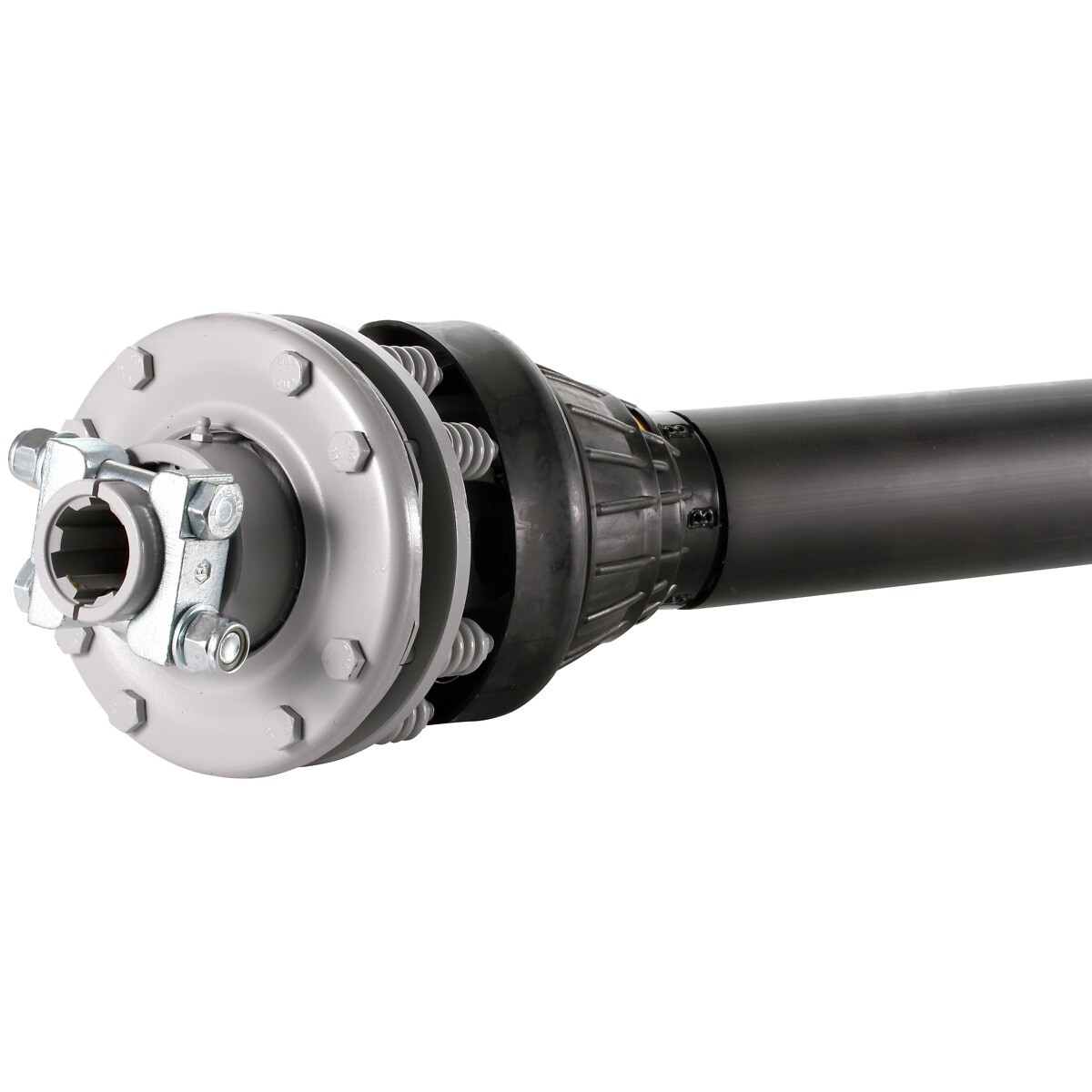

Pto vārpsta v08 1.3/8-6 berzes/pārslēgšanās 1.3/4-6
1115 €
✓ Pieejams
Description
type: V08 (B108) | outer yoke tractor end: 1.3/8”-6Z collar lock | outer yoke implement end: 1.3/4"-6Z collar lock, FF4 shear bolt clutch/overrunning clutch | power 540 rpm: 77 kW / 105 hv / 1365 Nm | power 1000 rpm: 119 kW / 162 hv / 1142 Nm | max. static load for tubes: 3000 Nm | length: L 860 mm, M min. 1190 mm, M max. 1620 mm | truss: A/B: 35 x 106.5 mm | inner tube: star profile A 51 mm, B 37 mm | outer tube: star profile A 61 mm, B 47 mm, S 4.5 mm | maintenance interval up to 50 hours | suggested applications: trailers, snow blowers, mulchers, wood chippers, peat production machines, etc.
Attributes
Universal joint size: 35 x 106,5 mm | Spline type: 1 3/8" Z6, 1 3/4" Z6 | Profile tube type: Star | Package length (cm): 120.5 | Package width (cm): 21 | Package height (cm): 21 | Gross weight (kg): 37.000000 | EAN: 6418914870727
